HUBBELL LIGHTING SCARAB LED 12V Installation Instructions

16555 East Gale Avenue
City of Industry, CA 91745-1788
626/968-5666 • FAX 626/968-5716
SCARAB LED 12V Installation Instructions
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS: Do not overdrive fixtures with
!
greater than 12 volts or fixture over-heating and short lamp life will occur. Do not overload the
transformer by installing (or relamping) higher wattage lamps than planned. Note: Total wattage of all lamps
connected to one transformer must not exceed the capacity of that transformer. Do not install luminaire
within 10 feet (3.04m) of a pool, spa or fountain.
SAFETY WARNING: When relamping, be sure electrical supply is OFF. Particular care should be
!
taken not to locate fixtures where small children can reach them if higher wattages are used.
NOT INTENDED FOR INDOOR USE.
MAINTENANCE: To maintain light efficiency and prevent fixture-overheating, glass lenses and enclosure
must be kept clean and free of dirt, dust, leaves, trash (combustible materials) and mineral deposits from
water. DO NOT operate luminaire with missing or damaged lens.
Tools Required: Phillips Screwdriver
q
Adjustable Wrench
q

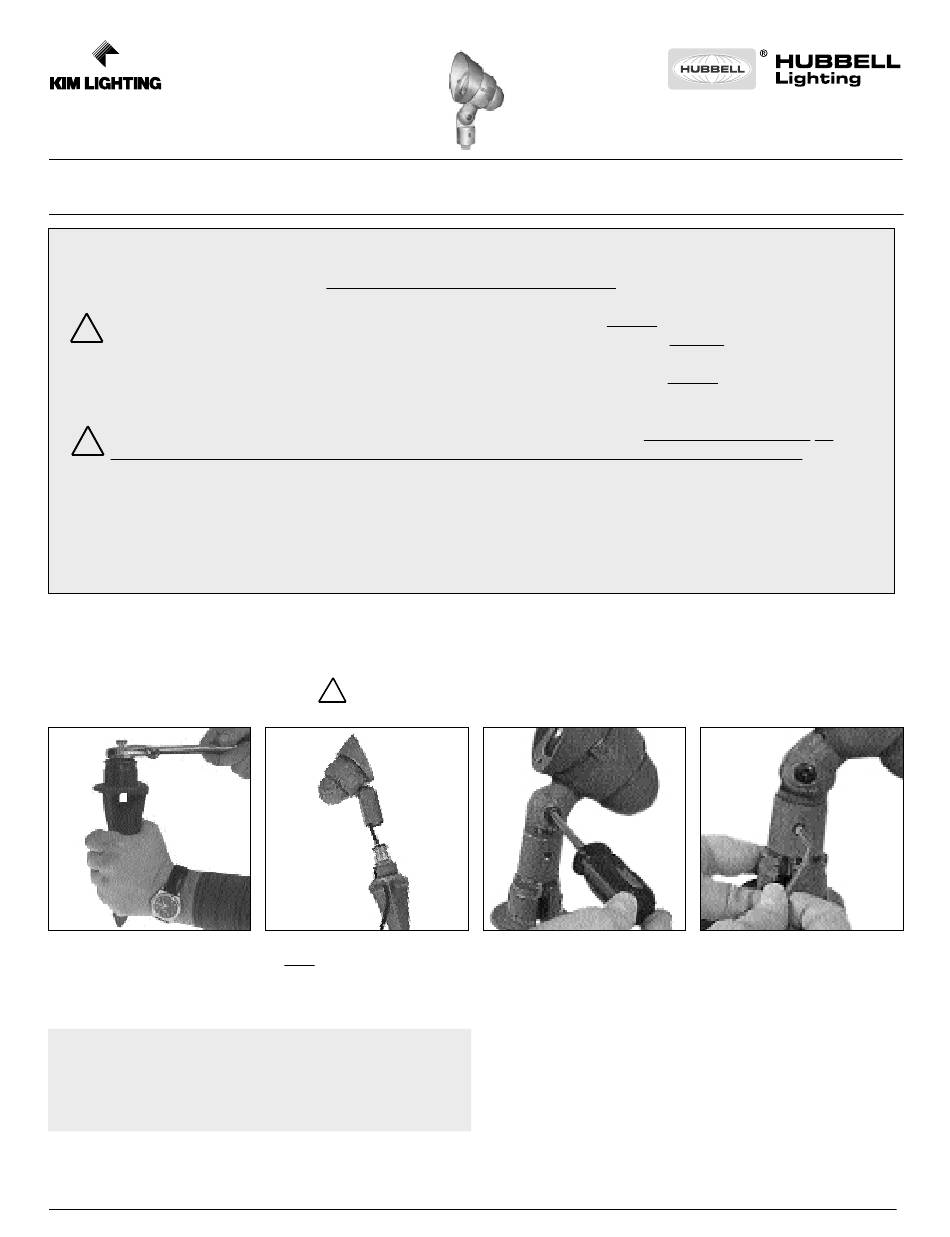

INSTALLATION INSTRUCTIONS:
1. Tighten coupling onto
mounting device* .
IMPORTANT: Do not overload the transformer by installing
higher wattage fixtures than planned. The total wattage of all
fixtures connected to one transformer must not exceed the
capacity of that transformer.
*Consult Kim Landscape Lighting Collection Catalog for mounting device options.
3/24/14 EC 140326006
KLVL711
KLVL716
IMPORTANT SAFETY INSTRUCTIONS!
q
q
Make certain the electrical supply is OFF before starting installation.
!
2. Install fixture onto coupling.
Note: Kim "KLV" Mounting
Options can be installed
before fixture is installed.
Status A
1/8" Hex Wrench
Silicone Grease
3. Loosen screw, adjust fixture
angle, and tighten screw.
Additional wire and connectors may be purchased
from Kim Lighting:
KLV427 #12-2 Cable
KLV410 Connector
Flatblade Screwdriver
q
3. Loosen setscrew, adjust
fixture rotation, and tighten
setscrew.
LV432 #8-2 Cable
KLV411 Connector
Part No. 93049433
