E2S MC1X05-T Series Instructions/Service Manual

INSTRUCTION & SERVICE MANUAL

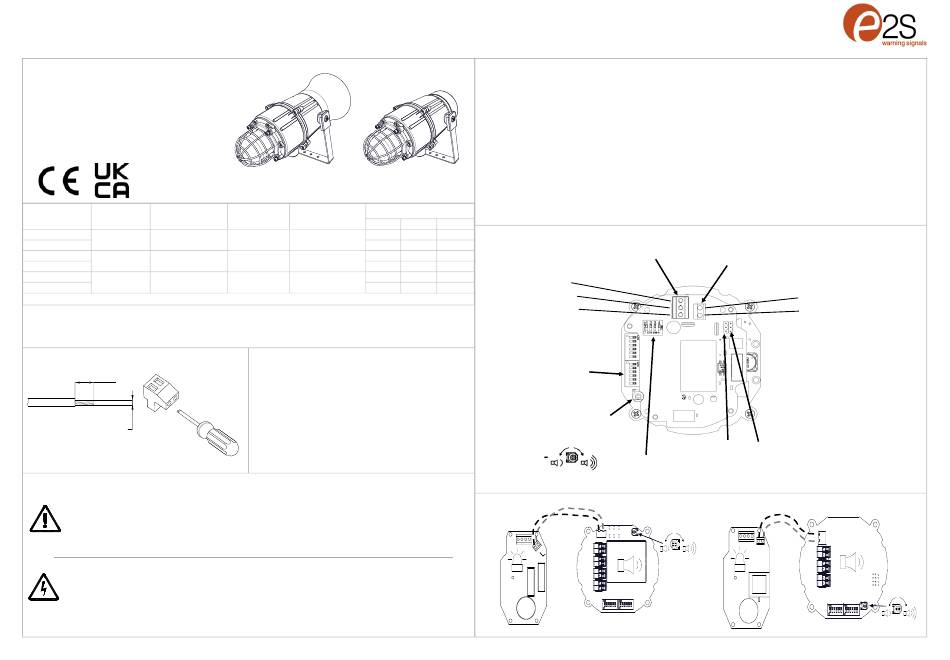

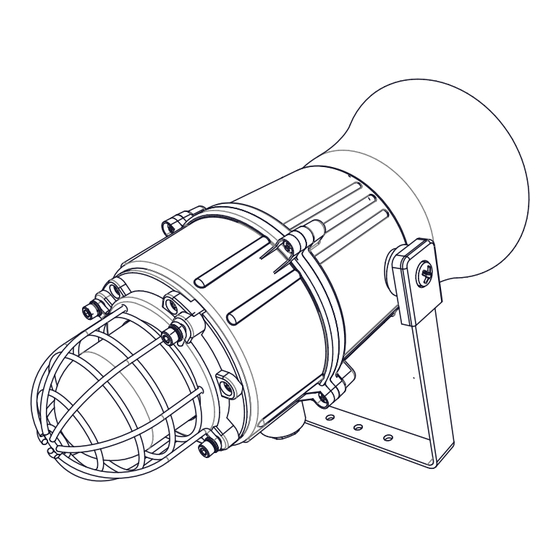

MC1X05-T M Range Combined Sounder Xenon Beacons with Relay / Telephone Initiate
•
IP67/66 & Type 4/4X/13
•
-40°C to +66°C (-40°F to +151°F)
•
3Kg (6.5lb)
•
CE, UKCA, EAC & Russian Maritime Register approved
Nominal
Unit Type Code Voltage Range
Voltage
MC1X05FDC024-T
24 Vdc 20-28 Vdc
MC1X05RDC024-T
MC1X05FAC115-T
115 Vac ±10%
115 Vac
50/60Hz
MC1X05RAC115-T
MC1X05FAC230-T
230 Vac ±10%
230 Vac
50/60Hz
MC1X05RAC230-T
†
*Max = Tone 4 / Nominal = Tone 44 / ‡ x̄ = Average over 64 tones
5mm
0.5 2.5mm
Use suitable conduit or cable glands
with suitable IP or type rating
Attention
: Installation must be carried out by an electrician in compliance with the latest codes and regulations.
Attention
: L'installation doit être effectuée par un électricien conformément aux derniers codes et réglementations.
Achtung
: Die Installation muss von einem Elektriker gemäß den neuesten Vorschriften und Bestimmungen durchgeführt werden.
Attenzione
: L'installazione deve essere eseguita da un elettricista in conformità con i codici e le normative più recenti.
Atención
: La instalación debe ser realizada por un electricista de acuerdo con los últimos códigos y regulaciones.
Atenção:
A instalação deve ser realizada por um eletricista de acordo com os códigos e regulamentos mais recentes.
Внимание
: установка должна выполняться электриком в соответствии с последними нормами и правилами.
Attention
: Disconnect from power source before installation or service to prevent electric shock
Attention
: Débranchez-le de la source d'alimentation avant l'installation ou l'entretien pour éviter tout choc électrique.
Achtung
: Vor Installation oder Wartung von der Stromquelle trennen, um einen Stromschlag zu vermeiden.
Attenzione
: scollegare dall'alimentazione prima dell'installazione o dell'assistenza per evitare scosse elettriche.
Atención
: desconéctelo de la fuente de alimentación antes de la instalación o el servicio para evitar descargas eléctricas.
Atenção:
Desconecte da fonte de alimentação antes da instalação ou serviço para evitar choque elétrico
Внимание
: отключите от источника питания перед установкой или обслуживанием, чтобы предотвратить поражение электрическим током.
E2S Warning Signals
Impress House, Mansell Road, Acton, London W3 7QH
MC1X05F MC1X05R
Nominal
Sound Pressure Level, dB(A)
Nominal Sounder
Beacon
Current
Current Max*
116.6
300mA 224mA
113.6
116.6
140mA 100mA
113.6
116.6
55mA 64mA
113.6
0.4Nm
sales@e2s.com e2s.com
Relay / Telephone Inputs and Settings
Power Input Terminal for AC & DC Wiring
A suitable power supply (DC or AC voltage) cable should enter via one of the M20 entries and is to be connected to terminal TB1 (see Fig. 5
below). This provides the alarm horn sounder with continuous power.
DC Unit option: Connect the alarm horn sounder power input (+) to the (L/+) terminal (TB1) and power input (-) to the (N/-) at terminal (TB1).
AC Unit option: Connect the alarm horn sounder power input (L) to the (L/+) terminal (TB1) and power input (N) to (N/-) also an earth/
ground input to the (E) terminal (TB1).
Please note: the earth/ground terminal of TB1 provides termination only for an earth/ground cable. Refer to section 8.3.
For AC and DC voltage wiring diagrams see document D250-06-001
Nom ‡
.†
x̄
113.7 112.7
110.7 109.7
113.7 112.7
110.7 109.7
113.7 112.7
E
110.7 109.7
L/+
Sounder Tone
DIP Switch S1
Sounder Volume
Prewired terminals from Sounder part to beacon
AC
Page 1 of 3
TB2 Relay /
TB1 Power Supply
Terminal Telephone
H2 H1
Header Header
Relay / Telephone
A or B DC or Telephone
Latch Duration
Setting
DC
L
L +
/
+
L
/
+
Activate
10-60 /
Tel
+
+
+
D207-00-581-IS_Issue_1 - 16/05/2023
