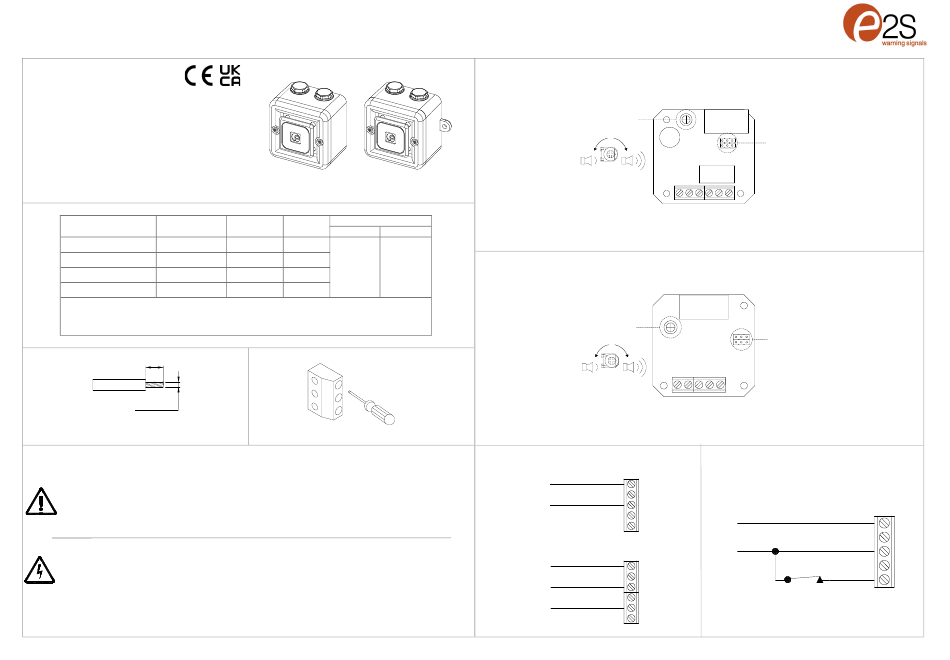

INSTRUCTION & SERVICE MANUAL

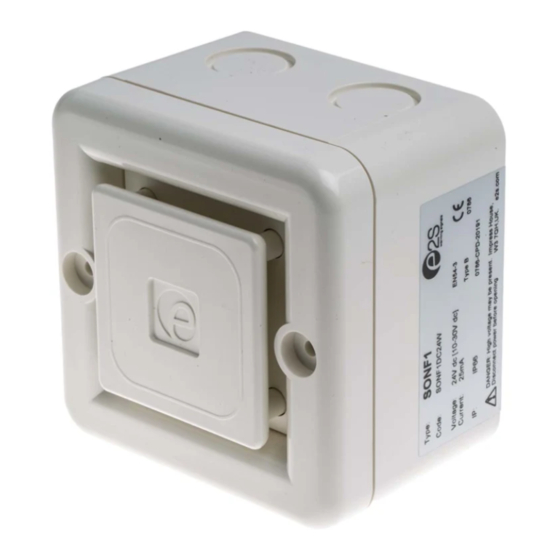

SONF1 Range - Alarm Horn Sounder
•
Type 3R / 13, IP66
•
-40°C to +55°C (-40°F to +131°F)
•
0.30Kg (0.66lbs)
•
CE, UKCA, EAC & Russian Maritime Register Approved
•
UL / cULus Approved for General Signalling
•
VdS Approved (24vdc Only)
•
MED Approved (24vdc Only)
Note: MED Version not available with UL/ cULus Approval
Model No. Nominal Voltage
SONF1DC024[X]...[Y] 24V dc
SONF1AC024[X]...[Y] 24V ac 50/60Hz
SONF1AC115[X]...[Y] 115V ac 50/60Hz
SONF1AC230[X]...[Y] 230V ac 50/60Hz
*Current at nominal voltage on Tone 2
[X] Denotes Backbox Type: S = Sonora; M = Multi (with Lugs)
[Y] Denotes Housing Colour: R = Red; G = Grey; W = White
5
0.5 1.5mm
Use suitable conduit or cable glands with
suitable IP or type rating
Attention: Installation must be carried out by an electrician in compliance with the latest codes and regulations.
Attention: L'installation doit être effectuée par un électricien conformément aux derniers codes et réglementations.
Achtung: Die Installation muss von einem Elektriker gemäß den neuesten Vorschriften und Bestimmungen durchgeführt werden.
Attenzione: L'installazione deve essere eseguita da un elettricista in conformità con i codici e le normative più recenti.
Atención: La instalación debe ser realizada por un electricista de acuerdo con los últimos códigos y regulaciones.
Atenção: A instalação deve ser realizada por um eletricista de acordo com os códigos e regulamentos mais recentes.
Внимание: установка должна выполняться электриком в соответствии с последними нормами и правилами.
Attention: Disconnect from power source before installation or service to prevent electric shock
Attention: Débranchez-le de la source d'alimentation avant l'installation ou l'entretien pour éviter tout choc électrique.
Achtung: Vor Installation oder Wartung von der Stromquelle trennen, um einen Stromschlag zu vermeiden.
Attenzione: scollegare dall'alimentazione prima dell'installazione o dell'assistenza per evitare scosse elettriche.
Atención: desconéctelo de la fuente de alimentación antes de la instalación o el servicio para evitar descargas eléctricas.
Atenção: Desconecte da fonte de alimentação antes da instalação ou serviço para evitar choque elétrico
Внимание: отключите от источника питания перед установкой или обслуживанием, чтобы предотвратить поражение
электрическим током.
E2S Warning Signals
Impress House, Mansell Road, Acton, London W3 7QH
SONF1
Sound Pressure Level dB(A)
Nominal
Voltage Range
Current
Max Nominal
10-30V dc 25mA*
+/- 10% 40mA
100.0 @ 1m 99.0 @ 1m
91.0 @ 3m 90.0 @ 3m
+/- 10% 27mA
+/- 10% 39mA
0.4Nm
Terminal Connections
sales@e2s.com e2s.com
AC
See D242-06-001
Volume
Control
DC
See D242-06-001
Volume
Control
AC & DC Single Stage Operation
+
-
E
N
L
Page 1 of 2
Tone
Settings
E E N N L L
Tone
Settings
+ + - - S2
DC Two Stage Operation
Stage 1: Apply power +ve and –ve
+
Stage 2: Apply power +ve and –ve and connect S2 to –ve
+
-
-
+
-
E
E
N
N
L
L
Note: Stage 2 is not VdS Approved
D242-00-001-IS_Issue_4 - 28/10/2022
+
+
-
-
S2
