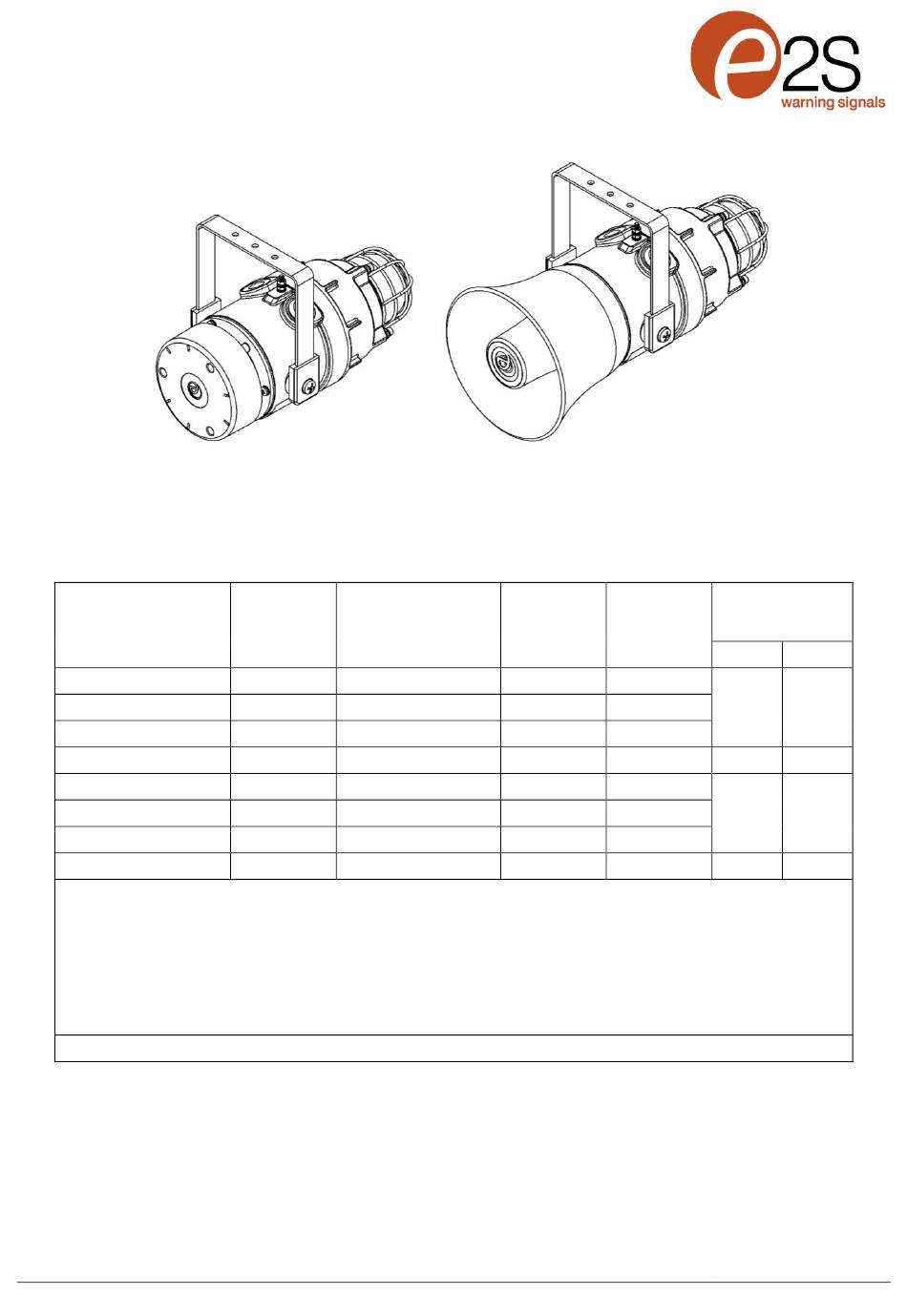

INSTRUCTION MANUAL (ATEX / IECEx)
STExC1

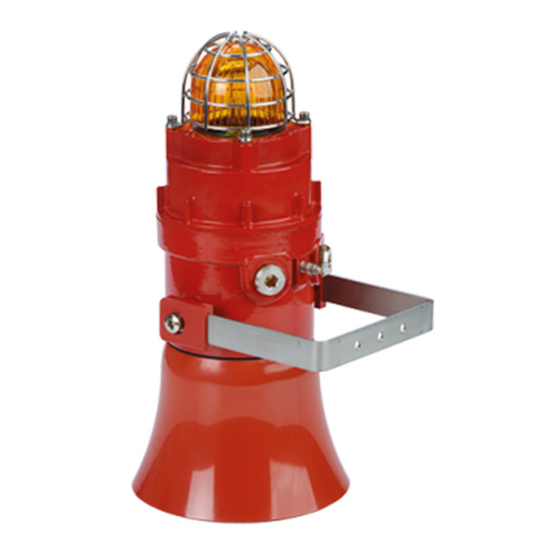

Combined Sounder & Beacon
For use in Flammable Gas and Dust Atmospheres
1) Product Table
Unit Type Code
STExC1X05RDC012
STExC1X05RDC024
STExC1X05RDC048
STExC1X05RAC230
STExC1X05FDC012
STExC1X05FDC024
STExC1X05FDC048
STExC1X05FAC230
*Max = Tone 4
†
Nom. = Tone 44
‡
x ̄ = Average over 64 tones
The table shows the input current taken by the various sounders.
Supply voltage variation of +/-10% outside the voltage range is permissible.
The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage.
Nominal current at nominal voltage and 1Hz flash rate.
Max rated current at worst case supply voltage.
Table 1 – Product table
Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable size,
length and quantity of beacons on each circuit.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D199-00-601-IS
STExC1X05R
Nominal
Voltage Range
Input Voltage
12Vdc
11.5-14Vdc
24Vdc
20-28Vdc
48Vdc
42-54Vdc
230Vac
220-240Vac 50/60Hz
12Vdc
11.5-14Vdc
24Vdc
20-28Vdc
48Vdc
42-54Vdc
230Vac
220-240Vac 50/60Hz
Issue 4
17-01-22
STExC1X05F
Nominal
Max.
Input Current
Current
885mA
1,002mA
508mA
555mA
325mA
427mA
127mA
149mA
885mA
1,002mA
508mA
555mA
325mA
427mA
127mA
149mA
www.e2s.com
Sound
Pressure Level
dB(A)
.†
Max*
Nom
109
101
109
101
115
109
115
109
Tel: +44 (0)208 743 8880
Sheet 1 of 8
Advertisement
Related Manuals for E2S STExC1
Summary of Contents for E2S STExC1
- Page 1 INSTRUCTION MANUAL (ATEX / IECEx) STExC1 Combined Sounder & Beacon For use in Flammable Gas and Dust Atmospheres STExC1X05R STExC1X05F 1) Product Table Sound Pressure Level Nominal Nominal Max. Unit Type Code Voltage Range dB(A) Input Voltage Input Current Current .†...
- Page 2 All units have a rating label, which carries the following Group IIC Hydrogen and Acetylene important information. Temperature Classification for Gas Applications Products may have further approvals, see E2S website for further details. ATEX / IECEx Ratings Standards (up to 70ºC ambient) EN IEC 60079-0:2018 / IEC60079-0:2017 (Ed 7): 100ºC...
-
Page 3: Special Conditions Of Safe Use
To access the Ex d chamber, loosen the M4 grub screw on the sounder cover. Open the European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-601-IS... - Page 4 Any unused cable entries must be closed with suitably rated and ATEX / IECEx certified blanking plugs. Figure 6: STExC1 Entries and Terminal Block Location. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.
- Page 5 They can be wired in separately by removing the link wires. See D190-06-201 (DC) and D190-06-205 (AC) for wiring details. Figure 7: DC PCBA SPL Configuration. Figure 10: STExC1 Sounder Terminal and Beacon Terminal Linked. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.
- Page 6 Figure 13: DC Flash Settings. Figure 14: AC Flash Settings. Flip-Flop Mode not available on STExC1X05. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-601-IS Issue 4 17-01-22...
- Page 7 See document D190-06-205 Single Stage Configuration Three/Four Stage Configuration Table 3: Summary of Wiring Options. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-601-IS Issue 4 17-01-22 Sheet 7 of 8...
-
Page 8: Maintenance, Overhaul And Repair
Figure 11: Removal of Lens. damp cloth. Remove the guard and replace the old lens with the new lens. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-601-IS Issue 4... - Page 9 WRITTEN CONSENT. IMPRESS HOUSE 19/01/2022 B.ISARD STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE ALERTALARM RANGE WWW.E2S.COM D190-06-201 NTS 1 19/01/2022 R.N.POTTS...
- Page 10 XENON WIRING DIAGRAMS WRITTEN CONSENT. IMPRESS HOUSE 19/01/2022 B.ISARD STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE ALERTALARM RANGE WWW.E2S.COM D190-06-201 19/01/2022 R.N.POTTS...
- Page 11 Not to be used for reverse polarity monitoring Stage 1: Apply Power to Stage 1 +ve & Stage 1 -ve Stage 1: Apply Power to Stage 2 +ve & Stage 2 -ve CUSTOM CONFIGURATION CONTACT E2S WHEN ORDERING Stage 1 +ve Stage 1 -ve Stage 2 +ve...
- Page 12 XENON WIRING DIAGRAMS WRITTEN CONSENT. IMPRESS HOUSE 19/01/2022 B.ISARD STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE ALERTALARM RANGE WWW.E2S.COM D190-06-201 19/01/2022 R.N.POTTS...
- Page 13 XENON WIRING DIAGRAMS WRITTEN CONSENT. IMPRESS HOUSE 19/01/2022 B.ISARD STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE ALERTALARM RANGE WWW.E2S.COM D190-06-201 19/01/2022 R.N.POTTS...
- Page 14 Stage 1: Apply Power to Stage 2 +ve & Stage 2 -ve -ve IN +ve IN -ve OUT +ve OUT CUSTOM CONFIGURATION CONTACT E2S WHEN ORDERING Stage 1 +ve Stage 1 -ve Stage 2 +ve Stage 2 -ve Cut Link W1...
- Page 15 WRITTEN CONSENT. IMPRESS HOUSE 19/01/2022 B.ISARD STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE ALERTALARM RANGE WWW.E2S.COM D190-06-205 NTS 1 19/01/2022 R.N.POTTS...
- Page 16 WRITTEN CONSENT. IMPRESS HOUSE 19/01/2022 B.ISARD STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE ALERTALARM RANGE WWW.E2S.COM D190-06-205 NTS 2 19/01/2022 R.N.POTTS...
- Page 17 2400Hz Motor Siren (f=2400, a=1.7) 0 1 1 1 1 1 1450Hz 0.25s Simulated Bell 1 1 1 1 1 1 0.69ms E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH sales@e2s.com e2s.com Page 1 of 1 D221-95-001-IS_Issue_A - 09/03/2021...
-
Page 18: Eu Declaration Of Conformity
Notified Body No.: 0539 Borupvang 5A, 2750 Ballerup, Denmark EU‐type Examination Certificate (Module B): DEMKO 16ATEX1466X Notified Body for Quality Assurance Notification / Conformity to EU‐type Sira Certification Service based on Notified Body No.: 2813 quality assurance of the production process (Module D): CSA Group Netherlands B.V, Utrechtseweg 310, 6812 AR, Arnhem, Netherlands Quality Assurance Notification (Module D): SIRA 05 ATEX M342 Provisions fulfilled by the equipment: II 2G Ex db IIC T6…T3 Gb II 2D Ex tb IIIC T82°C…T137°C Db IP6X Dust Protection to EN60079‐0 / EN60079‐31 Standards applied: EN IEC 60079‐0: 2018 EN 60079‐1: 2014 EN 60079‐31: 2014 Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC) Standards applied: EN 61000‐6‐1:2007 EN 61000‐6‐2:2005 EN 61000‐6‐3:2007 / A1:2011 / AC: 2012 EN 61000‐6‐4:2007 / A1: 2011 Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic equipment, including amendment by Directive 2015/863/EU. Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) The product and all the components contained within it are free from substances of very high concern. Other Standards and Regulations EN 60529:1991 / A1:2000 / A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐070_Issue_G (STEx).docx ‐ Page 1 of 2 ‐ QAF_252_Issue_5... - Page 19 EU Declaration of Conformity On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms with all technical and regulatory requirements of the above listed directives, regulations and standards. This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC‐070_Issue_G Quality Assurance Manager Date and Place of Issue: London, 03/12/2021 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐070_Issue_G (STEx).docx ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
