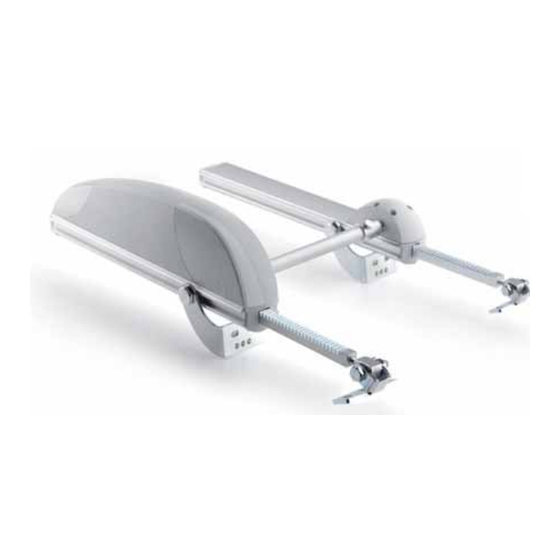

Summary of Contents for Comunello Airwin A65
-
Page 2: Table Of Contents
CONTENTS OF MANUAL General Information page 3 Introduction to this manual page 3 Safety page 3 Technical Data page 5 Table of technical data and CE mark page 5 Actuator page 6 Types of power supply page 6 Calculation of the force necessary page 6 Pack and tools required for assembling the actuator page 6... -
Page 3: General Information
Improper use or incorrect operation, fitting or assembly can damage the system as well as cause injury to people and damage to property. The assembling instructions are available on the official web site http://www.comunello.com 2. SAFETY This installation manual is written exclusively for competent professional personnel. - Page 4 country where the actuator is being installed. Before carrying out any operation (installation, maintenance or repair), isolate the electrical supply before working on the equipment. To ensure complete isolation from the supply current, installation is recommended of a double-pole switch of the approved type. The low-voltage 24 dc actuators must be supplied by suitable power supplies (NOT TRANSFORMERS) of an approved Class II type (double safety insulation) having an output voltage of 24...
-
Page 5: Technical Data
3. TECHNICAL DATA 3.1 Table of technical data and mark The CE mark certifies that the actuator conforms to the essential health and safety requirements laid down by European product directives. The CE mark can be identified by the relevant adhesive label applied to the outside of the product, on which are shown some of the data shown in the following table: Airwin 2W-Net Airwin 2W-Net... -
Page 6: Actuator
4. ACTUATOR 4.1aTypes of power supply The Airwin series of actuators is available in various models in two electrical supply versions: • 230~ can be supplied with mains power 230~ (50/60Hz) (with a tolerance of ±10%), with a three-core supply cable: BLUE, neutral common;... -
Page 7: Installation
5. INSTALLATION Top-hung window: Overall dimensions and fixing holes L=180/336 - 230/336 - 350/646 - 750/846 - 1000/1096 46.5 10 10 53.5 5.1 Installation sequence Check that the force required to open/close it (calculated according to the table under Point 4.2) is less than or equal to that shown in the TECHNICAL DATA table. - Page 8 Top-hung outward opening window: With a pencil, mark the mid-point “X” of the window Type frame. Drill holes in the frame using the measurements shown Accessories to be used on Page 7.
- Page 9 Top-hung outward opening window: Insert the fixing bolts inside the holes prepared in the Fix the brackets and the fixings, using suitable screws. support bracket. Screw the bolts, without tightening them, to the “T”- Insert the actuator into the plates just screwed on. Do shaped plates.
-
Page 10: Mechanical Connection With Bar Of Several Actuators
5.2 Mechanical connection with bar of several actuators On very wide openings, it is possible, having checked the force necessary for opening/closing (calculated according to the table under Section 5.2), to connect in parallel electrical actuators and mechanical spindles to provide several pushing points and ensure correct and constant opening/closing of the window. - Page 11 In the event where the distance between the pushing points, shown as “In”, is different from that indicated in the table below, a longer bar will need to be used, made to the necessary length. Top-hung outward opening window with 2 or more pushing points: Length of the connection bar Distance “In”...
- Page 12 Insert the collar into position, in the actuator or in the drive rack. Insert the cylindrical screw with hexagonal head, and tighten it up.
- Page 13 Insert the connection rod into the collars. Move the connection bar so that the holes match up. Insert the bolts and tighten them up.
-
Page 14: Electrical Connection
5.3 Electrical connection Wire in the apparatus according to the electrical supply required by the actuator (see label on product), following the table below. 230 ~ supply supply Blue Neutral / Common Blue Positive Black Phase / Open Brown Negative Brown Phase /Closed White... -
Page 15: Operating Test
5.4 Operating test Press the control button and close the window, checking that: a. The window is completely closed. If it is not, check that the gap between the window and the frame is bigger than or equal to 0 mm. If necessary, insert spacers so as to obtain the correct gap. b. -
Page 16: Faq (Frequently Asked Questions)
8. FAQ (frequently asked questions) Question Cause Remedy Check the electrical cut-out or safety switch is “On”. No voltage supply A cable may not be connected. With voltage The actuator is not operating supplied | Check the actuator voltage corresponds to voltage supply detected. Check the actuator voltage corresponds to With voltage supplied voltage supply detected... -
Page 17: Guarantee
Fratelli Comunello Spa, and so excluding any claim for damages made by others. Warranty material shall be returned to Fratelli Comunello S.p.a. headquarters carriage paid and will then be shipped to the customer carriage unpaid. The material found to be faulty and returned to Fratelli Comunello S.p.a. -
Page 18: 10 "Ce" Declaration Of Conformity
DECLARATION OF EC CONFORMITY Manufacturer Fratelli Comunello S.p.a., Headquarters in Via Cassola (VI), Rosà, Italy, under its sole responsibility declares that: The actuator: • AIRWIN A45 230VAC - AIRWIN A45 24VDC • AIRWIN A65 230VAC, AIRWIN A65 2W-NET 230VAC, AIRWIN A65 3W-NET 230VAC, AIRWIN A65 4W-NET 230VAC •... - Page 19 L I F E M A D E E A S Y FRATELLI COMUNELLO S.P.A. AUTOMATION DIVISION Via Cassola, 64 - C.P. 79 36027 Rosà, Vicenza, Italy Tel. +39 0424 585111 Fax +39 0424 533417 info@comunello.it www.comunello.com...
