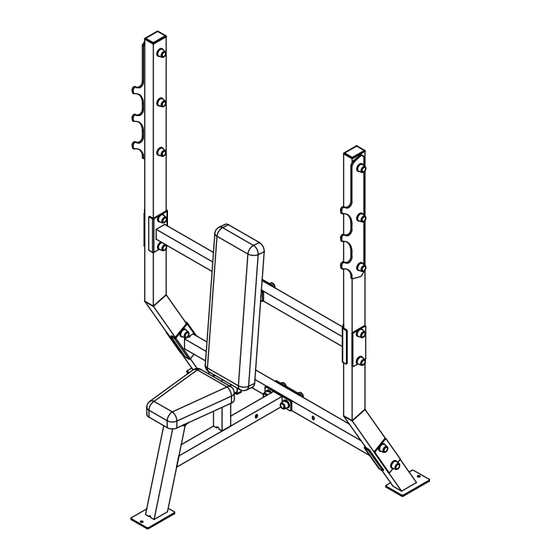

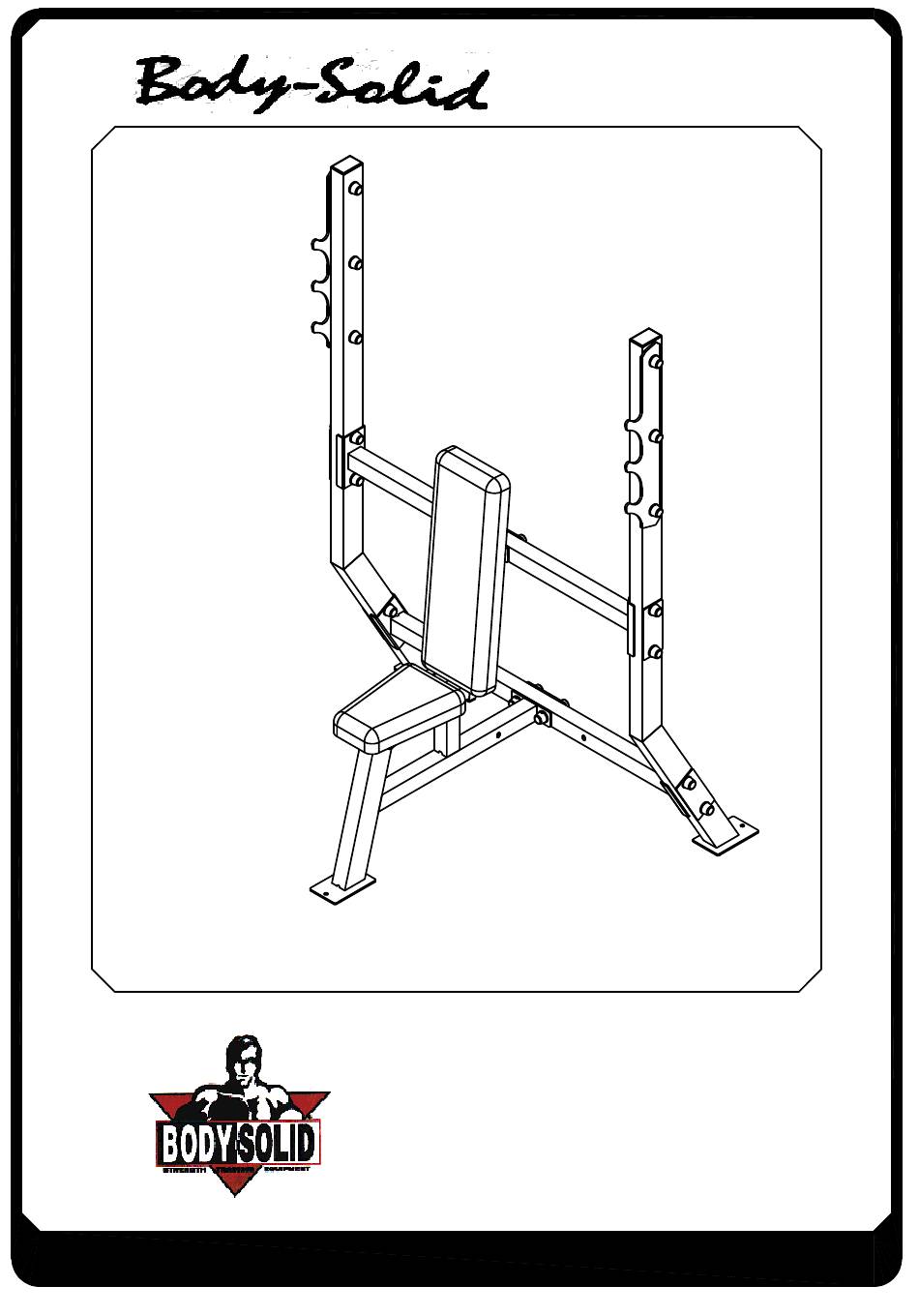

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL SPB368.1...
- Page 2 (A1)HEX BOLT 1/2"x3"L PARTIAL THREAD QTY.15 (A2)HEX BOLT 1/2"x3 1/2"L PARTIAL THREAD QTY.4 (A3)HEX BOLT 5/16"x1 1/4"L PARTIAL THREAD QTY.2 (A4)HEX BOLT 5/16"x2 3/4"L PARTIAL THREAD QTY.1 (A5)HEX BOLT 5/16"x2"L PARTIAL THREAD QTY.2 inch 2" 3" 5" 6" 1" 4" SPB368.1-122008 Page...
- Page 3 HARDWARE ILLUSTRATION D1.1/2" BOLT CAP(9212-024)..[38PCS] D2.50X75 END CAP(9211-012)..[2PCS] D4.1"X2" END CAP(9211-009)..[2PCS] (B1)NYLON LOCK NUT 1/2" QTY.19 (C1)1/2"(I.D.)ROUND WASHER QTY.38 (C2)1/2"(I.D.)FLAT WASHER Ø34 QTY.38 (C3)5/16"(I.D.)FLAT WASHER Ø24 QTY.5 (C4)5/16" SPRING WASHER QTY.5 inch 2" 3" 5" 6" 1" 4" SPB368.1-122008 Page...
- Page 4 SPB368 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A[2PCS] E[4PCS] 8313-075 F[2PCS] 8312-062 B[1PCS] G[2PCS] 8343-062 C[1PCS] H[1PCS] 9111-005 D1[1PCS] I[1PCS] 9121-008 SPB368.1-122008 Page...
-
Page 5: Assembly-Step
SPB368 ASSEMBLY INSTRUCTIONS ASSEMBLY-STEP 1 Page 3 SPB368.1-122008... - Page 6 7. If unsure of proper use of equipment, call your local Body-Solid distributor or the Body-Solid customer service department at 1-800-556-3113. 8. WARNING: Consult your physician before starting your exercise program. For your own safety. do not begin any exercise program without proper instruction. RAL2-11-98 SPB368.1-122008 Page...
