Videx 4042 Manual

4000 Series
Art. 4042 .. 4045
Art. 4042D .. 4045D

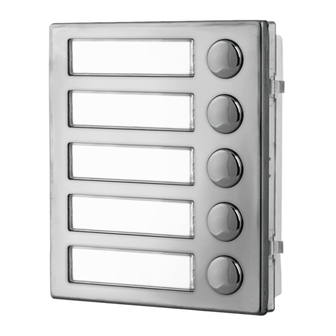

Art. 4045
5 push buttons, single row
C
Fig. 1 Front
DESCRIPTION
Push button modules allow the expansion of the number of call buttons.
Available in versions single row with 2, 3, 4 or 5 call push but-
tons and in double row with 4, 6, 8 or 10 call push buttons.
Specific for use in combination with VIDEX IP camera units
Art. 4533, VX2200 camera units Art. 4284 and VX2300 camera
units Art. 4384.
AVAILABLE VERSIONS
Art. 4042 Art. 4043
2 call button 3 call button
PUSH BUTTON CONFIGURATION
The button addressing depends on the jumper position. The table below shows the numbers assigned to the buttons according to the
jumper position.
n=0 n=5
R R
5
4
3
2
1
n=20 n=25
R R
25
24
23
22
21
Art. 4042 .. 4045 - Art. 4042D .. 4045D- Installation instructions
Single row button expansion modules
Double row button expansion modules
Art. 4045D
10 push buttons, double row
A B C
Single row
Art. 4044
4 call button 5 call button
Single row
n=10
R R
10 15
9 14
13
8
12
7
11
6
n=30
R R
30 35
29 34
28 33
27 32
26 31
D
E
F
A
Fig. 2 Back
LEGEND
Right side push button
A
Left side push button
B
(only for double row versions)
Name plate holders
C
Right side push button
D
configuration jumpers
SW1 switch
E
Art. 4045 Art. 4042D
4 call button
n=0
n=15
R
20 10 5
19 9 4
18 8 3
17 7 2
16 6 1
L
n=35
n=5
40 Note: when you use a double row module, take care to place
39
jumpers in different position so to have different addresses
38
for left side and right side button.
37
36
- 1 -
Made in Italy
PUSH BUTTONS CONFIGURATION
MAX VALUES FOR ART:
STEEL
40 35 30 25 20 15 10 5 4045 4045D
39 34 29 24 19 14 9 4 4044 4044D ALI
38 33 28 23 18 13 8 3 4043 4043D HIGH BRASS
37 32 27 22 17 12 7 2 4042 4042D MATTE
36 31 26 21 16 11 6 1
LEFT
L
SIDE
5+n
4+n
3+n
RIGHT
2+n
SIDE
1+n
SW1 R
B
STANDARD
TRADE
P1 EXPANSION BUTTONS EXPANSION BUTTONS
Trade button connection
F
Left side push button con-
G
figuration jumpers
J2 and J1 jumpers to con-
H
figure illumination LEDs
IDC male connectors
I
Double row
Art. 4043D Art. 4044D
6 call button 8 call button
Double row
n=10 n=20
R R
20 15 30
19 14 29
18 13 28
17 12 27
16 11 26
L L
n=15 n=25
Rev.0.2
G
H
A B A
J2 J1
I
Art. 4045D
10 call button
n=30
R
25 40 35
24 39 34
23 38 33
22 37 32
21 36 31
L
n=35
66250255 - V4.2 - 31/12/20
