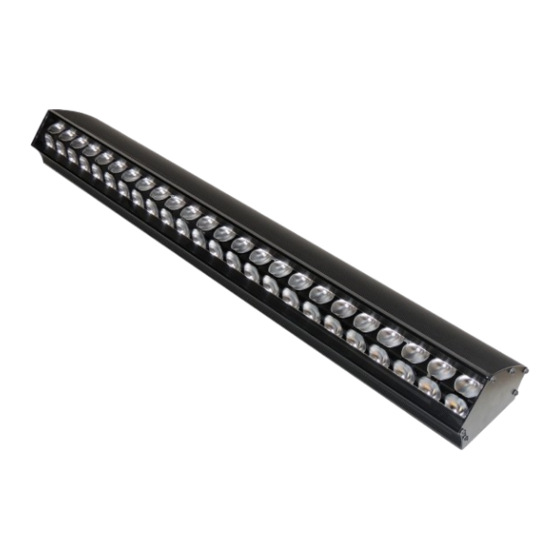

Robert Juliat Dalis 864S Manual

Footlight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dalis – 864/864S
bain de pieds
FOOTLIGHT
Projecteur bain de pieds LED – 4 COULEURS
LED – 4 COloUR MIXING Footlight
Model
864
864S
DALIS 864/864S
Firmware V1.XX
Validation : 02/08/19
DN41146200
Robert Juliat S.A.S. 32, rue de Beaumont, F60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 51 89 - info@robertjuliat.fr
Length
100 cm
50 cm
www.robertjuliat.com
Power
150 W
75 W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dalis 864S and is the answer not in the manual?

Questions and answers

Related Manuals for Robert Juliat Dalis 864S

Summary of Contents for Robert Juliat Dalis 864S

  • Page 1 75 W DALIS 864/864S Firmware V1.XX Validation : 02/08/19 DN41146200 Robert Juliat S.A.S. 32, rue de Beaumont, F60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 51 89 - info@robertjuliat.fr www.robertjuliat.com...

  • Page 2: Table Of Contents

    Electronic thermal management system ................27 Firmware update ....................... 27 Factory defaults ......................... 27 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

  • Page 3: User's Instructions

    1 User’s instructions GENERAL INSTRUCTIONS Not for residential use. These fixtures must only be serviced by a qualified technician. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios.

  • Page 4: Presentation

    2 Presentation Functions Functions : 1. Feet 6. Network 2. M10 thread for rigging (model 864 only) 7. Display and keypad 3. ID plate 8. DMX OUT 4. Power IN 9. Power OUT 5. DMX IN Identification plate Description : 1.

  • Page 5: Accessories Included

    Accessories included ‚ Reference Description COU0003305 Neutrik PowerCON© True1 connector (ref. NAC3FX-W) DN41146100 Quick Start manual Optional accessories  ‚ ƒ … † ‡ Reference Description 3 meter power cable ( 3G1,5 HO7RNF) with Neutrik PowerCON© True1 and CEE 7/7 CAL03 (2P+T NF/SCHUKO) connectors CAL04...

  • Page 6: Set-Up

    3 Set-up Mechanics 3.1.1 Operating positions 3.1.2 Minimum distance between a flammable material and the lighting unit 0,2 m 0.7 ft 3.1.3 Instructions for use Minimum : Maximum : 5°C 40°C 41°F 104°F IP20 – Indoor use only 3.1.4 Floor installation EN -4-...
  • Page 7 3.1.5 Installation with clamps – Model 864 only • The fixture can be secured with clamps by using M10 screws on the M10 threads. • Ensure fixture is correctly mounted on an appropriate support. • The fixture must be installed with 2 clamps. •...
  • Page 8 3.1.7 Angular sensor EN -6-...

  • Page 9: Electrical

    Electrical 3.2.1 Power Voltage Frequency Amps* Power Model Connectors (Hz) 0,97 Neutrik powerCON TRUE1 0,97 ref. NAC3FPX (max. 20A) see appendix 1 for assembly 0,99 instructions 0,99 (*) Maximum: 1,9A for 864 only 864S Maximum: _,_A for 864S only • Class 1 product.

  • Page 10: Data

    DATA 3.3.1 DMX 512-A / RDM Protocol Input connector Output connector USITT DMX 512-A XLR 5-pin XLR 5-pin DATA connectors PIN # Description Shielding Foil & Braided Shield DMX (-) conductor of 1 twisted pair DMX (+) conductor of 1 twisted pair Not used conductor of 2...
  • Page 11 3.3.3 Ethernet/DMX node Protocol Input connector Output connector Art-Net RJ45 sACN Art-Net sACN DMX Console EN -9-...

  • Page 12: Operation

    4 Operation Light intensity 4.1.1 Range 100 % 1 : Upstage (US) + 2 : Downstage (DS) 4.1.2 Control Console Remotely with DMX512-A / Artnet / sACN protocols Locally via STAND ALONE mode Mode 1 – 2 – 3 – 4 Mode Dimmer 1 + 2 Dimmer 1...
  • Page 13 4.1.3 Parameters 4.1.3.1 Dimming resolution Resolution DMX mode : 8 bits – 255 steps 3 – STAND ALONE 16 bits – 65 535 steps 1 – 2 – 4 4.1.3.2 Dimming curve à selection in SETUP/DIMMER CURVE menu: Linear or Square Linear Square Control (%)

  • Page 14: Colours

    Colours 4.2.1 Range 4.2.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 – 2 – 3 – 4 4.2.3 Parameters 4.2.3.1 Resolution Resolution DMX mode : 8 bits – 255 steps 16 bits – 65 535 steps 1 –...

  • Page 15: Strobe

    4.2.3.2 Intensity curve Linear Control (%) Strobe 4.3.1 Range Strobe duration 0=OFF 1=1ms 255=85ms Strobe speed 0=5,8Hz 255=11,5Hz 4.3.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 – 2 – 3 EN -13-...

  • Page 16: Group

    Group 4.4.1 Range Model : 864 Group 4 Group 3 Group 2 Group 1 US = Upstage DS = Downstage Model : 864S Group 4 Group 3 Group 2 Group 1 US = Upstage DS = Downstage 4.4.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 –...

  • Page 17: Response Time

    Response time 4.5.1 Range 4.5.2 Control Remotely with Locally only when DMX mode 4 is selected DMX512-A / Art-Net / sACN protocols Mode 1 – 2 – 3 EN -15-...

  • Page 18: Position Light

    Position light 4.6.1 Range Model: 864 Model: 864S 4.6.2 Control Console Console Remotely with Remotely with DMX512-A / Art-Net / sACN protocols DMX512-A / Art-Net / sACN protocols Mode 1 – 2 – 3 Mode 4 à 3 DMX channels à...

  • Page 19: Control And Parameters

    5 Control and parameters Local display and Controls 5.1.1 Display Function Exit the current menu option and/or go back Enter the current menu option and/or valid Scrolls through menus and/or Increase data value Scrolls through menus and/or Decrease data value Scrolls through menus and/or Increase data value Scrolls through menus and/or Decrease data value 5.1.2...
  • Page 20 5.1.3 Menus DATA FACTORY STATUS SETUP MODE DEFAULT • ADDRESS SERIAL NR DISPLAY MODE • PERSONALITY ARTNET • NET-SUB-UNI SOFTWARE VERSION DISPLAY FAULTS • IP-CONF • ADDRESS • PERSONALITY SACN • IP-CONF LED BOARDS IDS GROUP FLIP • ADDRESS • PERSONALITY •...

  • Page 21: Dmx512-A Remote Control

    DMX512-A remote control 5.2.1 Protocol: E1.11 – 2008, USITT DMX512-A 5.2.2 Configuration: Data Mode DMX Address DMX address of the unit from Start address : XXX 1 to 512 Personality MX : Selection of the unit XXXXXXXXXXXX personality 5.2.3 Parameters 5.2.3.1 DMX Hold à...
  • Page 22 5.2.4 DMX chart: 5.2.4.1 DMX chart: model 864 Mode 2: Mode 4: Mode 1: Mode 3: DMX address Full1groupmode16b 4groupsindividual16bits Full4groupsmode16b Full1groupmode8b Dimmer Dimmer - Up Stage Dimmer - Up Stage Dimmer - Up Stage 1 Dimmer fine Dimmer fine - Up Stage Red - Up Stage Dimmer fine - Up Stage 1 Red - Up Stage 1...
  • Page 23 5.2.4.2 DMX chart model 864S Mode 1: Mode 2: Mode 3: Mode 4: DMX address Full4groupsmode16b Full1groupmode16b Full1groupmode8b 4groupsindividual16bits Dimmer Dimmer - Up Stage Dimmer - Up Stage Dimmer - Up Stage 1 Dimmer fine Dimmer fine - Up Stage Red - Up Stage Dimmer fine - Up Stage 1 Red - Up Stage 1...
  • Page 24 5.2.5 DMX ranges: 5.2.5.1 Strobe duration Range min Range max Function Strobe OFF Strobe ON - 1ms --> 85ms 5.2.5.2 Strobe speed Range min Range max Function Frequency: 5,8 Hz --> 11,5 Hz 5.2.5.3 Response time Range min Range max Function Dimmer timing: 0,1s -->...
  • Page 25 5.2.5.6 Blue position (864S) Range min Range max Position B Position A Description ¡ ¡ Fixed light ¤ ¤ Fixed light ¡ ¤ Fixed light ¤ ¡ Fixed light ¤ ¡ Fixed light ¤ ¤ Fixed light ¤ ¤ Fixed light ¡...

  • Page 26: Rdm Remote Control

    RDM remote control 5.3.1 Protocol: ANSI E1.20 – 2010 / ANSI E1.37 - 1 For more information about RDM protocol: http://www.rdmprotocol.org/ 5.3.2 Functions: Description Commentary Description Ox0002 DiscoveryMute Ox0003 DiscoveryUnmute Ox0050 (Get) SupportedParameters (Get) DeviceInfo Ox0060 (Get) ProductDetailIDList Ox0070 (Get) DeviceModelDescription Ox0080 (Get) ManufacturerLabel Ox0081...

  • Page 27: Art-Net Remote Control

    Art-Net remote control 5.4.1 Protocol: Artistic Licence Art-Net For more information about RDM protocol: http://art-net.org.uk/ 5.4.2 Configuration: Data Mode ARTNET Net Subnet Universe Selection of the Net, Net :XX Sub :X Sub-Net and Uni :X Universe Network Config DHCP Setup DHCP XXX DHCP ON or OFF IP-Address...

  • Page 28: Sacn Remote Control

    sACN remote control 5.5.1 Protocol: ANSI E1.31 – 2009 sACN (Streaming-ACN) 5.5.2 Configuration: Data Mode SACN Universe Selection of the Universe : XXXXX Universe Network Config DHCP Setup DHCP XXX DHCP ON or OFF IP-Address IP address of the XXX :XXX :XXX :XXX unit IP-Mask IP-Mask address of...

  • Page 29: Service

    6 Service Preventive maintenance 6.1.1 Frequency General maintenance should be performed at least once a year or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). 6.1.2 General cleaning Remove dust from the unit. Front glasses can be cleaned with solutions containing alcohol.
  • Page 30 APPENDIX 1...
  • Page 31 APPENDIX 1...
