Dalis ACCESS 863
CycLIODE
CYCLIGHT
Cycliode 150W LED 4 couleurs

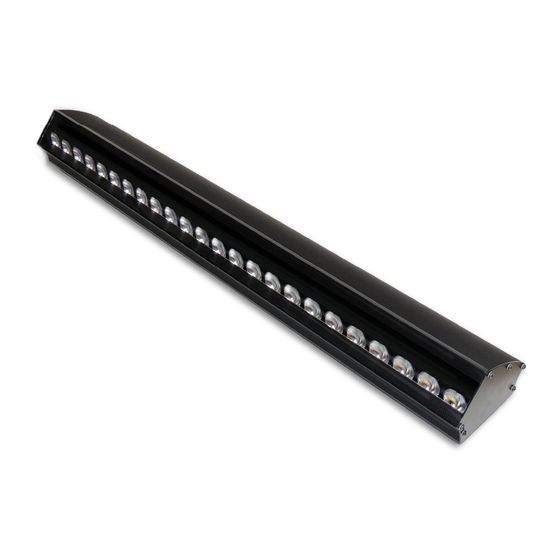

4 colours LED 150W Cyclight
Model
863
DALIS 863
Firmware V1.XX
Validation : 02/08/19
DN41149300
Robert Juliat S.A.S. 32, rue de Beaumont, F60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 51 89 - info@robertjuliat.fr
Length
100 cm
www.robertjuliat.com
Power
150 W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dalis ACCESS 863 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robert Juliat Dalis ACCESS 863

Summary of Contents for Robert Juliat Dalis ACCESS 863

  • Page 1 150 W DALIS 863 Firmware V1.XX Validation : 02/08/19 DN41149300 Robert Juliat S.A.S. 32, rue de Beaumont, F60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 51 89 - info@robertjuliat.fr www.robertjuliat.com...

  • Page 2: Table Of Contents

    Electronic thermal management system ................22 Firmware update ....................... 22 Factory defaults ......................... 22 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

  • Page 3: User's Instructions

    1 User’s instructions GENERAL INSTRUCTIONS Not for residential use. These fixtures must only be serviced by a qualified technician. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios.

  • Page 4: Presentation

    2 Presentation Functions Functions : 1. Feet 6. Network 2. M10 thread for rigging 7. Display and keypad 3. ID plate 8. DMX OUT 4. Power IN 9. Power OUT 5. DMX IN Identification plate Description : 1. Model 3. Serial number 2.

  • Page 5: Accessories Included

    Accessories included ‚ Reference Description COU0003305 Neutrik PowerCON© True1 connector (ref. NAC3FX-W) DN41134700 Quick Start manual Optional accessories  ‚ ƒ … † ‡ Reference Description 3 meter power cable ( 3G1,5 HO7RNF) with Neutrik PowerCON© True1 and CEE 7/7 CAL03 (2P+T NF/SCHUKO) connectors CAL04...

  • Page 6: Set-Up

    3 Set-up Mechanics 3.1.1 Operating positions 3.1.2 Minimum distance between a flammable material and the lighting unit 0,2 m 0.7 ft 3.1.3 Instructions for use Minimum : Maximum : 5°C 40°C 41°F 104°F IP20 – Indoor use only 3.1.4 Floor installation EN -4-...
  • Page 7 3.1.5 Installation with clamps • The fixture can be secured with clamps by using M10 screws on the M10 threads. • Ensure fixture is correctly mounted on an appropriate support. • The fixture must be installed with 2 clamps. • Net weight : model 863 : 9.3 Kg •...
  • Page 8 3.1.7 Angular sensor EN -6-...

  • Page 9: Electrical

    Electrical 3.2.1 Power Voltage Frequency Amps* Power Model Connectors (Hz) 0,82 Neutrik powerCON TRUE1 0,93 ref. NAC3FPX (max. 20A) 0,93 see appendix 1 for assembly instructions • Class 1 product. This luminaire must be grounded. • Must be connected directly to AC power. Do not connect to dimmer power. •...

  • Page 10: Data

    DATA 3.3.1 DMX 512-A / RDM Protocol Input connector Output connector USITT DMX 512-A XLR 5-pin XLR 5-pin DATA connectors PIN # Description Shielding Foil & Braided Shield DMX (-) conductor of 1 twisted pair DMX (+) conductor of 1 twisted pair Not used conductor of 2...
  • Page 11 3.3.3 Ethernet/DMX node Protocol Input connector Output connector Art-Net RJ45 sACN Art-Net sACN DMX Console EN -9-...

  • Page 12: Operation

    4 Operation Light intensity 4.1.1 Range 4.1.2 Control 4.1.3 Parameters 4.1.3.1 Dimming resolution 4.1.3.2 Dimming curve à selection in SETUP/DIMMER CURVE menu: Linear or Square Linear Square Control (%) EN -10-...

  • Page 13: Colours

    Colours 4.2.1 Range 4.2.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 – 2 – 3 – 4 4.2.3 Parameters 4.2.3.1 Resolution Resolution DMX mode : 8 bits – 255 steps 16 bits – 65 535 steps 1 –...

  • Page 14: Strobe

    4.2.3.2 Intensity curve Linear Control (%) Strobe 4.3.1 Range 4.3.2 Control EN -12-...

  • Page 15: Group

    Group 4.4.1 Range Model : Group 4 Group 3 Group 2 Group 1 4.4.2 Control Response time 4.5.1 Range 4.5.2 Control EN -13-...

  • Page 16: Control And Parameters

    5 Control and parameters Local display and Controls 5.1.1 Display Function Exit the current menu option and/or go back Enter the current menu option and/or valid Scrolls through menus and/or Increase data value Scrolls through menus and/or Decrease data value Scrolls through menus and/or Increase data value Scrolls through menus and/or Decrease data value 5.1.2...
  • Page 17 5.1.3 Menus DATA FACTORY STATUS SETUP MODE DEFAULT • ADDRESS SERIAL NR DISPLAY MODE • PERSONALITY ARTNET • NET-SUB-UNI SOFTWARE VERSION DISPLAY FAULTS • IP-CONF • ADDRESS • PERSONALITY SACN • IP-CONF LED BOARDS IDS GROUP FLIP • ADDRESS • PERSONALITY •...

  • Page 18: Dmx512-A Remote Control

    DMX512-A remote control 5.2.1 Protocol: E1.11 – 2008, USITT DMX512-A 5.2.2 Configuration: Data Mode DMX Address DMX address of the unit from Start address : XXX 1 to 512 Personality MX : Selection of the unit XXXXXXXXXXXX personality 5.2.3 Parameters 5.2.3.1 DMX Hold à...
  • Page 19 5.2.4 DMX chart: 5.2.4.1 DMX chart: model 863 Mode 2 Mode 3 Mode 4 Mode 1 DMX address Full1groupmode16b Full1groupmode8b 4groupsindividual16b Full4groupsmode16b Dimmer Dimmer Dimmer Group 1 - Dimmer 1 Dimmer fine Dimmer fine Group 1 - Dimmer fine 1 Group 1 - Red Green Group 1 - Red...
  • Page 20 5.2.5 DMX ranges: 5.2.5.1 Strobe duration Range min Range max Function Strobe OFF Strobe ON - 1ms --> 85ms 5.2.5.2 Strobe speed Range min Range max Function Frequency: 5,8 Hz --> 11,5 Hz 5.2.5.3 Response time Range min Range max Function Dimmer timing: 0,1s -->...

  • Page 21: Rdm Remote Control

    RDM remote control 5.3.1 Protocol: ANSI E1.20 – 2010 / ANSI E1.37 - 1 For more information about RDM protocol: http://www.rdmprotocol.org/ 5.3.2 Functions: Description Commentary Description Ox0002 DiscoveryMute Ox0003 DiscoveryUnmute Ox0050 (Get) SupportedParameters Ox0060 (Get) DeviceInfo (Get) ProductDetailIDList Ox0070 (Get) DeviceModelDescription Ox0080 Ox0081 (Get) ManufacturerLabel...

  • Page 22: Art-Net Remote Control

    Art-Net remote control 5.4.1 Protocol: Artistic Licence Art-Net For more information about RDM protocol: http://art-net.org.uk/ 5.4.2 Configuration: Data Mode ARTNET Net Subnet Universe Selection of the Net, Net :XX Sub :X Sub-Net and Uni :X Universe Network Config DHCP Setup DHCP XXX DHCP ON or OFF IP-Address...

  • Page 23: Sacn Remote Control

    sACN remote control 5.5.1 Protocol: ANSI E1.31 – 2009 sACN (Streaming-ACN) 5.5.2 Configuration: Data Mode SACN Universe Selection of the Universe : XXXXX Universe Network Config DHCP Setup DHCP XXX DHCP ON or OFF IP-Address IP address of the XXX :XXX :XXX :XXX unit IP-Mask IP-Mask address of...

  • Page 24: Service

    6 Service Preventive maintenance 6.1.1 Frequency General maintenance should be performed at least once a year or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). 6.1.2 General cleaning Remove dust from the unit. Front glasses can be cleaned with solutions containing alcohol.
  • Page 25 APPENDIX 1...
  • Page 26 APPENDIX 1...
