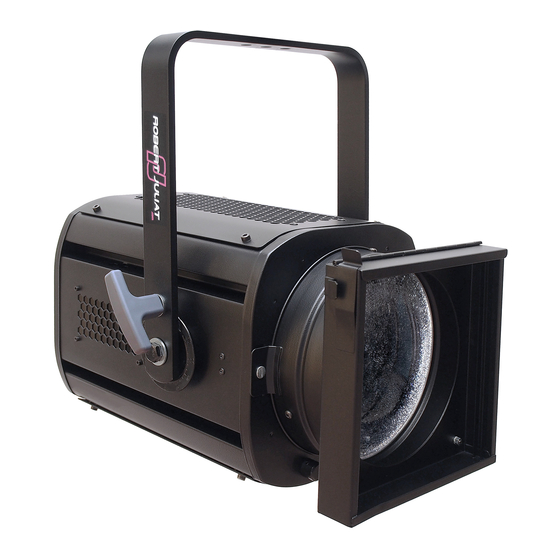

4-COLOUR LED SINGLE LENS LUMINAIRE
V2
- FIRMWARE: V2.xx
VALIDATION : 17/10/23
DN41222300 (EN)
Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - info@robertjuliat.fr
200 W LED
Type
Standard
Fresnel
315LF 4C
Pebble Convex
315LPB 4C
www.robertjuliat.com
North American
315CLF 4C
315CLPB 4C
Advertisement
Table of Contents
Related Manuals for Robert Juliat SULLY 315L 4C
Summary of Contents for Robert Juliat SULLY 315L 4C
- Page 1 315LF 4C 315CLF 4C Pebble Convex 315LPB 4C 315CLPB 4C - FIRMWARE: V2.xx VALIDATION : 17/10/23 DN41222300 (EN) Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - info@robertjuliat.fr www.robertjuliat.com...
-
Page 2: Table Of Contents
4.12 Colour and diffuser filters (gels) ................. 24 4.13 Beam shaping ....................... 25 4.13.1 Range ......................... 25 4.13.2 Control ........................25 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice. -
Page 3: User's Instructions
1 User’s instructions GENERAL INSTRUCTIONS Not for residential use. These fixtures must only be serviced by a qualified technician. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios. -
Page 4: Presentation
2 Presentation 2.1 Functions Description 1. Identification plate 11. Lens (Fresnel or Pebble) 2. Data connector (IN and OUT) 12. Accessories and colour filter holders 3. Power connector (IN and OUT) 13. Accessories and colour filter holders locking system 4. Local display and controls 14. -
Page 5: Identification Label
2.2 Identification label Description 1. MOD. : Model 18 15 16 2. VERS. : Version 3. U : Nominal voltage input (V) 4. I : Nominal intensity (A) 5. P : Maximum power input (W) 6. IP : International Protection Rating 7. -
Page 6: Accessories
2.4 Accessories Reference Description PCP1716A 16A blue 2P+E 6h IEC60309 power connector PF1000M2 215 x 215 mm metal filter holder CF1000 4 rotating leaves on a rotating barndoor - 215 x 215 mm ( without safety cable) - weight: 1.03 Kg 40 x 10 mm hook clamp with 28mm screw for Ø35 to Ø50 mm 40 x 10 mm hook clamp with 28mm screw for Ø50 to Ø63 mm Safety cable Ø3 mm (length = 600 mm) -
Page 7: Set-Up
3 Set-up 3.1 Mechanics 3.1.1 Operating positions 90° 90° 3.1.2 Minimum distance between a flammable material and the lighting unit 0,1 m / 0.33 ft 5°C 40°C 3.1.3 Instructions for use Minimum : Maximum : 40°F 104°F IP20 - Indoor use only 3.1.4 Hanging •... -
Page 8: Safety Cable
3.1.5 Safety cable • When hung or flown the fixture must be secured by an additional hanging accessory (such as a safety bond or cable) of suitable length. • The combined weight of both the fixture and the accessories must be considered when choosing the load-bearing capability of safety cable or bond. -
Page 9: Data
Power cable Power cable Connector Mains plug Cable type Cable length Wiring Live: Brown Standard 3G1.5 CEE7/7 Neutral: Blue Neutrik® version H07RNF 9.8 ft Ground: Yellow/Green powerCON TRUE1 TOP North 14AWG Live: Black 1.5 m NAC3FX-W-TOP American SJ TYPE Neutral: White 4.9 ft version (UL/CSA) -
Page 10: Accessories
3.4 Accessories 3.4.1 Front filter holder For filter dimensions, see 4.12 The filter holder includes perforations designed for stapling to keep the gel in position. 3.4.2 Barndoors Front accessories safety cable attachment point Filter frame slot Barndoors slot EN - 8 -... -
Page 11: Operations
4 Operations 4.1 Source type 4.1.1 Range White presets Daylight Tungsten Tungsten 6500 K Reproduce existing 3000 K 3200 K source with the best (D65) colour rendering Generic CCT CCT - High CCT - High Quality Brightness White source with adjustable colour 1700 - 10000 K 1700 - 10000 K... -
Page 12: Light Intensity
4.2 Light intensity 4.2.1 Range 100% 4.2.2 Control DMX512-A Remotely with DMX512-A protocol Locally via Mode 1 - 2 - 3 - 4 - 5 - 6 STAND ALONE mode (see 5.2.4 DMX chart for function details) Focus mode: when standby screen displayed, Push the UP arrow button for 3 secs →... -
Page 13: Dimming Mode
4.2.3.3 Dimming mode T Set through RDM protocol or local control Mode Frequency 1282 Hz / 2500 Hz / 5000 Hz / 6000 Hz / 15000 Hz* / 20000 Hz (*) Default value 4.2.3.4 Response time T See 4.8 4.2.3.5 DimShift T See 4.9 EN - 11 -... -
Page 14: Colour Mix
4.3 Colour mix 4.3.1 Range CIE xy control (ANSI E1.54–2021) x = 0 T 0,85 y = 0 T 0,85 Colour space: CIE 1931 xy RGB (ANSI E1.54–2015) GREEN BLUE Colour space: NATIVE / SRGB-REC. 709 / REC. 2020 / PROPHOTO RGB Tsee 4.3.3 Hue Saturation (ANSI E1.54–2015) Hue = 0 T 360°... -
Page 15: Control
RAW Mode* GREEN BLUE LIME (*) Calibration disabled 4.3.2 Control DMX512-A Remotely with DMX512-A protocol Locally via CIE xy Mode 3 | Source type = Colour Mix STAND ALONE mode - see 5.6 Home value Hue Saturation Mode 4 | Source type = Colour Mix Mode 5 | Source type = Colour Mix Mode 6 | Source type = Colour Mix EN - 13 -... -
Page 16: Parameters
4.3.3 Parameters 4.3.3.1 Colour space selection T Set through RDM protocol, DMX control channel or local control - For RGB and Hue Saturation modes only ProPhoto (ROMM) – White point = D50 REC. 2020 - White point = D65 SRGB-REC. 709 - White point = D65 Native - LED engine gamut Point Green... -
Page 17: High Quality / High Brightness
4.3.3.2 High Quality / High Brightness T See 4.5 4.4 Colour Temperature CCT 4.4.1 Range Colour 100% Temperature 1 700 Kelvin 10 000 Kelvin Delta UV -100% (Magenta) +100% (Green) EN - 15 -... -
Page 18: Control
4.4.2 Control DMX512-A Remotely with DMX512-A protocol Locally with DMX mode 1 - 2 and Mode 3 - 4 - 5 - 6 | Source type = Generic CCT Stand Alone mode - see 5.6 Home value (see 5.2.4 DMX chart for function details) 4.4.3 Parameters 4.4.3.1 High Brightness / High Quality T See 4 .5... -
Page 19: Colour Filters
4.6 Colour filters 4.6.1 Range Source Colour Filter Colour simulation* 300 references available (see annex) (*) Results depend on Source type or Colour temperature - compatible with White presets, Generic CCT source types and DimShift function 4.6.2 Control DMX512-A Remotely with DMX512-A protocol Locally with DMX mode 1 - 2 and Mode 3 - 4 -5 - 6 | Source type = White presets / Stand Alone mode - see 5.6 Home value... -
Page 20: Parameters
4.6.3 Parameters 4.6.3.1 Saturation 100% Source Source with filter without filter 4.6.3.2 Transmission 100% Source Source with filter with filter T Filter transmission is independent from main dimmer. Dimmer intensity can still be operated from 0 to 100% with or without the DimShift function EN - 18 -... -
Page 21: Gel Fade Time And Mode
4.6.3.3 Gel Fade Time and Mode Transition between 2 colour filters – Gel fade time: Colour 1 Colour 2 Fade time : 0 to 25,5 seconds Transition between 2 colour filters - Gel Fade type: Direct XY Colour 1 Colour 2 Limit Brightness Brightness Direct XY... -
Page 22: Strobe
4.7 Strobe 4.7.1 Range Strobe duration 255 = 20ms 0 = OFF 1 = 1ms Strobe speed 0 = 0.1Hz 255 = 10Hz 4.7.2 Control T Remotely with DMX512-A protocol. Mode 2 - 3 - 4 - 5 - 6 (see 5.2.4 DMX chart for function details) DMX512-A 4.8 Response time... -
Page 23: Dimshift
4.9 DimShift 4.9.1 Range DimShift function: When dimming the light, the colours follow the Planck curve (tungsten redshift emulation) Example: Source Generic CCT @ 3500 K with DimShift Intensity DimShift 100% Colour Temperature (CCT) Intensity DimShift 100% Colour Temperature (CCT) EN - 21 -... -
Page 24: Control
4.9.2 Control DMX512-A Remotely with DMX512-A protocol Locally with DMX mode 1 - 2 and Mode 3 - 4 - 5 - 6 | Source type = White presets Stand Alone mode - see 5.6 Home value / Generic CCT (see 5.2.4 DMX chart for function details) 4.10 Beam size adjustment 4.10.1 Range... -
Page 25: Orientation
4.11 Orientation 4.11.1 Range Function Range 0 T 360° TILT TU = 0 T 90° TD = 0 T 90° 4.11.2 Control Index EN - 23 -... -
Page 26: Colour And Diffuser Filters (Gels)
4.12 Colour and diffuser filters (gels) Fixed colour Location Front filter holder Type Standard coloured gel filter 215 mm Dimensions 195 mm 215 mm Installation See 3.4.1 EN - 24 -... -
Page 27: Beam Shaping
4.13 Beam shaping 4.13.1 Range 4.13.2 Control EN - 25 -... -
Page 28: Controls And Parameters
5 Controls and parameters 5.1 Local display and controls 5.1.1 Display Function Exit the current menu option and/or go back Enter the current menu option and/or valid Scroll through menus and/or Increase data value Scroll through menus and/or Decrease data value Menu down and/or Increase data value Menu up and/or Decrease data value 5.1.2 Home screen... -
Page 29: Menu
5.1.3 Menu DATA FACTORY STATUS SETUP MODE DEFAULT Reset to factory settings. SYSTEM ID PROTOCOL HOME VALUES • SERIAL NUMBER • DMX • SOFTWARE VERSION • STANDALONE • POWER CYCLES • DEVICE COUNTER • RDM UID • DEVICE LABEL DISPLAY •... -
Page 30: Parameters
5.1.4 Parameters 5.1.4.1 Backlight T Selection in SETUP / DISPLAY / BACKLIGHT menu Display Mode Description DISPLAY BACKLIGHT ALWAYS ON ALWAYS ON Main display, always ON AUTO OFF press OK AUTO OFF – ONLY WARNINGS to validate DISPLAY BACKLIGHT ALWAYS ON AUTO OFF Main display OFF after 20 seconds press OK... -
Page 31: Parameters
1 - Set DMX mode: MENU MENU / DATA MODE DATA MODE / PROTOCOL PROTOCOL / DMX DATA MODE PROTOCOL ENABLE STATUS PERSONALITY SETUP DMX ADDRESS Press OK Press OK Press OK Press OK Go back to to enter to validate to validate to validate PROTOCOL... -
Page 32: User Id
5.2.3.2 User ID T Selection in SETUP / Data Setup / USER ID menu Each unit can be identified by a User ID number – Once defined, the User ID is displayed on the Home screen. Example: Installation with 6 units Home screen ID1 @ 101 ID2 @ 123... -
Page 33: Dmx Chart
5.2.4 DMX chart Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 DMX Channel Dimmer8B Profile16b Full - XY Full - HS Full - RGB Full - Raw Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer fine Dimmer fine Dimmer fine Dimmer fine Dimmer fine... -
Page 34: Control Mode
5.2.5.4 Control mode Range min Range max Function RDM disabled RDM enabled Fixture Reset Dimmer Curve Linear Dimmer Curve Square Dimmer Curve Tungsten Colour Space Native Colour Space sRGB / Rec. 709 Colour Space Rec. 2020 Colour Space ProPhoto RGB Cooling mode: Silent Cooling mode: Normal Cooling mode: Full... -
Page 35: Gel Type
5.2.5.6 Gel Type Range min Range max Function Gel Type Comments Wheel 1 Basics Wheel 2 Numeric: 002 --> 111 Wheel 3 Numeric: 113 --> 181 Wheel 4 Numeric: 182 --> 328 Wheel 5 Numeric: 332 --> 710 Wheel 6 Numeric: 711 -->... -
Page 36: Gel Fade Mode
5.2.5.11 Gel Fade Mode Range min Range max Mode Comments Direct XY + Limit Brightness Direct XY Open Frame + Limit Brightness Only when Source type = "Calibrated whites" & "Generic CCT" Open Frame Through Black Reserved / Off (0 s) 5.2.5.12 CCT Range min Range max... -
Page 37: Pids List
5.3.2 PIDs list RDM COMPATIBILITY SULLY V2.5 RDM COMPATIBILITY SULLY V2.5 ✔ ✔ *= Implementation Issue ✔ ✔ *= Implementation Issue SULLY 4C SULLY 4C SULLY ARTHUR SULLY ARTHUR DALIS DALIS Queued_ Queued_ Description Description 3802 3802 Standard Message Standard 3.00 Message 3.00... -
Page 38: Parameters
5.3.3 Parameters RDM: ON/OFF T Selection in SETUP / Data Setup / RDM menu 5.4 Fan cooling modes 5.4.1 Range Mode Fan Speed SILENT Minimum – constant speed NORMAL Regulated – depending on ambiant temperature FULL Maximum – constant speed 5.4.2 Control DMX512-A Remotely by DMX512-A... -
Page 39: Leds Feedback
5.5 LEDs Feedback 5.5.1 Trouble shooting • During unit initialisation (power up) – up to 5 seconds: Description DMX OUT DMX IN Error No DMX protocol detected DMX protocol detected DMX protocol detected + RDM protocol activated 5.5.2 Parameters 5.5.2.1 Auto-OFF T Set through RDM protocol or local control Mode Description... -
Page 40: Home Values
5.6 Home values 5.6.1 Range T Selection in SETUP / HOME VALUES menu If the function is not controlled by DMX, HOME VALUE is automatically activated Functions * Dimmer mode Profile mode Full mode Stand Alone (mode 1) (mode 2) (mode 3-4-5-6) Dimmer DMX value... -
Page 41: Service
6 Service 6.1 Preventive maintenance 6.1.1 Frequency General maintenance should be performed at least once a year or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). 6.1.2 General cleaning Remove dust from the unit. Front glasses can be cleaned with solutions containing alcohol. -
Page 42: Analysis
6.2 Analysis In case of problem, contact RJ distributor with the following information: • Model, version and serial number of the product. • From the menu status: - Software version - LED board IDs - Device hours • Description of the problem. 6.3 Electronic thermal management system In case of overheating, light intensity will be reduced by the system. -
Page 43: Factory Defaults
6.5 Factory defaults 6.5.1 Modes Mode Description Factory defaults Set all user parameters to factory default value 6.5.2 Control Set to factory defaults / Set to factory defaults / reset through RDM protocol reset through local control compatible device EN - 41 -... -
Page 44: Annex 1 - Gel References
Annex 1 - Gel References EN - 42 -... -
Page 45: Annex 2 - Home Values
Annex 2 - Home values 1. General: "Home Values" represents a set of parameters manually entered into the device via the keypad in order to restore a predefine setup when a full control of the fixture by DMX is not present, available or allowed. Those home values are used in the following cases: Loss of DMX signal data: From Menu - "Set Up"...
