FOLLOWSPOTS
Oz - 1169 V1a
Alice - 1469 V1a
Firmware V2.xx – 02/01/19
VALIDATION: 07/01/19
DN41135200-A
Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr
Model
Standard
7 – 14,5°
OZ 1169
13 – 24°

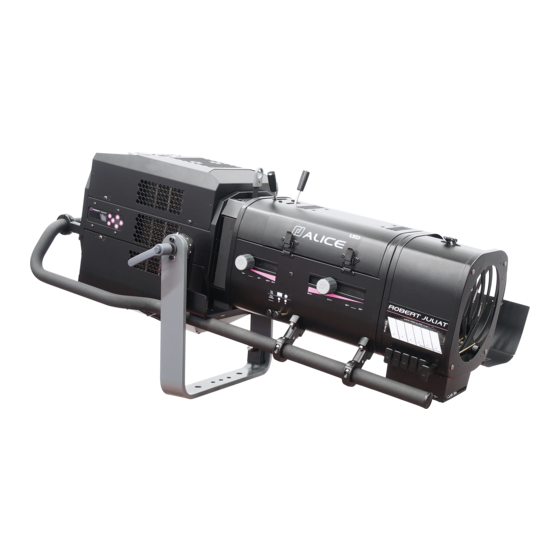

ALICE 1469
600W LED FOLLOWSPOTS
www.robertjuliat.com
North American
OZ 1169C
ALICE 1469 C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Robert Juliat ALICE Series
Summary of Contents for Robert Juliat ALICE Series
- Page 1 Alice - 1469 V1a Firmware V2.xx – 02/01/19 VALIDATION: 07/01/19 DN41135200-A Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr www.robertjuliat.com...
-
Page 2: Table Of Contents
6.5 Firmware update ................................................. 35 6.6 Exploded view / Spare parts list ..........................................35 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice. -
Page 3: User's Instructions
1 User’s instructions GENERAL INSTRUCTIONS Not for residential use. These fixtures must only be serviced by a qualified technician. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios. -
Page 4: Presentation
Presentation Functions Functions Yoke 12. Local display Yoke locking 13. Identification plate Side operating 14. Data connectors (OUT and IN) Iris control 15. Power connectors (IN and OUT) Dimming control 16. Thermal breaker Colour changer 17. Power switch Focus adjustment 18. -
Page 5: Identification Label
Identification label Description 1. MOD. : Model 19 15 16 2. VERS. : Version 3. U : Nominal voltage input (V) 4. I : Nominal intensity (A) 5. P : Maximum power input (W) 6. IP : International Protection Rating 7. -
Page 6: Optional Accessories
2.4 Optional accessories Reference Description T1000 TV spigot with followspots swivel head Monopod stand for overhead followspot GT4000 Tripod stand with safety chain - SWL: 130 Kg - max. height: 1030 mm GT4000S Tripod stand without safety chain - SWL: 130 Kg - max. height: 1030 mm T4000 Followspot mount for Ø50mm pipe (suspension or overhead) - SWL= 100 Kg CAV700A... -
Page 7: Set-Up
Set-up 3.1 Mechanics 3.1.1 Operating positions for OZ & ALICE 3.1.2 Minimum distance between a flammable material and the lighting unit OZ: 1,5 m / 5 ft ALICE: 1 m / 3.3 ft 3.1.3 Instructions for use Minimum : Maximum : 5°C 40°C 40°F... -
Page 8: Stand Set-Up
3.1.5 Stand set-up The unit must be installed only on a Robert Juliat compatible stand / head : T1000 TV spigot with followspots swivel head Monopod stand for overhead followspot GT4000 Tripod stand with safety chain - SWL: 130 Kg - max. height: 1030 mm GT4000S Tripod stand without safety chain - SWL: 130 Kg - max. -
Page 9: Electrical Information
3.2 Electrical information 3.2.1 LED source Never touch or scratch the LED surface. Cf. 6.1.4 LED cleaning procedure if cleaning is necessary. 3.2.2 Power supply Power supply Voltage Frequency Input power Connectors Neutrik powerCON TRUE1 3 A / 625 W @ 230V 100 —>... -
Page 10: Data
Power ON 3.3 DATA 3.3.1 DMX 512-A / RDM Protocol Input connector Output connector USITT DMX 512-A XLR 5-pin XLR 5-pin DATA connectors PIN # Description Shielding Foil & Braided Shield DMX (-) conductor of 1 twisted pair DMX (+) conductor of 1 twisted pair Not used... -
Page 11: Ethernet / Dmx Mode
3.3.3 Ethernet / DMX node Protocol Input connector Output connector Art-Net RJ45 sACN Daisy chain: Maximum : 32 units 3.3.4 Wireless DMX available soon. EN - 9 -... -
Page 12: Accessories
Accessories 3.4.1 Full closing iris cassette 3.4.2 Colour changer unit - boomerang (only available for OZ) Dimensions Cf. 4.8.1 EN - 10 -... -
Page 13: Colour Changer Unit - Push-Pull (Alice)
3.4.3 Colour changer unit - push-pull (ALICE) Dimensions Cf. 4.8.1 3.4.4 Gobo holder 'A' size gobo Dimensions Cf. 4.7.1 EN - 11 -... -
Page 14: Double Slot Front Cassette
3.4.5 Double slot front cassette for 215 x 215 mm accessories (option) 3.4.6 Frosted / CTO glass (option) Dimensions: Cf. 4.9.1 EN - 12 -... -
Page 15: Internal Glass Holder
3.4.7 Internal glass holder 120 x 120 mm (option) 3.4.8 Horizontal chopper (option) Turn, to lock into place. Dimensions: Cf. 4.10.1 EN - 13 -... -
Page 16: Stands
3.4.9 Stands • GT4000 Series : Please refer to the relevant stand technical files for further details. Stand set-up, refer to Cf. 3.1.5. 3.4.10 Heavy duty adjustable yoke (option) Remove screw to set desired position, then tighten. Caution: Slighty untighten Caution: the screws without removing Remove followspot from stand to set yoke position. -
Page 17: Flight-Case
3.4.12 Flight-case (option) EN - 15 -... -
Page 18: Operations
4 Operations 4.1 Light intensity 4.1.1 Range 100% • Dimming 4.1.2 Control Remotely with DMX512-A protocol Locally via rotary knob DMX512-A HTP mode (Highest Takes Precedence): Light output is the highest value of DMX512 command or local control Focus mode: when standby screen displayed, Push Exit for 3 secs →... -
Page 19: Master Control
4.1.3.3 Master control In order to supervise the operator from the console, master control DMX channel can be used. This channel limits the maximum value of the dimmer shutter. By using this function, it is possible to obtain synchronised fades with several spots or to give intensity limits (minimum and maximum) to the operator . -
Page 20: Strobe
4.2 Strobe 4.2.1 Range Strobe duration 255 = 20ms 0 = OFF 1 = 1ms Strobe speed 0 = 0.1Hz 255 = 50Hz 4.2.2 Control Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 – 2 – 3 – 4 DMX512-A 4.3 Response time 4.3.1 Range... -
Page 21: Beam Size Adjustment
4.4 Beam size adjustment 4.4.1 Range Beam angle Field angle Model Angles Minimum angle Maximum angle Beam angle 6.9° 13.4° OZ 1169 Field angle 7.1° 13.8° Model Angles Minimum angle Maximum angle Beam angle 12.9° 20.6° ALICE 1469 Field angle 13.2°... -
Page 22: Control
4.5 Pan / Tilt 4.5.1 Range Function Range 0 —> 360° TILT 35° 45° 37° 15° Yoke option, Yoke option, 50° position #1 position #5 65° 4.5.2 Control Lock Unlock EN - 20 -... -
Page 23: Iris
4.6 Iris 4.6.1 Range • Irising 100% 4.6.2 Control 4.7 Gobo 4.7.1 Range Type Standard gobo - A size Ø100 mm Ø72 mm • Metal Dimensions Maximum • Glass image size Installation Cf. section: 3.4.4 4.7.2 Control EN - 21 -... -
Page 24: Colour
4.8 Colour 4.8.1 Range Type Coloured gel filter Ø210 mm Dimension Cf. section: 3.4.2 & section 3.4.3 Installation Place dark colours towards the front end. 4.8.2 Control Push / Pull Unlock = release colours Colour engaged EN - 22 -... -
Page 25: Frost And Correction Filters
4.9 Frost and correction filters 4.9.1 Range Type Frost or CTO glass Ø97 mm Dimension Installation Cf. section: 3.4.6 4.9.2 Control Frost glass Spare filter EN - 23 -... -
Page 26: Horizontal Chopper
4.10 Horizontal chopper 4.10.1 Range Type Accessory option: PG80 chopper kit Dimension Ø80 mm Installation Cf. section: 3.4.8 4.10.2 Control EN - 24 -... -
Page 27: Controls And Parameters
5 Controls and parameters 5.1 Local display and controls 5.1.1 Display Function Exit the current menu option and/or go back Press for 3 secs to enter Focus mode Enter the current menu option and/or valid Scroll through menus and/or Increase data value Scroll through menus and/or Decrease data value Scroll through menus and/or Increase data value Scroll through menus and/or Decrease data value... -
Page 28: Menu
5.1.2 Menu DATA FACTORY STATUS SETUP MODE DEFAULT Reset to factory settings. PROTOCOL ANGULAR DISPLAY • DMX ADJUSTMENT • INTENSITY • RDM • VALUES • AUTO OFF • WDMX • HOME SCREEN • ARTNET • FLIP • SACN • STANDALONE SYSTEM ID DATA SETUP •... -
Page 29: Parameters
5.1.3 Parameters Selection in SETUP/DISPLAY MODE menu → Display Mode Description 000% Always ON Main display (home screen) always ON LOCAL MASTER SETUP DISPLAY INTENSITY Adjust the intensity of the screen Intensity Intensity : 4 To change value, press buttons : press OK to validate SETUP... -
Page 30: Dmx512 - A Remote Control
5.2 DMX512 - A remote control 5.2.1 Protocol: E1.11 – 2008, USITT DMX512-A 5.2.2 Configuration: DATA MODE Data Mode Protocol Press OK DATA MODE Press OK PROTOCOL STATUS SETUP FAC PERSONALITY DMX ADDI to enter to validate DATA MODE Caution: Activate DMX in protocol mode beforehand. -
Page 31: Dmx Chart
5.2.4 DMX chart: Mode 1: Mode 2: Mode 3: Mode 4: Mode 5: Mode 6: DMX address Dimmer8B Dimmer16B Profile8B Profile16b Followspot8b Followspot16b Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer fine Dimmer fine Strobe duration Dimmer fine Master Strobe speed Strobe duration Strobe duration Master... -
Page 32: Rmd Remote Control
5.3 RDM remote control ANSI E1.20 – 2010 / ANSI E1.37 - 1 5.3.1 Protocol: For more information about RDM protocol: http://www.rdmprotocol.org/ 5.3.2 Functions: available soon. 5.3.3 Parameters ON/OFF: available soon. EN - 30 -... -
Page 33: Art-Net Remote Control
5.4 Art-Net remote control Artistic Licence Art-Net 5.4.1 Protocol: For more information about Art-Net protocol: http://art-net.org.uk/ 5.4.2 Configuration: Caution: Activate Art-Net in protocol mode beforehand. DATA MODE Data Mode Protocol Press OK DATA MODE STATUS SETUP FAC Press OK PROTOCOL PERSONALITY DMX ADDI Press OK... -
Page 34: Sacn Remote Control
5.5 sACN remote control ANSI E1.31 – 2009 sACN (Streaming-ACN) 5.5.1 Protocol: 5.5.2 Configuration: Caution: Activate sACN in protocol mode beforehand. DATA MODE Data Mode Protocol Press OK DATA MODE STATUS SETUP FAC Press OK PROTOCOL PERSONALITY DMX ADDI Press OK to enter to validate to validate... -
Page 35: Fan Cooling Modes
5.6 Fan cooling modes 5.6.1 Range Modes Silent Normal Full Cooling < 38 dB(A) → → 100% Brightness 5.6.2 Control DMX512-A Locally selection in → Remotely by DMX512-A SETUP/COOLING Mode 1 – 2 – 3 – 4 6 Service 6.1 Preventive maintenance 6.1.1 Frequency General maintenance should be performed at least once a year or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). -
Page 36: Optics
6.1.5 Optics Only use solutions containing alcohol to clean optical parts (lenses). Lens tube access 6.1.6 Inner fans & LED glass protection cleaning Only use solutions containing alcohol to clean inner parts. Inner fans & LED access Caution: DISCONNECT the fan wire before removing the LED housing cover. Caution: DO NOT REMOVE the screws on the lower part of the LED housing. -
Page 37: Local Potentiometer
6.3 Local potentiometer → selection in SETUP/LOCAL POTENTIOMETER/CALIBRATION Setting the minimum & maximum positions: SETUP LOCAL POTENTIOMETER SETUP LOCAL POTENTIOMETER ENABLE CALIBRATION ENABLE CALIBRATION SENSITIVITY ROTATION ROTATION Press OK to validate Adjust the minimum position SETUP LOCAL POT CALIBRATION Press OK to validate SETUP LOCAL POT...
