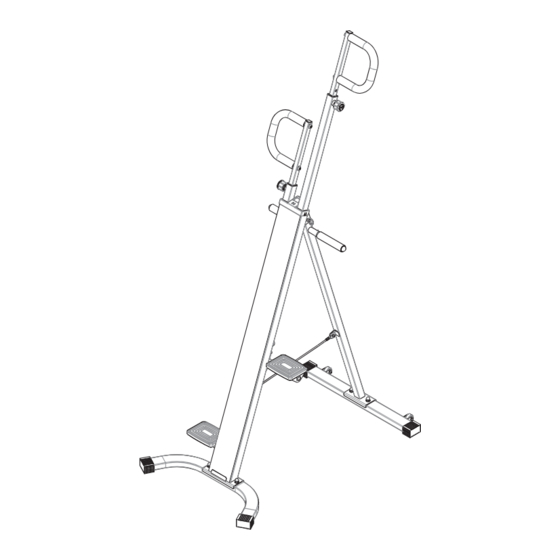

HOMCOM A90-275 Assembly & Instruction Manual
Hide thumbs Also See for A90-275:

Advertisement

Available languages

Available languages

Quick Links

IN230600155V01_IT
A90-275
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
ASSEMBLY & INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the A90-275 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HOMCOM A90-275

  • Page 1 IN230600155V01_IT A90-275 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY & INSTRUCTION MANUAL...
  • Page 2 DIAGRAMMA ESPLOSO...
  • Page 3 LISTA PARTI La seguente lista delle parti elenca tutte le parti illustrate nel diagramma esploso nella pagina seguente. Si prega di notare che la maggior parte di queste parti è già stata pre-as- semblata sull'unità. Descrizione QTA’ Descrizione QTA’ Boccola quadrata □38 to Stabilizzatore anteriore □30 Boccola quadrata □30 to...
  • Page 4 LISTA VITERIA La seguente viteria viene utilizzata per assemblare l'unità. Si prega di trovare il tempo per familiarizzare con questi componenti. Si prega di notare che parte di questi componenti è già pre-assemblata sul macchinario. Non allarmarsi se alcune parti contenute in questa pagina non sono incluse nella vostra confezione della viteria.
  • Page 5: Istruzioni Di Assemblaggio

    ISTRUZIONI DI ASSEMBLAGGIO Passo 1 1. Estrarre (#15) 2. Aprire (#02) e (#03) 3. Inserire nuovamente (#15) Passo 2 Fissare (#01) a (#02) con due (#45), due (#46), due (#47) . Fissare (#04) a (#03) con due (#45), due (#46), due (#47) .
  • Page 6 ISTRUZIONI DI ASSEMBLAGGIO Passo 3 Inserire due (#05) nelle posizioni corrispondenti di (#03) rispettivamente. Passo 4 Collegare il cavo di connessione (#16A) al cavo su (#16B).
  • Page 7 ISTRUZIONI DI ASSEMBLAGGIO Passo 5 1. Inserire (#11L) e (#11R) nella posizione corrispondente sopra (#02). ***Attenzione! La posizione mostrata nell'immagine, (#11L) ha un magnete (#16C).*** 2. Muovere (#19) con la mano come mostrato, vedere il foro filettato che è vuoto qui. mirare a (#11R) e (#06), bloccarli con uno (#49).
  • Page 8 ISTRUZIONI DI ASSEMBLAGGIO Passo 6 Fissare (#08R) nella posizione corrispondente di GIUSTO (#06) sul lato destro, quindi allineare i due fori, fissare con due (#50). Infine, inserire (#08L) nella posizione corrispondente di (#06) sul lato sinistro, quindi allineare i due fori, fissare con due (#50).
  • Page 9 ISTRUZIONI DI ASSEMBLAGGIO Passo 8 Inserire due (#13) nelle posizioni corrispondenti di due (#12) rispettivamente, quindi fissare con due (#47), due (#48) rispettivamente. *** L’assemblaggio è terminato***...
  • Page 10 ALTRO È possibile ripiegare l’attrezzo come mostrato in figura. 1. Estrarre (#15) 2. Chiudere (#02) e (#03) 3. Inserire nuovamente (#15) La machine a une fonction mobile. Vous pouvez la déplacer comme indiqué sur la représentation graphique.
  • Page 11 ALTRO PULSANTI DELLE FUNZIONI: MODE/RESET – Premere per selezionare le funzioni. – Premere per 4 secondi per azzerare tempo, conteggio e calorie. FUNZIONI E OPERAZIONI: 1.SCAN : scansiona automaticamente le funzioni del tempo, di conteggio totale e delle calorie, ogni schermata verrà mantenuta per 6 secondi. 2.TIME: accumula automaticamente il tempo trascorso durante l'allenamento.
  • Page 12: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 13: Parts List

    PARTS LIST The folowing parts list describes all of the parts illutrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Description Description Front stabilizer Square bushing □38 to □30 Front frame Square bushing □30 to □20 Rear frame...
  • Page 14: Hardware List

    HARDWARE LIST The following hardware is used to assemble your unit. Please take a moment to familiarze yourself wth these items. Please note some of tis hardwar is aready pre-assembled on the machine. Do not be alarmed if you see parts on this page that are not included in your hardware packet.
  • Page 15 ASSEMBLY INSTRUCTFIONS Step 1 1.Pull out (#15) 2.Open (#02) and (#03) 3.Insert (#15) back Step 2 Secure (#01) to (#02) with two (#45), two (#46), two (#47) . Secure (#04) to (#03) with two (#45), two (#46), two (#47) .
  • Page 16 ASSEMBLY INSTRUCTFIONS Step 3 Insert the two (#05) into the corresponding positions at (#03) respectively. Step 4 Connect the Connecting wire (#16A) to the wire on (#16B).
  • Page 17 ASSEMBLY INSTRUCTFIONS Step 5 1. Insert (#11L) and (#11R) into the corresponding position above (#02). ***Attention! The position shown in the picture, (#11L) has a magnet (#16C).*** 2. Move (#19) by your hand as shown, see the threaded hole that is empty here, aim at (#11R) and (#06).
  • Page 18 ASSEMBLY INSTRUCTFIONS Step 6 Put (#08R) in the corresponding position of (#06) at right side, then align the two holes, lock them with two RIGHT (#50). Then put (#08L) in the corresponding position of (#06) at left side, then align the two holes,lock them with two (#50).
  • Page 19 ASSEMBLY INSTRUCTFIONS Step 8 Take two (#13) in the corresponding positions of two (#12) respectively, lock them with two (#47), two (#48) respectively. ***The assembly is completed***...
  • Page 20 OTHERS You can fold it as shown in the diagram. 1. Pull out (#15) 2. Close (#02) and (#03) 3. lnsert (#15) back The machine has a movable function. You can move it as shown in the diagram.
  • Page 21: Functional Button

    OTHERS FUNCTIONAL BUTTON: MODE/RESET – Push down to select functions. – Push down to reset time、count and calories for 4 seconds. FUNCTIONS AND OPERATIONS: 1. SCAN: Automatically scan functions of time、count、total count and calories, each display will be hold 6 seconds. 2.
