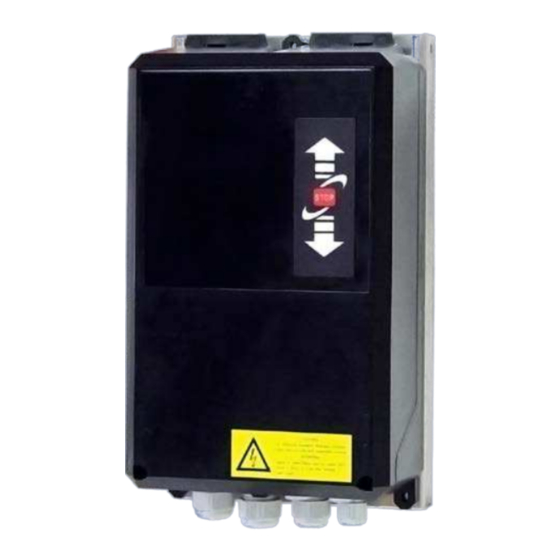

STARTUP
TST FUS
Important !
You must read the function description before operating,
connecting or starting up the door controller
preliminary
public (B)
2007-05-29
FUS_Inbetriebnahme14_GB.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TST FUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Feig Electronic TST FUS

  • Page 1 STARTUP TST FUS Important ! You must read the function description before operating, connecting or starting up the door controller preliminary public (B) 2007-05-29 FUS_Inbetriebnahme14_GB.doc...
  • Page 2 Violations will result in liability for damages. All rights reserved in case of patent granting or utility model listing. This Manual is directed especially at persons involved with starting up / commissioning the TST FUS door controller of FEIG ELECTRONIC GmbH. Starting up the controller must be carried out only by officially trained electrical experts who are familiar with the safety standards of electrical drive and automation technology.
  • Page 3: Table Of Contents

    Additional connection possibilities Photo eye ............................17 External triggering devices .......................17 Overview of outputs Overview of inputs Functions Message Overview 12.1 Internal system-related errors F.9xx ..................26 12.2 Information messages .......................27 12.3 LED indicator codes ........................29 FEIG ELECTRONIC GmbH Page 3 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 4: Safety Advisories

    A device mark (nameplate with name and address of the manufacturer, serial number, model number, supply voltage and temperature range) must be applied by the user. FEIG ELECTRONIC GmbH Page 4 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 5: Technical Data

    EN12445 / 2001: Utilization Safety of Power Activated Doors – Testing Procedures Applied national technical specifications EN12978 / 2003: Doors – Protection Equipment – Requirements and related to the above Directives Testing Procedures FEIG ELECTRONIC GmbH Page 5 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 6: Installing The Controller

    The cable entries are not allowed to have mech. stress. Fig. 1: Opening the housing cover Connecting the keypad Min. 100mm 50°C -10°C 1x230VAC, N, PE Min. 100mm Fig. 3: Hole pattern Fig. 2: Installing the controller FEIG ELECTRONIC GmbH Page 6 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 7: Electrical Connection

    CEE plug 3 poles 300 / 500 / 16A, blue fuse 16A / K-Typ IMPORTANT The mains plug must be visible and accessible from the controller. Fig. 4: Connecting the mains cable FEIG ELECTRONIC GmbH Page 7 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 8: Motor Connections

    Fig. 5: Motor connections IMPORTANT To ensure flawless function of the TST FUS door controller, a shielded motor cable must be used. In addition, no other wires may be routed except for those connecting the motor. If a motor with electro mechanical break is used you have to observe that the break is noise- suppressed.
  • Page 9: Connecting The Safety Edge

    • Dynamic optical systems. If one of these safety edges is connected when the TST FUS door controller is turned on, the edge is automatically detected. IMPORTANT If no safety edge is connected, automatic closing of the door is not possible.
  • Page 10: Connecting Limit Switches

    Startup 4.4 Connecting limit switches Three various limit switch systems can be used with the TST FUS door controller. In the standard setting an absolute encoder is used as the limit switch. In addition, mechanical cam limit switches or incremental encoders may be used.
  • Page 11: Incremental Encoders

    Fig. 11: Typical incremental encoder Fig. 13:Connecting incremental encoders 90° 180° Fig. 12: Function of an incremental encoder IMPORTANT Recheck the electrical connections before starting up the controller. Improper connections may damage the device. FEIG ELECTRONIC GmbH Page 11 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 12: General Instructions For Parameterizing

    3 sec. IMPORTANT After approx. 1h service mode is automatically reset. To reopen service mode the controller has to be turned off and then turned ON again, or perform a reset. FEIG ELECTRONIC GmbH Page 12 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 13: Basic Settings

    To set the TST FUS door controller into service, please follow the steps below. 6.1 Automatic querying of the basic data If the TST FUS door controller has not been preconfigured by the door manufacturer, the following parameters are automatically queried: IMPORTANT For the TST FUS door controller to automatically query the parameters, DIP switch S200 must be turned on (S200 location see Fig.
  • Page 14: Changing Parameters

    IMPORTANT Be sure to note the Y/∆ wiring of the motor. The motor data must be entered according to the motor wiring. A 400V setting is not reasonable, since the TST FUS door controller can output a maximum of 230V motor voltage.
  • Page 15: Startup

    (increases power at slow speeds) to give the motor more power. (see Section 7.4) IMPORTANT The distance depends greatly on the door type and the speed; increase this value for fast moving doors. FEIG ELECTRONIC GmbH Page 15 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 16: New Request For Teaching End Positions

    You can use diagnostic parameter P.910 = 2 to display the motor current. The boost should be set so that the motor current remains as low as possible. FEIG ELECTRONIC GmbH Page 16 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 17: Additional Connection Possibilities

    L1 L1 N 30 31 32 X15 20 21 230VAC flashing red break relay green traffic L,N,PE traffic light: light: flashing relay active while door in position moves and door open during clearance time FEIG ELECTRONIC GmbH Page 17 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 18: Overview Of Inputs

    Startup 10 Overview of inputs optional emergency stop FE543/0 +12V 10 9 Entrance No: 1 2 3 40 41 absolute absolute encoder encoder mechanical limit switches incremental encoder encoder FEIG ELECTRONIC GmbH Page 18 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 19: Functions

    2. Incremental encoder (reference switch in lower end position) 3. Absolute encoder DES-A 4. Absolute encoder TST PB-A 5. SSI encoder (only with UL-Version) 6. Reserved 7. Absolute encoder DES-B 8. Absolute encoder TST PD FEIG ELECTRONIC GmbH Page 19 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 20 (travel frequency until Upper pre-limit switch) → adjust pre-limit switch as necessary [Hz] Frequency for fast close (travel frequency until Lower pre-limit switch) → adjust pre-limit switch as 6..200 necessary ATTENTION: Note closing forces on safety edge! FEIG ELECTRONIC GmbH Page 20 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 21 • Ebcl → Clear entire error memory Eb - • Eb - → Cancel (Display noEr: no error) Software version display Motor run-time during last door move 0..120.0 Line supply voltage display FEIG ELECTRONIC GmbH Page 21 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 22 1: Deadman Close (manual mode close / automatic mode open) 2: Deadman (manual mode for open and close) 3: Emergency (deadman open and close, all errors and securities are ignored). 0..FFFF Password entry FEIG ELECTRONIC GmbH Page 22 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 23: Message Overview

    F.052 recognized during automatic synchronization after power-on • The reference switch is not recognized in the associated end position. Maintenance counter exceeded Fault: Maintenance is required • Service counter has expired F.080 FEIG ELECTRONIC GmbH Page 23 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 24 Safety edge defective • Fault in pre-limit switch for Pre-limit switch for turning off the safety edge or reversing F.385 safety edge after safety edge tripping remains tripped even in the upper end position. FEIG ELECTRONIC GmbH Page 24 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 25 • Internal temperature too high Fault: Temperature in housing F.535 rises over critical 80 °C Overcurrent in intermediate • Boost not adjusted F.540 circuit Limit 2 • Motor incorrectly dimensioned for door • Door sticks FEIG ELECTRONIC GmbH Page 25 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 26: Internal System-Related Errors F.9Xx

    Position values during calibration not correct or values are no longer plausible 12.1 Internal system-related errors F.9xx These are internal errors which cannot be eliminated by the user. If such an error occurs, call customer service immediately. FEIG ELECTRONIC GmbH Page 26 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 27: Information Messages

    I.170 Wait for acknowledgement (operator call), display flashes I.185 Door cycle not plausible (re-initialize Parameters) I.199 Reference position corrected or recognized (after calibration) I.200 Reference position re-initialized I.201 Reference position missing I.202 FEIG ELECTRONIC GmbH Page 27 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 28 E.379 RC plug-in module RC Channel 1 E.401 RC Channel 2 E.402 Induction loop processor plug-in module Detector Channel 1 E.501 Detector Channel 2 E.502 Internal inputs Controller chip fault signal E.900 FEIG ELECTRONIC GmbH Page 28 of 29 FUS_Inbetriebnahme14_GB.doc...
  • Page 29: Led Indicator Codes

    ON Processor not running, no display but there is hazardous voltage present on the controller OFF Controller ready or turned off Short circuit in 24V supply voltage Display OFF plus NOTST (E-Stop) Power supply not starting up LED flashing FEIG ELECTRONIC GmbH Page 29 of 29 FUS_Inbetriebnahme14_GB.doc...

Table of Contents
