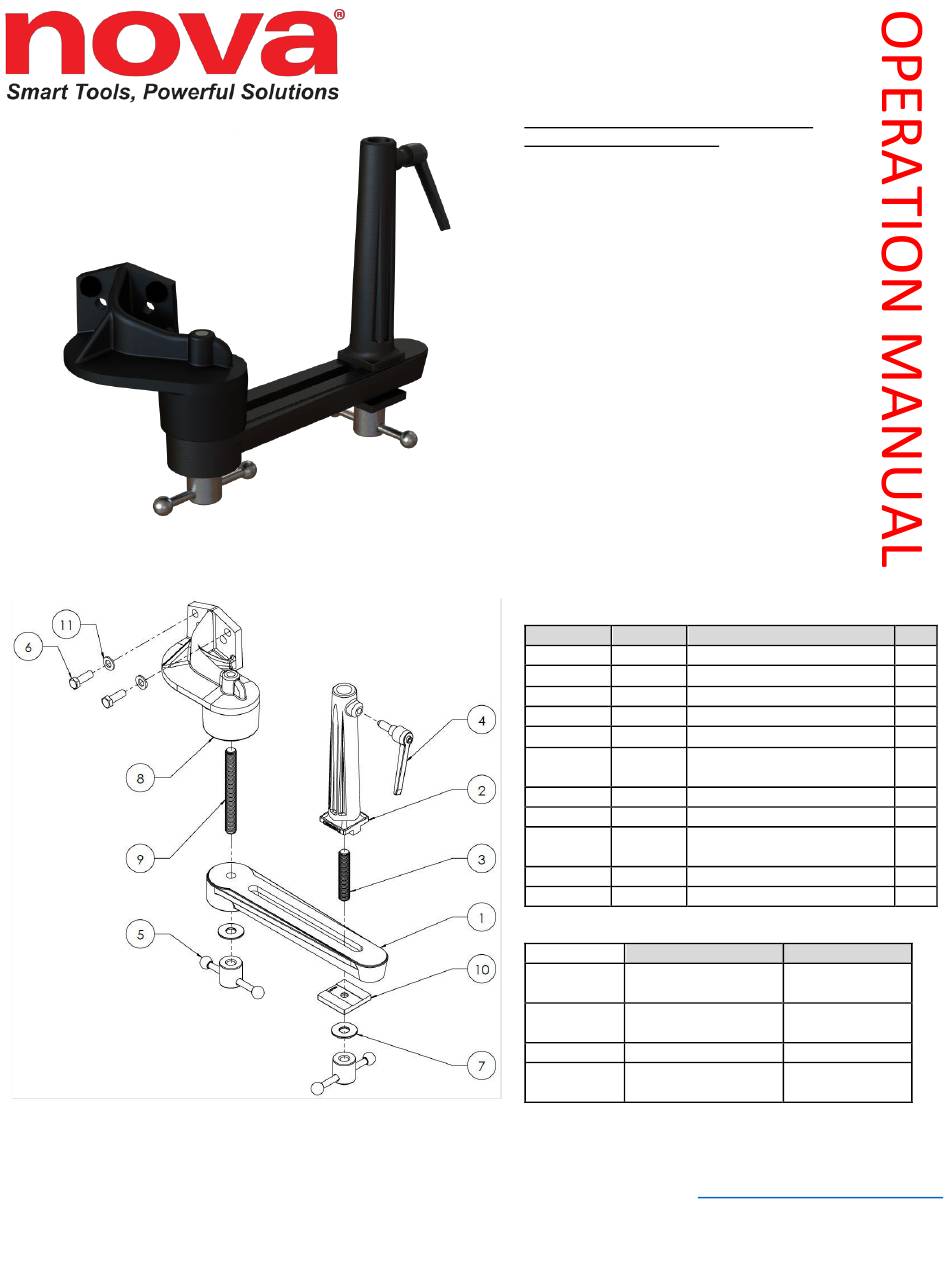

Teknatool Nova 55266 Operation Manual

SKU 55266
Outrigger
Accessory
For safety reasons please carefully read and
understand these instructions
The Outrigger Accessory is designed to fit and
only be used with the Neptune, Neptune Max,
Nebula and Saturn wood lathes. Use of this
outrigger on other lathes could cause a
malfunction and risk of serious injury. If you are
unsure of the use or application of this
accessory, contact the technical support
department of Teknatool International or your
reseller. Please read the manual that came with
your Nova Lathe before use and carefully follow
the safety instructions before operating.
Thank you for purchasing the Outrigger, this unit
will allow you to greatly increase your turning
capacity allowing you to turn larger items on the
Outboard end of the headstock.
Parts List:
Part
1
2
3
4
5
6
7
8
9
10
11
Specifications:
Overall Size
Package
Size
Net Weight
Gross
Weight
For all worldwide Inquiries, Repairs or Services (issues must be
1
131-01-2311
128-0621-003
SKU Description
5519011 Cast Iron Outrigger Arm
5519012 Cast Iron Outrigger Post
25011 M16x95mm Threaded Bar ZP
5699036 Toolrest Locking Handle
25027 Tommy Bar Unit
SZ1235 M12x40mm Set Screws
Black
FWH16 M16x34 Washer Black
5519013 Cast Iron Outrigger Bracket
25005 M16x165mm Threaded Bar
ZP
27005 Machined Lock Plate
FW12 M12 Flat Washer Black
Metric Imperial
520mm (L) x 120mm 20.5" (L) x 4.7"
(w) x 360mm(H) (w) x 14.2" (H)
440mm(L) x 270mm 17.3" (L) x 10.6"
(W) x 150mm (H) (W) x 5.9 (H)
14 kg ± 0.5 kg 30.9 lb ± 1.1 lb
16 kg ± 0.5 kg 35.3 lb ± 1.1 lb
https://www.teknatool.com/support/
Qty
1
1
1
1
2
2
2
1
1
1
2
in writing)
Contact us at:
