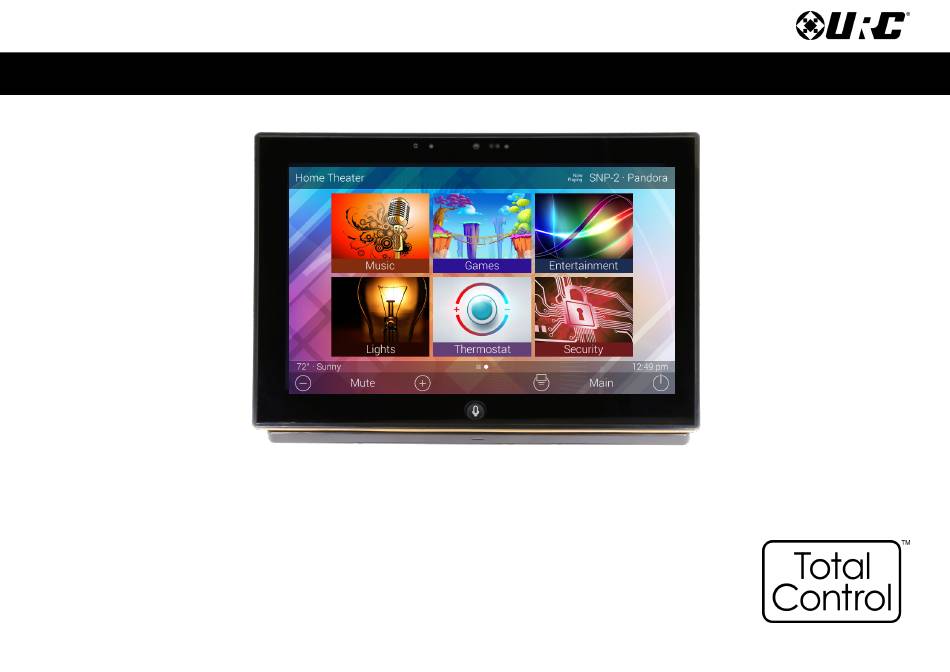

  • Page 1 TDC-8300 Total Control Owner’s Manual TDC-8300 Owner’s Manual...
  • Page 2 Brightness.........................8 Pickup Sensor………………………………………………………………..…………….9 Contact Support: Proximity Sensor......................9 Total Control is a URC product sold direct only. For questions or System Information....................10 assistance contact your Custom Installer/Programmer. Network ........................11 Power........................15 My Installer/Programmer Voice Assistant .......................16...

  • Page 3: Features And Benefits

    TDC-8300 Total Control Owner’s Manual Features and Benefits The TDC-8300 Handheld Touch Screen is one of URC’s most advanced devices that is optimized for usage with Total Control. Enjoy these key features: Amazon Alexa This keypad is capable of integrating with Amazon Alexa devices, bringing voice control to home automation solutions.

  • Page 4: Charging Dock

    TDC-8300 Total Control Owner’s Manual Parts List The following is included in the box: TDC-8300 Charging Dock Lithium-ion Battery USB-C Cable Power Supply Table of Contents...
  • Page 5 Holding the button for twenty (20) seconds Factory Defaults the keypad. DO not use this unless instructed by URC or your custom installer H. Battery Cover: Covers the battery compartment of the TDC-8300. I. Battery Cover Release Button: Pressing this button will release the battery cover.
  • Page 6 • Microphone Button: Press and hold the microphone button on the TDC-8300 to speak to Alexa. Double-tap the button to turn on or off the microphone. • Microphone Button Notification Colors: Alexa notifications are reflected on the TDC-8300 through the Microphone Button. It is able to glow in several different colors, indicating the microphone’s current...

  • Page 7: Settings Menu

    • Sleep Settings: Manage when the LCD screen turns OFF. • General: Contains all the general settings for the TDC-8300. Allows the adjustment of Date, Time, and Temperature Scale settings. • Sound: Adjust the volume of the audio feedback, intercom alert level and door station alert level when pressing buttons on the interface.

  • Page 8: Sleep Settings

    Owner’s Manual Sleep Settings Control when the TDC-8300 LCD turns OFF with the following settings: 1. On Battery Settings: When the TDC-8300’s is not on the charger or not plugged in: • Use the + and - signs to determine when the LCD will turn off. The time options are from 10 seconds to 3 minutes.
  • Page 9 TDC-8300 Total Control Owner’s Manual General Using the left and right arrow keys, enter the values of each category: 1. Date: The following values can be changed: • Month • • Year 2. Time: The following values can be changed: •...
  • Page 10 Sound Brightness Use the plus and minus buttons to raise or lower the TDC-8300’s audio Use the plus and minus buttons to raise or lower the TDC-8300’s display levels. Dragging the slider to the left or right will also adjust it to a brightness.

  • Page 11: Pickup Sensor

    Proximity Sensor Use the left and right arrow buttons to decrease or increase the Use the plus and minus buttons to raise or lower the TDC-8300’s TDC-8300’s Pickup Sensor sensitivity, with Off being the lowest setting Proximity Sensor sensitivity. Dragging the slider to the left or right will and High being the highest setting.

  • Page 12: System Information

    TDC-8300. This information is only needed by a custom installation professional or URC Technical Support. • Please consult with URC’s Tech Support before using the UPDATE feature. Return to Settings Menu Page Table of Contents...
  • Page 13 TDC-8300 Total Control Owner’s Manual Network Network Status To view the network status of the device: 1. Select in the bottom left corner. 2. The status will now be displayed indicating the Status, Network Name and the Signal Strength. Return to Settings Menu Page...
  • Page 14 To view the Preferred List: 1. Select Preferred List. 2. Displays the List of SSID’s that have been added to the TDC-8300. Using the radio buttons give you the option to choose which one you would like to connect to.
  • Page 15 TDC-8300 Total Control Owner’s Manual Network (cont’d) Wireless Search When viewing the Wireless Search list, the base station will scan the area for available WiFi networks. To view the Wireless Search list: 1. Select Wireless Search. 2. The Wireless Search list will consist of the available WiFi networks showing the assigned network, networks that don’t require passwords and...
  • Page 16 This option displays important information about the current network. CAUTION, these settings should ONLY be changed by a professional. Entering values without specific instruction could easily result in the TDC-8300 failing to function correctly. Here is the information that can be displayed here: 1. Select Network Information.
  • Page 17 Total Control Owner’s Manual Power The TDC-8300 displays a Power Remaining value and Low Battery Warning to inform the end-user that it requires charging. On this menu, use the left and right arrows to set the battery charge level which triggers this warning.
  • Page 18 TDC-8300 Total Control Owner’s Manual Voice Assistant The Voice Assistant menu is where Alexa integration settings are located. Select Alexa Voice Assistant to access the individual settings. Currently this menu shows the Alexa Voice Assistant and will include other Voice Assistant services when they are supported in Total Control.
  • Page 19 Some options are not available until Alexa has been enabled. Login To use Alexa, the TDC-8300 must be added to an Amazon account. This requires the use of a web browser to complete. Perform the following to enable Alexa: 1.
  • Page 20 3. A new window appears and provides a device code. This code will need to be entered on Amazon’s website at https://amazon.com/us/code. 4. After logging into your Amazon account, enter the provided device code to register the TDC-8300 to the account. Table of Contents...
  • Page 21 Owner’s Manual Alexa Voice Assistant (cont’d) 5. A permissions page appears, providing a summary of Alexa’s services. Select Allow to complete the process. 6. The registration process is now complete. Return to the TDC-8300 to finish the process. Table of Contents...
  • Page 22 TDC-8300 Total Control Owner’s Manual Alexa Voice Assistant (cont’d) 7. Select Next to move through the tip screens. On the third screen, select Done to complete the login process. Table of Contents...
  • Page 23 TDC-8300 Total Control Owner’s Manual Logout To disable the Alexa Voice Assistant, perform the following: 1. Select Logout. 2. A confirmation window appears. Select Yes to complete the process. Table of Contents...
  • Page 24 TDC-8300 Total Control Owner’s Manual Logout (cont’d) 3. The TDC-8300 returns to the Voice Assistant menu. When enabled, a green icon appears on the right side of the button. Table of Contents...

  • Page 25: Audio Settings

    TDC-8300 Total Control Owner’s Manual Audio Settings Select Audio Settings from the menu to configure voice and audio levels for the Alexa Voice Assistant. Table of Contents...
  • Page 26 TDC-8300 Total Control Owner’s Manual Audio Settings (cont’d) Select Audio Settings from the menu to configure voice and audio levels for the Alexa Voice Assistant. A. Alexa Voice Volume: How soft or loud Alexa will speak when replying. B. Notification Volume: How soft or loud Notification audio will play.
  • Page 27 TDC-8300 Total Control Owner’s Manual Language Several languages, along with several variations, are available for selection. Table of Contents...
  • Page 28 TDC-8300 Total Control Owner’s Manual Removing the TDC-8300 from an Amazon Account Perform the following from the Amazon website to remove a device from an account: 1. From the Your Account page, select “Your devices and content” from the menu.
  • Page 29 TDC-8300 Total Control Owner’s Manual 4. On the Device Summary page, select Deregister. Voice recording data may also be deleted at this time for privacy concerns. 5. Select Deregister again to complete the process. Table of Contents...

  • Page 30: Factory Default

    This should only be attempted by a custom install professional that is familiar with Total Control or under instruction from URC Technical Support. Selecting this option resets the TDC-8300 to its factory state and does not function until the device is reprogrammed by a custom install professional.
  • Page 31 Intercom The Audio-Video Intercom Settings menu is the location where the Intercom features must be enabled. By default this feature is disabled, it must be enabled in order for the TDC-8300 to communicate with other Intercom-Enabled devices. • Enable Intercom: Enables the audio intercom function. Once...
  • Page 32 TDC-8300 Total Control Owner’s Manual Intercom (cont’d) Navigating the Intercom Menu The TDC-8300 has the capability of communicating across the home network to any URC Intercom-Enabled device. Accessing the Intercom button is performed by swiping down on the Title Bar.

  • Page 33: Specifications

    TDC-8300 Total Control Owner’s Manual Specifications Limited Warranty Statement https://www.urc-automation.com/legal/warranty-statement/ These are the technical specifications for the TDC-8300: End User Agreement Microprocessor: ARM Cortex-A55 Core 1.8GHz The terms and conditions of the End User Agreement available at https://www.urc-automation.com/legal/end-user-agreement/ shall apply.
  • Page 34 Use care to avoid dropping the battery or subjecting it to severe impact that • Declaration of Conformity could damage it. “Hereby, Universal Remote Control, Inc. Declares that this TDC-8300 is in • The battery should not be immersed in water. compliance with the Radio Equipment Directive 2014/53/EU.”...

  • Page 35: Declaration Of Conformity

    : S-Tech Won Inc. Company Address : Sanggadong-303, 423, Sanho-daero, GUMI-SI, GYEONGSANGBUK-DO, REPUBLIC OF KOREA Contact Information : Phone: (+82)-54-465-5701 Product Name : Touch Screen Controller Model Name : TDC-8300 This product herewith complies with requirements Radio equipment Directive(2014/53/EU) issued by the Commission of the European Community Compliance with these directives implies conformity to the following European Community ...
  • Page 36 Order Number : GETEC-C1-24-229 Test report Number : GETEC-E2-24-038 Type of Equipment : Touch Screen Controller Model Name : TDC-8300 Trade Mark : URC Applicant : S-Tech Won Inc. Applicant Address : Sanggadong-303, 423, Sanho-daero, GUMI-SI, GYEONGSANGBUK-DO, 39243, REPUBLIC OF KOREA...
