URC Smart 1-Line Instruction Manual

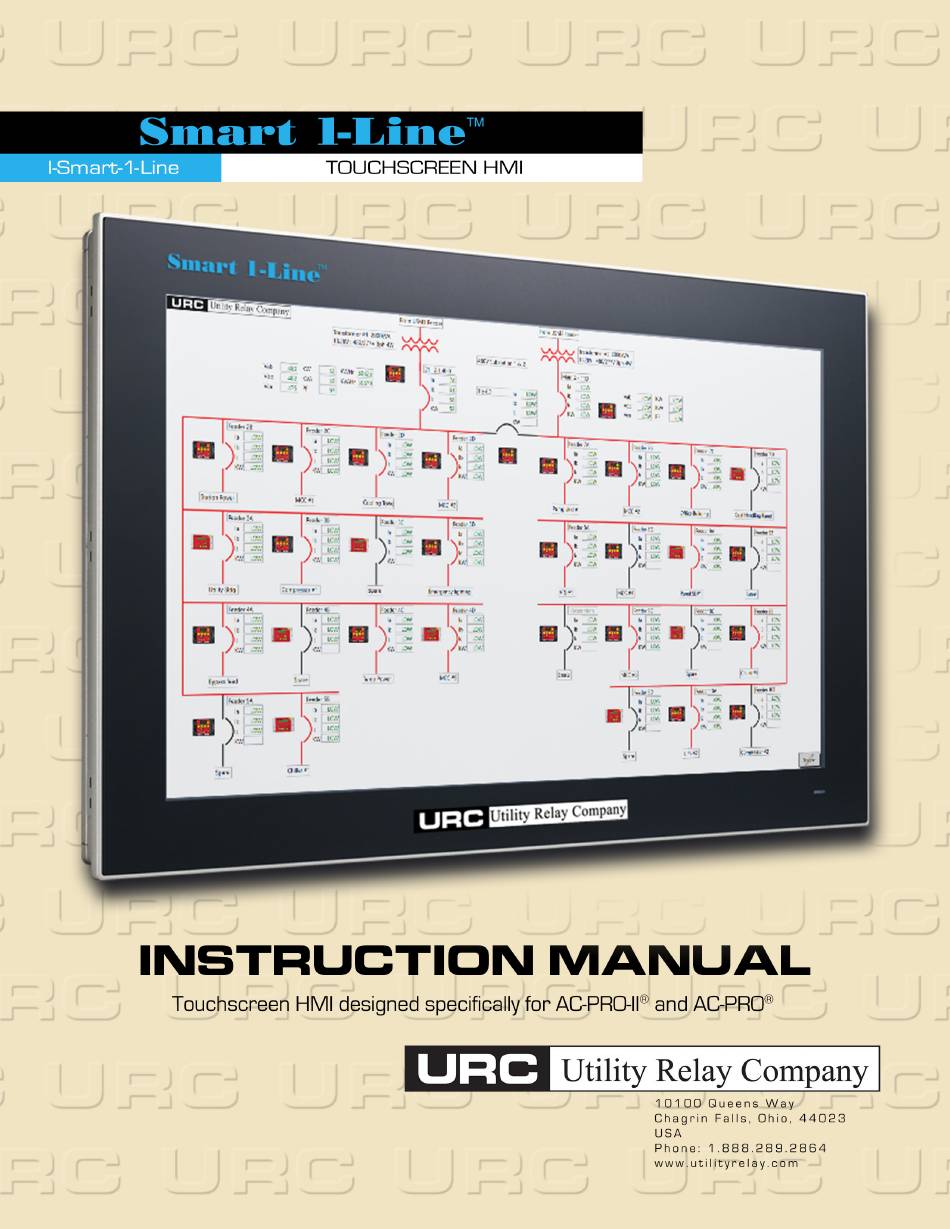

URC Smart 1-Line Instruction Manual

Touchscreen hmi designed specifically for ac-pro-ii and ac-pro
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart 1-Line and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for URC Smart 1-Line

Summary of Contents for URC Smart 1-Line

  • Page 3: Table Of Contents

    1.1 Typical System Diagrams ................5 1.1.1 RS-485 Direct Connection ..............5 1.1.2 External RS-485-to-Ethernet Modbus Gateway (optional) ..... 6 1.1.3 Local Smart 1-Line + Remote Smart 1-Line ........... 6 1.2 Items Included ....................7 1.3 Accessories ...................... 7 1.4 Warnings ......................7 2.0 Installation .......................
  • Page 4 7.1 Operating System ..................39 7.2 Internet and/or Server Connections ............... 39 7.3 PC & Windows Settings ................. 39 7.3.1 Windows Accounts and Passwords ............. 39 “Smart 1-Line” user account ..........39 7.3.1.1 “Administrator” account ............39 7.3.1.2 7.3.2 Screen Timeout and Brightness settings ..........40 7.4 Other applications ..................
  • Page 5 Figure 2: Typical Diagram #1: RS-485 Direct (Modbus RTU) ........5 Figure 3: Typical Diagram #2: External Modbus Gateway (Modbus TCP) ....6 Figure 4: Typical Diagram #3: Local Smart 1-Line + Remote Smart 1-Line ..... 6 Figure 5: VESA Mounting holes ................... 8 Figure 6: Rear Connections ..................

  • Page 6: Introduction And Overview

    Instruction Manual Rev 1.01 www.utilityrelay.com Introduction and Overview Based on a rugged, fanless, touch screen industrial computer with a solid state drive and a 21.5" high-definition touchscreen, the Smart 1-Line™ is URC's modern turn-key solution for monitoring ® ® your AC-PRO-II and AC-PRO networks at one convenient location.

  • Page 7: Typical System Diagrams

    The standard method for connecting trip units to the Smart 1-Line is a Direct RS-485 connection to the serial port on the Smart 1-Line. See the figure below for an example. See Section 3 for Settings. Figure 2: Typical Diagram #1: RS-485 Direct (Modbus RTU)

  • Page 8: External Rs-485-To-Ethernet Modbus Gateway (Optional)

    Instruction Manual Rev 1.01 www.utilityrelay.com 1.1.2 External RS-485-to-Ethernet Modbus Gateway (optional) Figure 3: Typical Diagram #2: External Modbus Gateway (Modbus TCP) 1.1.3 Local Smart 1-Line + Remote Smart 1-Line Figure 4: Typical Diagram #3: Local Smart 1-Line + Remote Smart 1-Line Page 6...

  • Page 9: Items Included

    Amazon.com) Warnings WARNING! 1. The Smart 1-Line information should not be exclusively relied on for situations that are critical to human safety and/or prevention of damage to equipment. All conditions shall be verified by separate means. 2. The Smart 1-Line MUST be updated if power distribution system changes occur. Examples are replacing breakers, exchanging breakers, new breakers or loads, switchgear modifications, etc.

  • Page 10: Installation

    Any heavy duty VESA 100mm x 100mm capable of supporting 30 lbs can be used. (The Panel PC weighs approximately 15 lbs). If specified, URC can supply the Panel PC OEM wall mount kit along with the Smart 1-Line. Contact URC for additional information.

  • Page 11: Rs-485 Network

    AC-PRO-II Note: communications success with maximum lengths may vary depending on the environment. Figure 8: RS-485 Maximum Recommended Cable Lengths Note: the above maximum lengths are based on URC testing of direct RS-485 connection to The Smart 1-Line. 2.3.2 Termination circuits URC does NOT recommend “typical”...

  • Page 12: Modbus Tcp Communications To Other Systems

    2.4.2 Modbus TCP communications to other systems When the RS-485 network is wired directly to the Smart 1-Line, the Smart 1-Line can act as a “Modbus server” to other systems (“clients”). Requirements for using the Smart 1-Line as a “Modbus server” to other systems: •...

  • Page 13: Designer Mode

    The Designer Mode toolbar contains all of the items and settings required to setup your system. 3.1.2.3 Adding items In Designer Mode: To add items to your Smart 1-Line, simply tap or click an item in the toolbar, and then tap or click in the drawing area.

  • Page 14: Designer Mode Toolbar

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com 3.1.2.7 Designer Mode Toolbar Using the Designer Mode toolbar, simply click or tap on the symbol/item you want to add, and then click or tap at the location where you want to add it.

  • Page 15: Figure 12: Designer Mode 1-Line Drawing Example

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com Figure 12: Designer Mode 1-Line Drawing example Page 13...

  • Page 16: Smart 1-Line Settings

    ALL trip units must be set to 9600. (the AC-PRO baud rate is fixed at 9600). Select the “Parity” to match the trip unit settings. The Parity setting on the Smart 1-Line and all of the trip units MUST be set to the same setting.

  • Page 17: Figure 14: Modbus Settings - Example For Rs-485 Direct Connection

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com Figure 14: Modbus Settings - Example for RS-485 Direct Connection Select “Modbus TCP” if your trip unit R-485 network connects to an external Ethernet gateway. (See Figure 3) See example setting window below.

  • Page 18: Timing Settings

    Adjusts how long the Smart 1-Line will wait for a reply from each trip unit. Number of Retries per Request: Adjusts how many times the Smart 1-Line will retry a data request before determining that the trip unit is not responding.

  • Page 19: Modbus Server Settings

    Otherwise, the default settings should be used. If the trip units are connected to the Smart 1-Line via RS-485, the Smart 1-Line can serve data to “other systems”, via its internal Modbus Server application. If “other systems” will obtain data from the Smart 1-Line, the Modbus Server settings will need to be changed.

  • Page 20: Preferences Settings

    Smart 1-Line screen. However, any size logo can be used. For reference & consideration, the entire Smart 1-Line screen is 1920 x 1080. Hence, a 1920 x 1080 logo would use up the whole screen, making zero 1-Line items visible. See Figure 20 for an example that shows a logo in the upper right corner.

  • Page 21: Diagnostics (Settings)

    Communications status box. • Log Level: This setting should remain at the default setting unless directed by URC for troubleshooting purposes. This setting determines how much information the Smart 1-Line logs software events internally. A setting of 1 represents the least amount of data logging.

  • Page 22: Trip Unit Settings

    Baud Rate must be set to match the Smart 1-Line or external gateway baud rate setting. • Parity must be set to match all other trip units & Smart 1-Line. If there are any AC-PRO trip units on the RS-485 network, set the AC-PRO-II parity to None. Otherwise, set AC-PRO-II trip units to Odd or Even.

  • Page 23: Operation

    Operation Run Mode The normal operating mode of the Smart 1-Line is “Run Mode”. In this mode of operation, the Smart 1-Line will periodically request information from each trip unit (breaker). It will use this information to update the values and graphics on the 1-Line diagram. Specifically, it will request info from each unique trip unit address that is included in the “Designer Mode”...

  • Page 24: Breaker Block

    ▪ NOTE: This state is described as Open or Unknown as many breakers are not presently supplied with URC limit switches. Therefore, in many applications, current flow is used to indicate position, and even if current is “Low”, the breaker could still be closed.

  • Page 25: Detailed Breaker Data

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com 4.1.2 Detailed Breaker Data While in Run Mode, any breaker that is actively communicating will have a Red symbol color or Black symbol color. If the breaker is in this state, you can tap or click on the breaker symbol to obtain additional information.

  • Page 26: Readings Tab (Ac-Pro-Ii Only)

    Readings or AC-PRO tab, and tap/click the (Alarm) Reset button. This will clear the alarm in the trip unit, and it will remove the Red X from the breaker symbol in the Smart 1-Line. This reset button can also be used to reset some other alarms. •...

  • Page 27: Figure 25: Readings Tab (Ac-Pro-Ii Only)

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com Figure 25: Readings Tab (AC-PRO-II only) Page 25...

  • Page 28: Tripping A Breaker

    Utilizing this feature to open a breaker before taking it out of service is recommended, as the AC-PRO-II can record the breaker mechanism time for its important “First Operation”, which provides indication if the breaker requires service. This is URC’s patented Sluggish Breaker Detection feature. See the AC-PRO-II Instruction Manual for additional information.

  • Page 29: Waveforms Tab (Ac-Pro-Ii Only, Fw V2.0.27 Or Higher)

    Date & Timestamp • Waveforms can be saved to an electronic file by using the File menu, then selecting Save As. The electronic file can be saved to the Smart 1-Line or to a customer-supplied USB stick. • Previously saved waveform files can be opened by using the File menu, then selecting Open.

  • Page 30: Trip History Tab (Ac-Pro-Ii Only)

    • Trip data can be saved to an electronic file by using the File menu, then selecting Save As. The electronic file can be saved to the Smart 1-Line or to a customer-supplied USB stick. • Previously saved waveform files can be opened by using the File menu, then selecting Open.

  • Page 31: Settings Tab (Ac-Pro-Ii Only)

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com 4.1.2.5 Settings tab (AC-PRO-II only) The Settings tab will appear on the right side of the window for AC-PRO-II trip units. It provides the following information, features, and capabilities: • View all AC-PRO-II settings (Read-only) •...

  • Page 32: Tcc/Tests Tab (Ac-Pro-Ii Only)

    • Save TCC/Tests data to an electronic file by using the File menu, then selecting Save As. The electronic file can be saved to the Smart 1-Line or to a customer-supplied USB stick. • Import previously saved TCC Test files (by using the File menu, then selecting Open).

  • Page 33: Ac-Pro Tab (Includes Readings, Settings, Last Trip)

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com 4.1.2.7 AC-PRO tab (includes Readings, Settings, Last Trip) The AC-PRO tab includes all information on one tab and will appear on the right side of the window for AC-PRO trip units. It provides the following information, features, and capabilities: •...

  • Page 34: Breaker Tests Tab

    This tab allows for text entry of breaker information and data. In addition, previously saved Breaker Tests files can be imported to the Smart 1-Line using a USB flash drive. Contact URC for additional information.

  • Page 35: Trip Unit Tests Tab

    This tab allows for text entry of trip unit and trip unit test data. In addition, previously saved Trip Unit Tests files can be imported to the Smart 1-Line using a USB flash drive. Contact URC for additional information.

  • Page 36: Bus

    The Description Box is a general-purpose block that can be used to display text in any area of the Smart 1-Line. Common uses are: Load names, Substation names, Transformer names, Address indication (if viewing addresses is desired in Run Mode), notes, etc.

  • Page 37: Energy Data Block

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com 4.1.8 Energy data block When in Run Mode, the Energy data blocks will display energy values from the trip unit with the address entered into the Energy block in Designer Mode. The Energy Block contains: •...

  • Page 38: Communications Status Box

    “Get Logs” button: This command allows a software log (compressed/zip file, .zip file extension) to be saved to a file on the Smart 1-Line or to a USB drive. These logs can be sent to URC for analysis and troubleshooting purposes.

  • Page 39: Software And Firmware

    Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com Software and Firmware Features by product & version Smart 1-Line Version 1 Software: Features & functionality by trip unit product/version AC-PRO with AC-PRO-II PT Module (with VDM strongly recommended. See Notes) Silver case + RS-485 option FW v1.2 -...

  • Page 40: System Performance & Speed

    Example if trip units are not powered up: If the Smart 1-Line is making data requests to trip units that aren’t responding (because no current is flowing and/or they aren’t powered up), then the communications system will become backed up.

  • Page 41: Operating System

    IT Administrator be involved. Contact URC if you have questions. PC & Windows Settings The Smart 1-Line is specifically configured to optimize and simplify use of the PC for the purpose of the Smart 1-Line ONLY. Any other use is not supported.

  • Page 42: Screen Timeout And Brightness Settings

    IMPORTANT: Do not change or customize any Windows settings that are not specifically mentioned in this document. Doing so could put the Smart 1-Line in a state where it is mis-operating, not displaying information correctly, or completely unusable. IMPORTANT: The Smart 1-Line was specifically designed and tested with the Windows configuration and settings that it shipped with.

  • Page 43: Panel Pc Specifications

    Enclosure Industrial, Solid Aluminum Alloy Cooling Fanless Surface mount, VESA 100x100mm hole pattern. Mounting URC offers optional mount or mount can be supplied by customer. Warranty The Smart-1-Line product features a 2-year warranty. See http://www.utilityrelay.com/Warranty.html for more information. Software updates Contact URC for information about available software updates.

  • Page 44: Troubleshooting

    The “Get Logs” command is accessible via the Help button (See Section 4). It allows a software log file (compressed/zip file, .zip file extension) to be saved to a file on the Smart 1-Line or to a USB drive. These log files can be sent to URC for analysis and troubleshooting purposes.
  • Page 45 Smart 1-Line Instruction Manual Rev 1.01 www.utilityrelay.com Utility Relay Company 10100 Queens Way Chagrin Falls, OH 44023 www.utilityrelay.com Phone 1.888-289-2864 Fax: 440-708-1177 For the latest version of Instruction Manuals, visit: http://www.utilityrelay.com/Side_Bar/Instruction_Manuals.html Page 43...
