TKP-7600
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKP-7600 and is the answer not in the manual?

Questions and answers

Related Manuals for URC TKP-7600

Summary of Contents for URC TKP-7600

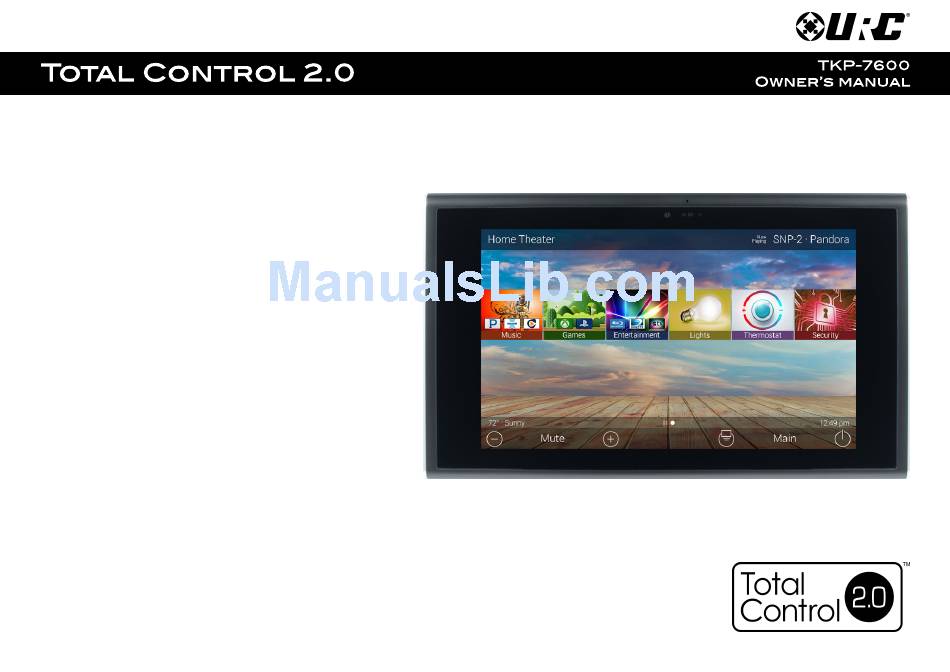

  • Page 1 TKP-7600 Owner’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Introducing the TKP-7600 Thank you for purchasing URC’s TKP-7600 In-Wall Network Keypad. Its easy and intuitive use helps to simplify your life while adding control of more things than thought possible. Features and Benefits..................1 Online Help: Parts List.........................3...

  • Page 3: Features And Benefits

    Features and Benefits: The TKP-7600 In-Wall Network Keypad is one of URC’s most advanced devices that is optimized for usage with Total Control 2.0. Enjoy these key features: Updated User Experience: This device has the capability of using URC’s Total Control 2.0 software suite. Using this software provides this device with a modern “look and feel”...
  • Page 4 This setting can be adjusted in the device’s Settings menu. Flexible Orientation: The TKP-7600 offers the ability to display the device in either portrait or landscape mode making it the perfect keypad for almost any room. This feature can only be set from within the Accelerator 2.0 software, speak to a custom...

  • Page 5: Parts List

    Part List: Included in the TKP-7600: 1x - TKP-7600 Network Keypad 4x - Mounting Screws 1x - Mounting Ring 4x - Spacers TKP-7600 Mounting Ring Mounting Screws Spacers...

  • Page 6: Installation

    Installation: The TKP-7600 is wall mountable and fits into a standard dual gang (J-box or Mud Ring) opening. Prior to installation, make sure power is available at the preferred location. Power can be supplied to the TKP-7600 through an Ethernet (RJ45) cable connected to a PoE (Power over Ethernet) in either of the following ways: ●...
  • Page 7 Mounting Ring 2. Mount the wall-plate to the two-gang retro-box. TKP-7600 3. Connect the Ethernet cable to the rear of the supplied TKP-7600. 4. The TKP-7600 easily snaps into the wall-plate. The keypad mount rotates to accommodate landscape or portrait viewing modes.

  • Page 8: Main Menu Navigation

    Main Menu is dictated by the custom integrator. ● Right Swipe: Swipe right to reveal the Scenes Menu. The Scenes Menu contains URC Scenes that are created by the custom integrator. Return to the Main Menu by swiping left from the Scenes Menu.
  • Page 9 Ribbon View (Landscape & Portrait): Main Menu: View Modes Total Control 2.0 features two different view modes for the TKP- 7600. Each view mode has its own unique properties that compliment the user experience. The view mode must be programmed from within the Accelerator 2.0 software, speak to a custom home integrator for more details.

  • Page 10: Title Bar

    Title Bar: The Title Bar is always present regardless of what menu and/or room the TKP-7600 is currently using. On the left of the Title Bar, the current room the TKP-7600 is controlling is Now Playing Current Room displayed. Selecting it reveals the Rooms Menu.

  • Page 11: Room's Menu

    This button can only be used to turn off a room. 4. Now Playing: This section displays what device/activity is currently active in that room. Selecting this jumps the TKP-7600 to that device/activity’s menu for control. 5. Room Linking: This feature is only available on DMS Audio device.

  • Page 12: Room Linking

    Room Linking: Remember, Room Linking can only be used by DMS Zones/Areas. The following steps take place from within the Room’s Menu: 1. Select the Room Link button, this displays the Room Linking Menu. 2. Select which rooms in the system to link. Only rooms that are DMS Zones/Areas appear on the Room Linking Menu.

  • Page 13: Now Playing

    This means that in the Home Theater the SNP-2 is using Pandora currently. Tapping the Now Playing area jumps the TKP-7600 to the menu for the device in that section. In the example this mean that, once tapped, the interface jumps to the SNP-2 device menu for control.

  • Page 14: Core Buttons

    Core Buttons: These buttons are almost always on display. Each one of these buttons has a specific function: 1. Volume: Used to control an active audio device. 2. Shortcut Popup: Use this to display the Shortcut Popup Menu. This menu contains up to six (6) current room activities. 3.

  • Page 15: Shortcut Popup Menu

    Shortcut Popup Menu: The Shortcut Popup Menu can holds the end-user’s favorite or most frequently used devices/activities and places them in one easy to access location. Adding Shortcuts: Follow these steps to add a Shortcut: 1. Locate an available button and hold it down until the status bar on the top of the display fills.
  • Page 16 Just tap on a Shortcut button to launch that device/activity. Remember, this menu can only hold up to six (6) items and each item must already be a device/activity programmed into that current room. Removing Shortcuts: Follow these steps to remove a Shortcut: 1.

  • Page 17: Status Bar

    Status Bar: Located above the Core Buttons, this section of the interface is almost always on display. The Status Bar is designed to inform the end-user of various different customizable options: 1. Metadata Information: Located to the far left, options selected from the programming software cycle through here.
  • Page 18 2. Page Indicator: The icons here represent the current page number the interface is on. However, the icon located to the left is the Scenes Menu icon. All icons to the right of that represent page numbers. 3. Time: This is always present on the right hand side of the interface.

  • Page 19: Intercom

    Intercom: The TKP-7600 has the capability of communicating across the home network to any Intercom-Enabled client (interface). There are three (3) different types of intercom calls that can be made: 1. Audio-Video: This type of call uses the camera and microphone of the calling and receiving client to provide auditory and visual feedback.
  • Page 20 4. Audio Broadcast Call: This type of call is audio communication between two or more clients. An ideal way to communicated across multiple Intercom-Enabled interfaces in almost any home.

  • Page 21: Navigating The Intercom Menu

    Navigating the Intercom Menu: As mentioned on page 8 of this document, accessing the Intercom button is performed by swiping down on the Title Bar. After selecting the Intercom button from the Title Bar Menu, the Intercom Menu displays. This menu presents the end-user with useful information: 1.

  • Page 22: Making Calls: Audio-Video

    Making Calls: Audio-Video Remember that the Intercom feature must be enabled from with in the Settings Menu. The following steps take place from the Intercom Menu, to access this menu refer to page 1. Select an available client from the Intercom Menu. After selecting a client, the three (3) call options are displayed.
  • Page 23 Slide the indicator to the top for maximum volume or slide it down to the bottom to mute the audio. To end an Audio & Video call, select the End Call button (see image at right). This immediately ends the call and returns the TKP-7600 to the Intercom Menu. End Call...

  • Page 24: Making Calls: Audio Calls

    Making Calls: Audio Calls Remember that the Intercom feature must be enabled from with in the Settings Menu. The following steps take place from the Intercom Menu, to access this menu refer to page 1. Select an available client from the Intercom Menu. After selecting a client, the three (3) call options are displayed.
  • Page 25 Slide the indicator to the top for maximum volume or slide it down to the bottom to mute the audio. To end an Audio Call, select the End Call button (see image at right). This immediately ends the call and returns the TKP-7600 to the Intercom Menu. End Call...

  • Page 26: Making Calls: Baby Monitor

    Making Calls: Baby Monitor Remember that the Intercom feature must be enabled from with in the Settings Menu. The following steps take place from the Intercom Menu, to access this menu refer to page 1. Select an available client from the Intercom Menu. After selecting a client, the three (3) call options are displayed.
  • Page 27 Slide the indicator to the top for maximum volume or slide it down to the bottom to mute the audio. To end an Audio & Video call, select the End Call button (see image at right). This immediately ends the call and returns the TKP-7600 to the Intercom Menu. End Call...

  • Page 28: Making Calls: Audio Broadcast

    Making Calls: Audio Broadcast Remember that the Intercom feature must be enabled from with in the Settings Menu. The following steps take place from the Intercom Menu, to access this menu refer to page 1. Select Broadcast Call. A list populates of all available Intercom-Enabled devices.
  • Page 29 Slide the indicator to the top for maximum volume or slide it down to the bottom to mute the audio. To end an Audio Call, select the End Call button (see image at right). This immediately ends the call and returns the TKP-7600 to the Intercom Menu. End Call...

  • Page 30: Do Not Disturb Mode

    Do Not Disturb Mode: Enabling the Do Not Disturb feature sets the current TKP-7600 unavailable. This means that the keypad cannot receive any calls from other interfaces. To enable this feature, use the slider located at the right of the text Do Not Disturb.

  • Page 31: Scenes Menu

    Scenes Menu: The Scenes Menu is dictated by the system programmer. Access this menu by swiping to the right from the Main Menu. The Scenes Menu can contain up to a hundred (100) Scenes (buttons) per room. Keep in mind that the Scene Menu is unique to each room. Tap any button on the Scenes Menu to select a particular activity.

  • Page 32: Settings Menu

    ● Network: Allows for the setting of a Dynamic or Static IP address for the TKP-7600 and also gives general info about the network. ● Intercom: This is used to set up the Intercom of the TKP-7600. ● Demo: Used to create a simulation system that the TKP-7600 can use to show off interface features.
  • Page 33 3. LCD Screen will Display a Night Mode: When selected the Start After and Duration option become active. ● Start After: The TKP-7600 times out based on the value entered here and goes into Night Mode. ● Turn Off After: The TKP-7600 turns off Night Mode after the value...
  • Page 34 ● Hour ● Minutes ● Seconds ● AM/PM ● 12 Hour/24 Hour 3. Automatically Adjust Clock for Daylight Savings: Check this box to have the TKP-7600 automatically adjust for daylight savings. 4. Temperature Scale: Set this either to Fahrenheit or Celsius.
  • Page 35 Sound: Brightness: Press the minus (-) button to lower the TKP-7600’s audio output or press the plus (+) Press the minus (-) button to lower the TKP-7600’s display brightness or press the button to increase the volume. plus (+) button to increase the brightness.
  • Page 36 Proximity Sensor: Press the minus (-) button to lower the sensitivity on the TKP-7600’s Proximity Sensor or press the plus (+) button to increase the sensitivity. Additionally, dragging the slider to the right increases the sensitivity while dragging it to the left decreases it. The maximum distance of the proximity sensor is about three (3) feet.
  • Page 37 System Information: Although none of the information can be modified. These System Pages display important information about the TKP-7600. These pages are only needed by a custom install professional or by URC Technical Support.
  • Page 38 Caution, these settings should ONLY be changed by a professional. Entering values without specific instruction could easily result in the TKP-7600 failing to function correctly. Here is the information that can be displayed here: 1. Connection: Displays the status of the network connection, connected or not connected.
  • Page 39 The Audio-Video Intercom Settings menu is the location where the Intercom features must be enabled. By default this feature is disabled, it must be enabled in order for the TKP-7600 to communicate with other Intercom- Enabled devices. ● Enable Intercom: Enables the audio intercom function. Once...
  • Page 40 This should only be attempted by a custom install professional that is familiar with Total Control 2.0 or under instruction from URC Technical Support. Selecting this option resets the TKP-7600 to its factory state and does not function until the device is reprogrammed by a custom install professional.

  • Page 41: Specifications

    Communications Commissions (“FCC”) regarding electromagnetic interference caused by electronic/computing devices and to the extent that the URC equipment and/or the URC software fails to so comply, URC shall, at its own expense, take all reasonable measures to promptly cause such to comply.
  • Page 42 "B stock" or consumables (such as batteries). This limited warranty is invalid In the event of any warranty claim, URC will, at its sole option, repair the URC if the factory applied serial number has been altered or removed from the URC equipment using new or comparable rebuilt parts, or exchange the URC equipment equipment.
  • Page 43 POSSIBILITY OF SUCH DAMAGES. Federal Communication Commission IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO DATA, Interference Statement COMPUTER SYSTEMS OR COMPUTER PROGRAMS. URC’S LIABILITY, IF ANY, FOR This equipment has been tested and found to comply with the limits for a Class B DIRECT DAMAGES OF ANY FORM SHALL BE LIMITED TO ACTUAL DAMAGES, digital device, pursuant to part 15 of the FCC Rules.
  • Page 44 (1) this device may not cause harmful interference, and ● Declaration of Conformity (2) this device must accept any interference received, including interference that “Hereby, Universal Remote Control Inc. declares that this TKP-7600 is in may cause undesired operation. compliance with the Essential requirements Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.
