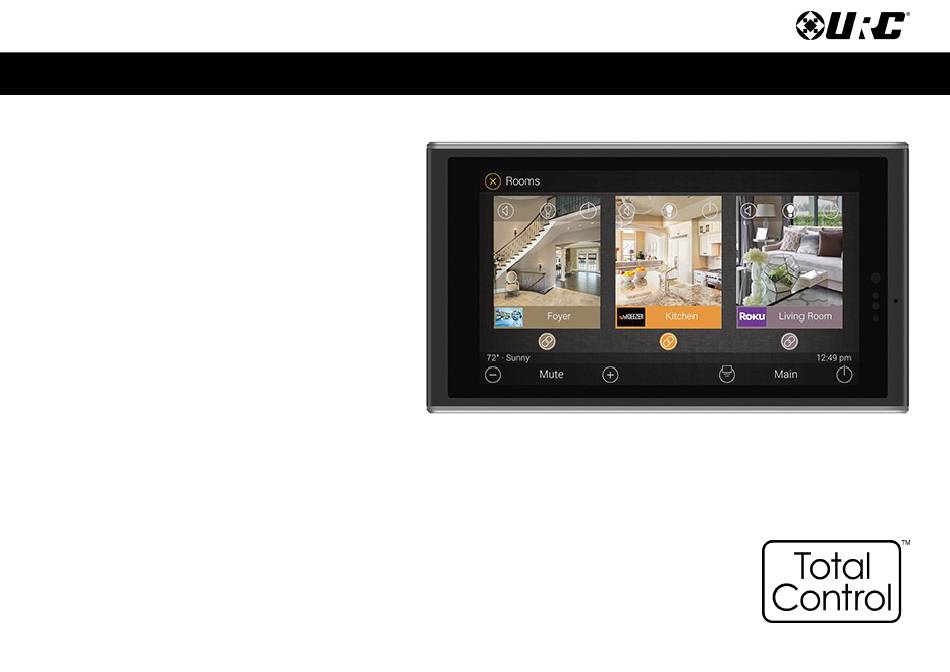

  • Page 1 TKP-5600 Total Control Owner’s Manual TKP-5600 Owner’s Manual...

  • Page 2: Table Of Contents

    Main Menu Navigation ...... 5 Sleep Settings ......28 Contact Support Total Control is a URC product sold direct only. For questions or assistance contact Main Menu: View Modes ... 6 General ......... 29 your Custom Installer/Programmer. Title Bar ..........7 Sound ..........

  • Page 3: Features And Benefits

    TKP-5600 Total Control Owner’s Manual Features and Benefits The TKP-5600 In-Wall Network Keypad is one of URC’s most advanced devices that is optimized for usage with Total Control. Enjoy these key features: Updated User Experience This device has the capability of using URC’s Total Control software suite. Using this software provides this device with a modern “look and feel”...

  • Page 4: Proximity Sensor

    TKP-5600 Total Control Owner’s Manual Proximity Sensor This feature allows the TKP-5600 to spring into action automatically. Utilizing its proximity sensor, the keypad can detect distances from up to three (3) feet away. This setting can be adjusted in the device’s Settings menu. Flexible Orientation The TKP-5600 offers the ability to display the device in either portrait or landscape mode making it the perfect keypad for almost any room.
  • Page 5 TKP-5600 Total Control Owner’s Manual Part List Included in the TKP-5600: • 1x - TKP-5600 Network Keypad • 1x - Mounting Ring • 4x - Mounting Screws Mounting Ring TKP-5600 Mounting Screws...

  • Page 6: Installation

    TKP-5600 Total Control Owner’s Manual One-Gang Box Installation The TKP-5600 is wall mountable and fits into a standard one-gang opening. Prior to installation, make sure power is available at the preferred location. Landscape Power can be supplied to the TKP-5600 through an Ethernet (RJ45) cable connected to a PoE (Power over Ethernet) in either of the following ways: •...

  • Page 7: Main Menu Navigation

    • Right Swipe: Swipe right to reveal the Scenes Menu. The Scenes Menu contains URC Scenes that are created by the custom integrator. Return to the Main Menu by swiping left from the Scenes Menu. • Button Tapping: On the Main Menu selecting each of these areas provide the end-user with control: A.

  • Page 8: Main Menu: View Modes

    TKP-5600 Total Control Owner’s Manual Ribbon View (Landscape & Portrait) Main Menu: View Modes Total Control features two different view modes for the TKP- 5600. Each view mode has its own unique properties that compliment the user experience. The view mode must be programmed from within the Accelerator software, speak to a custom home integrator for more details.

  • Page 9: Title Bar

    TKP-5600 Total Control Owner’s Manual Title Bar The Title Bar is always present regardless of what menu and/or room the TKP-5600 is currently using. On the left of the Title Bar, the current room the TKP-5600 is controlling is Now Playing Current Room displayed.

  • Page 10: Room's Menu

    TKP-5600 Total Control Owner’s Manual Room’s Menu Tap on the Room Name located on the left in the Title Bar to display the Room’s Menu. The Room’s Menu contains every room programmed into the system. Specific rooms may be hidden from certain interfaces, speak to the custom home integrator for that option.

  • Page 11: Room Linking

    TKP-5600 Total Control Owner’s Manual Room Linking Remember, Room Linking can only be used by DMS Zones/Areas. The following steps take place from within the Room’s Menu: 1. Select the Room Link button, this displays the Room Linking Menu. 2. Select which rooms in the system to link. Only rooms that are DMS Zones/Areas appear on the Room Linking Menu.

  • Page 12: Now Playing

    TKP-5600 Total Control Owner’s Manual Now Playing On the right hand side of the Title Bar is the Now Playing area. The Now Playing area always dictates what activity is currently playing in the room. In the example at the right, Now Playing reads “SNP-2 Pandora”. This means that in the Home Theater the SNP-2 is using Pandora currently.

  • Page 13: Core Buttons

    TKP-5600 Total Control Owner’s Manual Core Buttons These buttons are almost always on display. Each one of these buttons has a specific function: A. Volume: Used to control an active audio device. B. Shortcut Popup: Use this to display the Shortcut Popup Menu. This menu contains up to six (6) current room activities.

  • Page 14: Shortcut Popup Menu

    TKP-5600 Total Control Owner’s Manual Shortcut Popup Menu The Shortcut Popup Menu holds the end-user’s favorite or most frequently used devices/activities and places them in one easy to access location. Adding Shortcuts Follow these steps to add a Shortcut: 1. Locate an available button and hold it down until the status bar on the top of the display fills.

  • Page 15: Removing Shortcuts

    TKP-5600 Total Control Owner’s Manual Just tap on a Shortcut button to launch that device/activity. Remember, this menu can only hold up to six (6) items and each item must already be a device/activity programmed into that current room. Removing Shortcuts Follow these steps to remove a Shortcut: 1.

  • Page 16: Status Bar

    TKP-5600 Total Control Owner’s Manual Status Bar Located above the Core Buttons, this section of the interface is almost always on display. The Status Bar is designed to inform the end-user of various customization options: A. Metadata Information: Located to the far left, options selected from the programming software cycle through here.
  • Page 17 TKP-5600 Total Control Owner’s Manual B. Page Indicator: The icons here represent the current page number the interface is on. However, the icon located to the left is the Scenes Menu icon. All icons to the right of that represent page numbers. C.

  • Page 18: Intercom

    TKP-5600 Total Control Owner’s Manual Intercom The TKP-5600 has the capability of communicating across the home network to any Intercom-Enabled client (interface). There are three (3) different types of intercom calls that can be made: 1. Audio-Video: This type of call uses the camera and microphone of the calling and receiving client to provide auditory and visual feedback.
  • Page 19 TKP-5600 Total Control Owner’s Manual 3. Audio Broadcast Call: This type of call is audio communication between two or more clients. An ideal way to communicated across multiple Intercom-Enabled interfaces in almost any home.

  • Page 20: Navigating The Intercom Menu

    TKP-5600 Total Control Owner’s Manual Navigating the Intercom Menu As mentioned on page 6 of this document, accessing the Intercom button is performed by swiping down on the Title Bar. After selecting the Intercom button from the Title Bar Menu, the Intercom Menu displays.

  • Page 21: Making Calls: Audio-Video

    TKP-5600 Total Control Owner’s Manual Making Calls: Audio-Video Remember that the Intercom feature must be enabled from with in the Settings Menu. The following steps take place from the Intercom Menu, to access this menu refer to page 1. Select an available client from the Intercom Menu. After selecting a client, the three (3) call options are displayed.
  • Page 22 TKP-5600 Total Control Owner’s Manual Once the call is accepted, the TKP-5600 provides auditory and visual two-way feedback on the screen. Use the Volume Slider at the right of the video feedback to raise or slower the volume. Slide the indicator to the top for maximum volume or slide it down to the bottom to mute the audio.

  • Page 23: Making Calls: Audio Calls

    TKP-5600 Total Control Owner’s Manual Making Calls: Audio Calls Remember that the Intercom feature must be enabled from with in the Settings Menu. The following steps take place from the Intercom Menu, to access this menu refer to page 1. Select an available client from the Intercom Menu. After selecting a client, the three (3) call options are displayed.
  • Page 24 TKP-5600 Total Control Owner’s Manual Once the call is accepted, the TKP-5600 provides two-way communication between clients via audio only. Use the Volume Slider at the right of the call icon area to raise or slower the volume. Slide the indicator to the top for maximum volume or slide it down to the bottom to mute the audio.

  • Page 25: Making Calls: Audio Broadcast23

    TKP-5600 Total Control Owner’s Manual Making Calls: Audio Broadcast Remember that the Intercom feature must be enabled from with in the Settings Menu. The following steps take place from the Intercom Menu, to access this menu refer to page 1. Select Broadcast Call. A list populates of all available Intercom- Enabled devices.
  • Page 26 TKP-5600 Total Control Owner’s Manual Once the call is established, all selected devices communicate via audio. Use the Volume Slider at the right of the call icon area to raise or slower the volume. Slide the indicator to the top for maximum volume or slide it down to the bottom to mute the audio.

  • Page 27: Do Not Disturb Mode

    TKP-5600 Total Control Owner’s Manual Do Not Disturb Mode Enabling the Do Not Disturb feature sets the current TKP-5600 unavailable. This means that the keypad cannot receive any calls from other interfaces. To enable this feature, use the slider located at the right of the text Do Not Disturb.

  • Page 28: Scenes Menu

    TKP-5600 Total Control Owner’s Manual Scenes Menu The Scenes Menu is dictated by the system programmer. Access this menu by swiping to the right from the Main Menu. The Scenes Menu can contain up to a hundred (100) Scenes (buttons) per room. Keep in mind that the Scene Menu is unique to each room.

  • Page 29: Settings Menu

    Most settings do NOT require interaction with the end-user. Changing some settings could cause issues with the Total Control system, only do so when instructed by URC Technical Support. These are the available options: • Sleep Settings: Manage when the LCD screen turns OFF.

  • Page 30: Sleep Settings

    TKP-5600 Total Control Owner’s Manual Sleep Settings Below are the selectable choices available in this menu: 1. LCD Screen is Always On: When selected, the TKP-5600’s display never turns off. 2. LCD Screen will Turn Off: When selected the Turn Off After section is selectable.

  • Page 31: General

    TKP-5600 Total Control Owner’s Manual General Using the left and right arrow keys, enter the values of each category: 1. Date: The following can have its value changed: • Month • • Year 2. Time: The following can have its value changed: •...

  • Page 32: Sound

    TKP-5600 Total Control Owner’s Manual Brightness Press the minus (-) button to lower the TKP-5600’s display brightness or press the plus (+) button to increase the brightness. Sound Press the minus (-) button to lower the TKP-5600’s audio output or press the plus Additionally, dragging the slider to the right increase the display brightness while (+) button to increase the volume.

  • Page 33: Proximity Sensor

    TKP-5600 Total Control Owner’s Manual Proximity Sensor Press the minus (-) button to lower the sensitivity on the TKP-5600’s Proximity Sensor or press the plus (+) button to increase the sensitivity. Additionally, dragging the slider to the right increases the sensitivity while dragging it to the left decreases it.

  • Page 34: System Information

    TKP-5600 Total Control Owner’s Manual System Information Although none of the information can be modified. These System Pages display important information about the TKP-5600. These pages are only needed by a custom install professional or by URC Technical Support.

  • Page 35: Network

    TKP-5600 Total Control Owner’s Manual Network This option displays important information about the current network. Caution, these settings should ONLY be changed by a professional. Entering values without specific instruction could easily result in the TKP-5600 failing to function correctly. Here is the information that can be displayed here: 1.

  • Page 36: Intercom

    TKP-5600 Total Control Owner’s Manual Intercom The Audio-Video Intercom Settings menu is the location where the Intercom features must be enabled. By default this feature is disabled, it must be enabled in order for the TKP-5600 to communicate with other Intercom-Enabled devices. •...

  • Page 37: Factory Default

    Factory Default This should only be attempted by a custom install professional that is familiar with Total Control or under instruction from URC Technical Support. Selecting this option resets the TKP-5600 to its factory state and does not function until the device is reprogrammed by a custom install professional.

  • Page 38: Specifications

    Specifications These are the technical specifications for the TKP-5600: Limited Warranty Statement Microprocessor: Cortex-A9 Dual 1Ghz https://www.urc-automation.com/legal/warranty-statement/ Memory: 4GB eMMC, 1GB RAM End User Agreement Devices: Supports up to 255 devices The terms and conditions of the End User Agreement available at https://www.urc-automation.com/legal/end-user-agreement/...
  • Page 39 TKP-5600 Total Control Owner’s Manual Warning! The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Regulatory Information to the User •...
