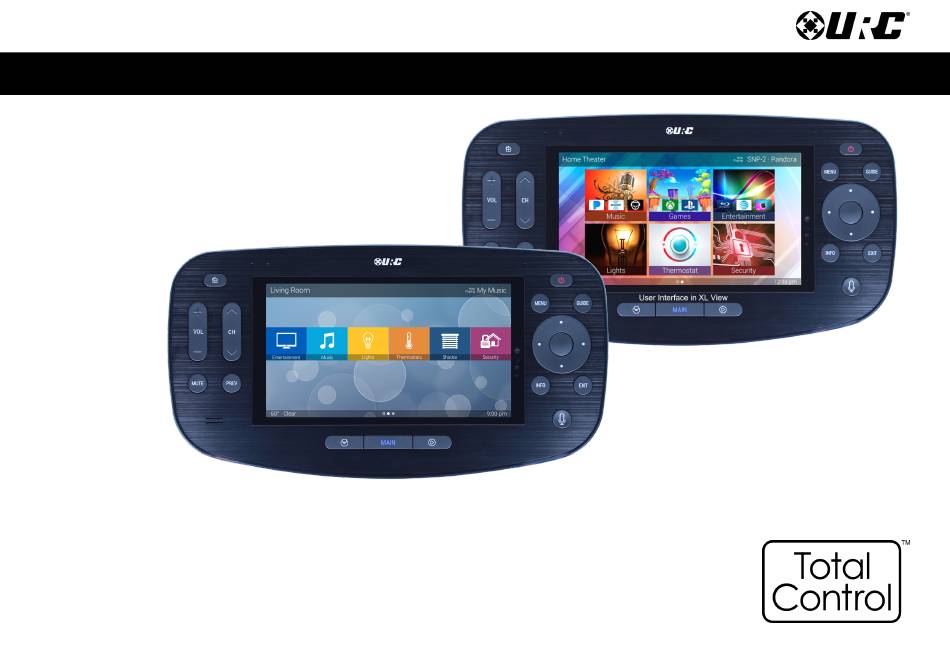

  • Page 1 TDC-5100 Total Control Owner’s Manual TDC-5100 Owner’s Manual...
  • Page 2 Sound/Brightness.....................8 support contact information. Pickup Sensor………………………………………………………………..…………….9 Proximity Sensor......................9 Contact Support: System Information....................10 Total Control is a URC product sold direct only. For questions or Network ........................11 assistance contact your Custom Installer/Programmer. Power........................15 Voice Assistant .......................16 My Installer/Programmer Alexa Voice Assistant..................17 Login......................17...

  • Page 3: Features And Benefits

    TDC-5100 Total Control Owner’s Manual Features and Benefits The TDC-5100 Handheld Touch Screen is one of URC’s most advanced devices that is optimized for usage with Total Control. Enjoy these key features: Amazon Alexa This keypad is capable of integrating with Amazon Alexa devices, bringing voice control to home automation solutions.
  • Page 4 TDC-5100 Total Control Owner’s Manual Parts List The following is included in the box: TDC-5100 Charging Dock Lithium-ion Battery USB-C Cable Power Supply Table of Contents...
  • Page 5 Holding the button for twenty (20) seconds Factory Defaults the keypad. DO not use this unless instructed by URC or your custom installer H. Battery Cover: Slide the battery cover down to remove it, so the battery can be connected to the TDC-5100.
  • Page 6 TDC-5100 Total Control Owner’s Manual Alexa Features When integrated with Amazon’s Alexa Voice Assistant, an end-user is able to take advantage of it’s various features and services within their Total Control system. • Microphone Button: Press and hold the microphone button on the TDC-5100 to speak to Alexa.

  • Page 7: Settings Menu

    Settings button. Most settings do NOT require interaction with the end-user. Changing settings may cause issues with the Total Control system, only do so when instructed to by URC Technical Support. • Sleep Settings: Manage when the LCD screen turns OFF.

  • Page 8: Sleep Settings

    TDC-5100 Total Control Owner’s Manual Sleep Settings Control when the TDC-5100 LCD turns OFF with the following settings: 1. On Battery Settings: When the TDC-5100’s is not on the charger or not plugged in: • Use the + and - signs to determine when the LCD will turn off. The time options are from 10 seconds to 3 minutes.
  • Page 9 TDC-5100 Total Control Owner’s Manual General Using the left and right arrow keys, enter the values of each category: 1. Date: The following values can be changed: • Month • • Year 2. Time: The following values can be changed: •...
  • Page 10 TDC-5100 Total Control Owner’s Manual Sound Brightness Use the plus and minus buttons to raise or lower the TDC-5100’s audio Use the plus and minus buttons to raise or lower the TDC-5100’s display levels. Dragging the slider to the left or right will also adjust it to a brightness.

  • Page 11: Pickup Sensor

    TDC-5100 Total Control Owner’s Manual Pickup Sensor Proximity Sensor Use the left and right arrow buttons to decrease or increase the Use the plus and minus buttons to raise or lower the TDC-5100’s TDC-5100’s Pickup Sensor sensitivity, with Off being the lowest setting Proximity Sensor sensitivity.

  • Page 12: System Information

    System Information Although none of this information can be modified, the System Information page displays important details about the TDC-5100. This information is only needed by a custom installation professional or URC Technical Support. Return to Settings Menu Page Table of Contents...
  • Page 13 TDC-5100 Total Control Owner’s Manual Network (cont’d) Network Status To view the network status of the device: 1. Select in the bottom left corner. 2. The status will now be displayed indicating the Status, Network Name and the Signal Strength. Return to Settings Menu Page Table of Contents...
  • Page 14 TDC-5100 Total Control Owner’s Manual Network (cont’d) Preferred List The Preferred List menu will display a list of SSID’s that have been added to the TDC-5100 using the Wireless Search or the Add Other methods. To view the Preferred List: 1.
  • Page 15 TDC-5100 Total Control Owner’s Manual Network (cont’d) Wireless Search When viewing the Wireless Search list, the base station will scan the area for available WiFi networks. To view the Wireless Search list: 1. Select Wireless Search. 2. The Wireless Search list will consist of the available WiFi networks showing the assigned network, networks that don’t require passwords and networks that require a password.
  • Page 16 TDC-5100 Total Control Owner’s Manual Network (cont’d) Network Information This option displays important information about the current network. CAUTION, these settings should ONLY be changed by a professional. Entering values without specific instruction could easily result in the TDC-5100 failing to function correctly. Here is the information that can be displayed here: 1.
  • Page 17 TDC-5100 Total Control Owner’s Manual Power The TDC-5100 displays a Power Remaining value and Low Battery Warning to inform the end-user that it requires charging. On this menu, use the left and right arrows to set the battery charge level which triggers this warning. The image to the right is set to receive a low battery warning when the device has reached 20% battery charge.

  • Page 18: Voice Assistant

    TDC-5100 Total Control Owner’s Manual Voice Assistant The Voice Assistant menu is where Alexa integration settings are located. Select Alexa Voice Assistant to access the individual settings. Currently this menu shows the Alexa Voice Assistant and will include other Voice Assistant services when they are supported in Total Control.
  • Page 19 TDC-5100 Total Control Owner’s Manual Alexa Voice Assistant Please note that this feature may not be active if your install professional did not configure it when programming your system. This menu allows Alexa to be enabled and disabled. Audio, language, and wake options are also available to further tailor the user experience.
  • Page 20 TDC-5100 Total Control Owner’s Manual Alexa Voice Assistant (cont’d) 3. A new window appears and provides a device code. This code will need to be entered on Amazon’s website at https://amazon.com/us/code. 4. After logging into your Amazon account, enter the provided device code to register the TDC-5100 to the account.
  • Page 21 TDC-5100 Total Control Owner’s Manual Alexa Voice Assistant (cont’d) 5. A permissions page appears, providing a summary of Alexa’s services. Select Allow to complete the process. 6. The registration process is now complete. Return to the TDC-5100 to finish the process. Table of Contents...
  • Page 22 TDC-5100 Total Control Owner’s Manual Alexa Voice Assistant (cont’d) 7. Select Next to move through the tip screens. On the third screen, select Done to complete the login process. Table of Contents...
  • Page 23 TDC-5100 Total Control Owner’s Manual Logout To disable the Alexa Voice Assistant, perform the following: 1. Select Logout. 2. A confirmation window appears. Select Yes to complete the process. Table of Contents...
  • Page 24 TDC-5100 Total Control Owner’s Manual Logout (cont’d) 3. The TDC-5100 returns to the Voice Assistant menu. When enabled, a green icon appears on the right side of the button. Table of Contents...

  • Page 25: Audio Settings

    TDC-5100 Total Control Owner’s Manual Audio Settings Select Audio Settings from the menu to configure voice and audio levels for the Alexa Voice Assistant. Table of Contents...
  • Page 26 TDC-5100 Total Control Owner’s Manual Audio Settings (cont’d) Select Audio Settings from the menu to configure voice and audio levels for the Alexa Voice Assistant. A. Alexa Voice Volume: How soft or loud Alexa will speak when replying. B. Notification Volume: How soft or loud Notification audio will play. C.
  • Page 27 TDC-5100 Total Control Owner’s Manual Language Several languages, along with several variations, are available for selection. Table of Contents...
  • Page 28 TDC-5100 Total Control Owner’s Manual Removing the TDC-5100 from an Amazon Account Perform the following from the Amazon website to remove a device from an account: 1. From the Your Account page, select “Your devices and content” from the menu. 2.
  • Page 29 TDC-5100 Total Control Owner’s Manual 4. On the Device Summary page, select Deregister. Voice recording data may also be deleted at this time for privacy concerns. 5. Select Deregister again to complete the process. Table of Contents...

  • Page 30: Factory Default

    Factory Default This should only be attempted by a custom install professional that is familiar with Total Control or under instruction from URC Technical Support. Selecting this option resets the TDC-5100 to its factory state and does not function until the device is reprogrammed by a custom install professional.
  • Page 31 TDC-5100 Total Control Owner’s Manual Intercom The Audio-Video Intercom Settings menu is the location where the Intercom features must be enabled. By default this feature is disabled, it must be enabled in order for the TDC-5100 to communicate with other Intercom-Enabled devices.
  • Page 32 Owner’s Manual Intercom (cont’d) Navigating the Intercom Menu The TDC-5100 has the capability of communicating across the home network to any URC Intercom-Enabled device. Accessing the Intercom button is performed by swiping down on the Title Bar. After selecting the Intercom button from the Title Bar Menu, the Intercom Menu displays.

  • Page 33: Specifications

    TDC-5100 Total Control Owner’s Manual Specifications Limited Warranty Statement https://www.urc-automation.com/legal/warranty-statement/ These are the technical specifications for the TDC-5100: End User Agreement Microprocessor: ARM Cortex-A32 Core 1.5GHz x 4 The terms and conditions of the End User Agreement available at https://www.urc-automation.com/legal/end-user-agreement/ shall apply.
  • Page 34 Risk of explosion if the battery is replaced by incorrect type. • Dispose of used batteries according to the instructions. • Lithium Polymer batteries are recyclable. For information on local drop-off site, Declaration of Conformity please visit www.rbrc.com or call toll free 1-800-822-8837 https://www.urc-automation.com/legal/DoC/TDC-5100 Table of Contents...
