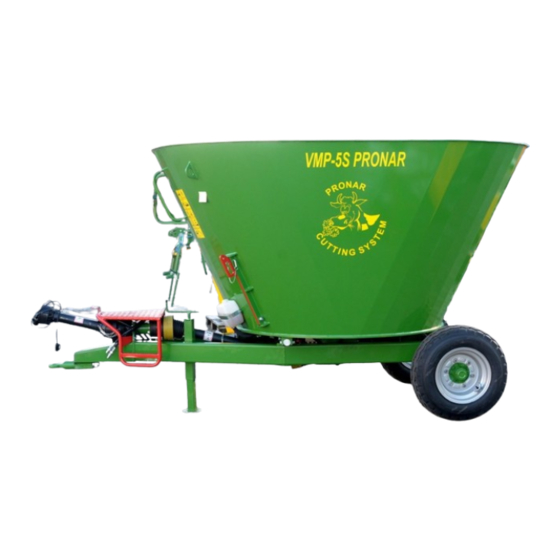

PRONAR VMP-5S Operator's Manual

Mixer-feeder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

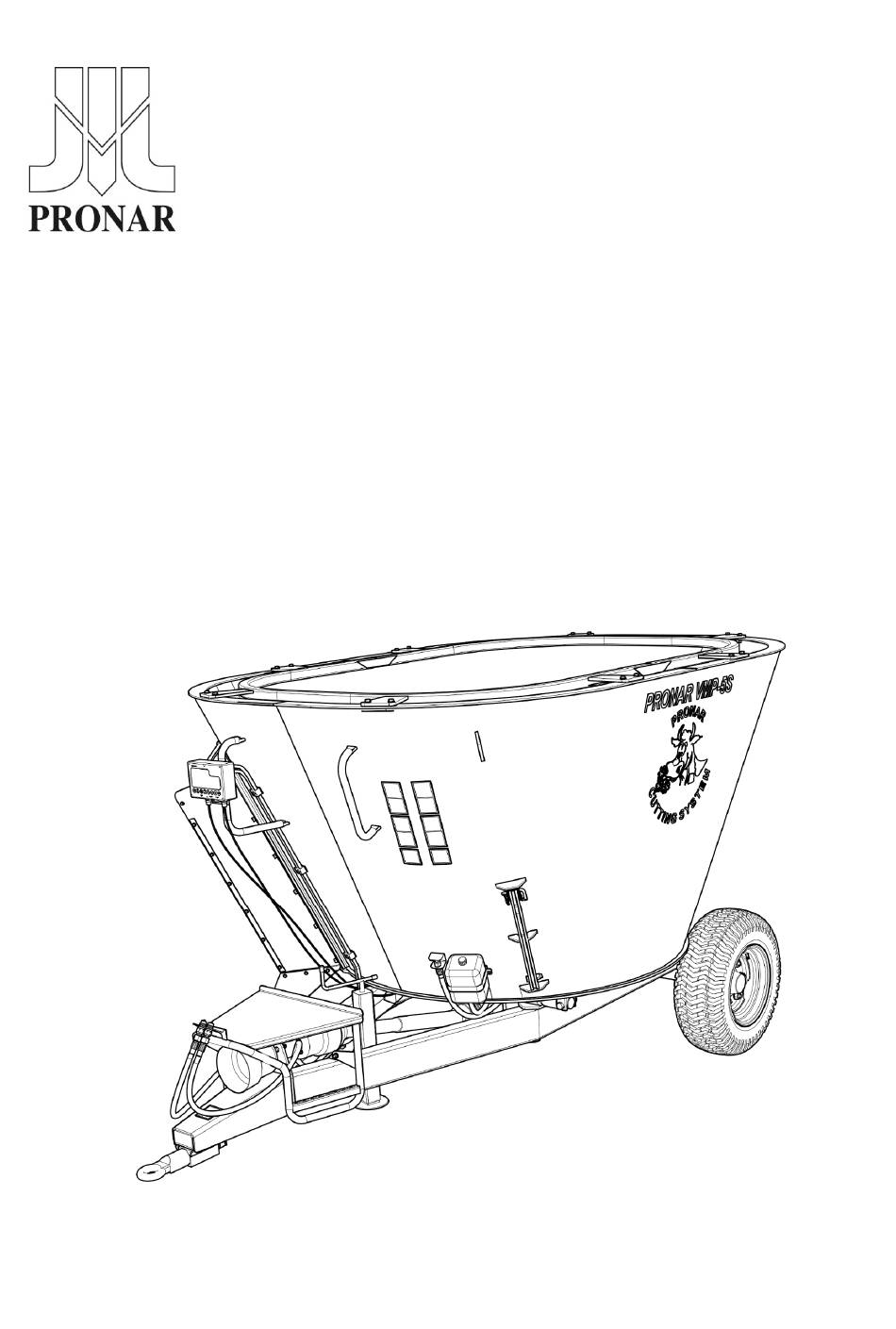

TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
DITION 2B-09-2020
PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
Tel.:
fax:
OPERATOR`S MANUAL
MIXER-FEEDER
PRONAR VMP-5S
PRONAR VMP-6S
+48 085 681 63 29
+48 085 681 63 81
+48 085 681 63 83
PUBLICATION NO. 315N-00000000-UM
+48 085 681 64 29
+48 085 681 63 82
+48 085 682 71 10
www.pronar.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMP-5S and is the answer not in the manual?

Questions and answers

Related Manuals for PRONAR VMP-5S

Summary of Contents for PRONAR VMP-5S

  • Page 1 PRONAR Sp. z o.o. 17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE Tel.: +48 085 681 63 29 +48 085 681 64 29 +48 085 681 63 81 +48 085 681 63 82 fax: +48 085 681 63 83 +48 085 682 71 10 www.pronar.pl...
  • Page 3 The machine is designed to meet obligatory standards, documents and legal regulations currently in force. The manual describes the basic safety rules and operation of Pronar VMP-5S mixer feeder. If the information contained in the Operator's Manual needs clarification then the user should refer for assistance to the sale point where the machine was purchased or to the Manufacturer.
  • Page 4 SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL Information, descriptions of danger and precautions and also recommendations and prohibitions associated with user safety instructions are marked: and also preceded by the word "DANGER”. Failure to observe the instructions may endanger the machine operator's or other person's health or life. Particularly important information and instructions, the observance of which is essential, are distinguished in the text by the sign: and also preceded by the word "ATTENTION".
  • Page 5 DIRECTIONS USED IN THIS OPERATOR'S MANUAL Left side – side to the left hand of the operator facing in the direction of machine's forward travel. Right side – side to the right hand of the operator facing in the direction of machine's forward travel.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS 1 BASIC INFORMATION IDENTIFICATION 1.1.1 IDENTIFICATION OF MIXER FEEDER 1.1.2 AXLE IDENTIFICATION 1.1.3 LIST OF SERIAL NUMBERS PROPER USE EQUIPMENT WARRANTY TERMS TRANSPORT 1.5.1 TRANSPORT ON VEHICLE 1.5.2 INDEPENDENT TRANSPORT BY THE USER 1.11 ENVIRONMENTAL HAZARDS 1.12 WITHDRAWAL FROM USE 1.13 2 SAFETY ADVICE...
  • Page 8 3 DESIGN AND OPERATION TECHNICAL SPECIFICATION DESIGN OF MIXER FEEDER 3.2.1 CHASSIS 3.2.2 TANK 3.2.3 DRIVE TRANSMISSION 3.2.4 HYDRAULIC SYSTEM OF THE SLIDE GATE 3.2.5 TRANSMISSION LUBRICATION SYSTEM 3.2.6 WEIGHING SYSTEM 3.10 4 CORRECT USE PREPARING THE MIXER FEEDER FOR NORMAL USE 4.1.1 PRELIMINARY INFORMATION 4.1.2 HAND-OVER AND INSPECTION OF THE MACHINE AFTER DELIVERY...
  • Page 9 5.2.2 CHECKING WHEEL AXLE BEARINGS FOR SLACKNESS 5.2.3 ADJUSTMENT OF AXLE BEARING SLACKNESS 5.2.4 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF WHEEL NUT TIGHTENING 5.2.5 CHECKING AIR PRESSURE IN TYRES, EVALUATING TECHNICAL CONDITION OF TYRES AND STEEL WHEELS HYDRAULIC SYSTEM MAINTENANCE 5.3.1 PRELIMINARY INFORMATION 5.3.2 CHECKING HYDRAULIC SYSTEM TIGHTNESS 5.10...

  • Page 11: Basic Information

    SECTION BASIC INFORMATION...

  • Page 12: Identification

    (1) data plate, (2) example of serial number Pronar VMP-5S mixer feeder is marked with the data plate (1) and the serial number (2) located on a gold painted rectangle. The serial number and the data plate are located on the...

  • Page 13: Axle Identification

    SECTION 1 Pronar VMP-5S VMP-6S right longitudinal member of the frame - figure (1.1). When buying the machine check that the serial numbers on the machine agree with the number written in the WARRANTY BOOKand in the sales documents. The meanings of the individual fields found on the data plate are presented in the table below: TABLE 1.1...

  • Page 14: List Of Serial Numbers

    Pronar VMP-5S VMP-6S SECTION 1 FIGURE 1.2 Location of the axle data plate (1) data plate, (2) wheel axle, 1.1.3 LIST OF SERIAL NUMBERS In the event of ordering a replacement part or in the case of the appearance of problems...

  • Page 15: Proper Use

    Pronar VMP-5S VMP-6S 1.2 PROPER USE VMP-5S mixer feeder is designed specially for modern cattle breeding farms. The machine is designed for preparing feed in the animal feeding systems of TMR type (Total Mixed Ration), PMR type (Partially Mixed Ration) or similar systems. Feed ingredients are batched to the mixer feeder tank where they are disintegrated and thoroughly mixed.
  • Page 16 Pronar VMP-5S VMP-6S SECTION 1 • adhere to the established maintenance and adjustment plans, • comply with general safety regulations while working, • prevent accidents, • comply with the road traffic regulations in force in a given country, in which the mixer feeder is used, •...

  • Page 17: Equipment

    SECTION 1 Pronar VMP-5S VMP-6S NOTE Use of other oil is permitted on condition that it may be mixed with the oil used in the mixer feeder. Detailed information can be found on the product information card. Information on gear oils is provided in section 5.

  • Page 18: Warranty Terms

    SECTION 1 1.4 WARRANTY TERMS PRONAR Sp. z o.o. Narew guarantees the reliable operation of the machine when it is used according to its intended purpose as described in the OPERATOR'S MANUAL. The repair period is specified in the WARRANTY BOOK.

  • Page 19: Transport

    SECTION 1 Pronar VMP-5S VMP-6S Demand that the seller carefully and precisely fills out the WARRANTY BOOK and warranty repair coupons. A missing date of purchase or sale point stamp may make the user ineligible for any warranty repair or refund.
  • Page 20 Pronar VMP-5S VMP-6S SECTION 1 The mixer feeder should be attached firmly to the platform of the vehicle using straps, chains, stays or other securing measures (3) – figure (1.3), fitted with a tightening mechanism. In order to attach the machine in a proper manner, fasten axles, frame longitudinal members and possibly drawbar.

  • Page 21: Independent Transport By The User

    SECTION 1 Pronar VMP-5S VMP-6S NOTE When being road transported on a motor vehicle, the mixer feeder must be secured on the vehicle's platform in accordance with the transport safety requirements and regulations. Driver of the vehicle should be particularly careful during travel. This is due to the vehicle's centre of gravity shifting upwards when loaded with the machine.

  • Page 22: Environmental Hazards

    Pronar VMP-5S VMP-6S SECTION 1 1.6 ENVIRONMENTAL HAZARDS A hydraulic or gear oil leak constitutes a direct threat to the natural environment owing to its limited biodegradability. The negligible solubility of hydraulic oil in water does not cause extreme toxicity of organisms living in the aquatic environment. The formation of a film of oil on the water may be the direct cause of physical action on organism, perhaps causing change of oxygen values in the water because of lack of direct contact of air with the water.

  • Page 23: Withdrawal From Use

    SECTION 1 Pronar VMP-5S VMP-6S hydraulic oil): 13 01 10. Detailed information concerning hydraulic oil may be found on the product's Material Safety Data Sheet. 1.7 WITHDRAWAL FROM USE In the event of decision by the user to withdraw the mixer feeder from use, comply with the regulations in force in the given country concerning withdrawal from use and recycling of machines withdrawn from use.
  • Page 24 Pronar VMP-5S VMP-6S SECTION 1 1.14...

  • Page 25: Safety Advice

    SECTION SAFETY ADVICE...

  • Page 26: Basic Safety Rules

    Pronar VMP-5S VMP-6S SECTION 2 2.1 BASIC SAFETY RULES 2.1.1 BASIC SAFETY RULES • Before using the mixer feeder, the user must carefully read this Operator's Manual and the Operator's Manual of the PTO shaft. During use all the recommendations laid down in this Operator's Manual should be observed. Do NOT start the mixer feeder without knowledge of its function.

  • Page 27: Hitching And Unhitching From Tractor

    SECTION 2 Pronar VMP-5S VMP-6S • Before using the machine always check its technical condition, and in particular: technical condition of the drawbar, hydraulic system, safety guards and air pressure in tyres. • The user is obliged to acquaint himself with the principles of safe operation, adjustment methods and inspection points of the mixer feeder and with the risks resulting from operation and maintenance of the machine.

  • Page 28: Loading The Mixer Feeder And Feed Mixing

    Pronar VMP-5S VMP-6S SECTION 2 • The machine unhitched from the tractor must be positioned on a level ground, supported by the parking stand and secured against rolling using wheel chocks. Terminals of hydraulic and electrical conduits should be protected against contamination.

  • Page 29: Operating Pto Shaft

    SECTION 2 Pronar VMP-5S VMP-6S • Before proceeding to maintenance-repair work, make certain that the hydraulic system is not under pressure. • Rubber hydraulic conduits must be replaced every 4 years regardless of their technical condition. • Use the hydraulic oil recommended by the Manufacturer.

  • Page 30: Cleaning, Maintenance And Adjustment

    Pronar VMP-5S VMP-6S SECTION 2 • During transport, the shaft must be stored in the horizontal position to avoid damage to safety guards or other protection elements. • During shaft operation, the telescopic pipes must overlap by at least one third of their length.
  • Page 31 SECTION 2 Pronar VMP-5S VMP-6S placing chocks under the wheels. Place of work should be dry, clean and well- lighted. • Regularly check the condition of the bolt and nut connections. • During the warranty period, any repairs may only be carried out by the Warranty Service authorised by the Manufacturer.
  • Page 32 Pronar VMP-5S VMP-6S SECTION 2 • In the event of work requiring the mixer feeder to be raised, use properly certified hydraulic or mechanical lift jacks for this purpose. After lifting the machine, stable and durable supports must also be used. Do NOT carry out work under a machine, which has only been raised with the lift jack.

  • Page 33: Safe Driving

    SECTION 2 Pronar VMP-5S VMP-6S • The machine may only be stood on when it is absolutely motionless and the tractor engine is switched off. During the mixer feeder operation, the operator may climb the mixer feeder's platform only in order to check the process of feed mixing and disintegrating while exercising due caution and paying proper attention.
  • Page 34 Pronar VMP-5S VMP-6S SECTION 2 • During transport adjust travel speed to the prevailing road conditions. If possible avoid travelling on uneven terrain and unexpected turning. • Do NOT exceed permissible travel speed. Excessive speed may cause loss of control over the tractor-mixer feeder combination and damage to mixer feeder and/or tractor and may limit braking efficiency of the tractor-mixer feeder combination.

  • Page 35: Tyres

    • Protect tyre valves using suitable caps to avoid soiling. 2.1.9 DESCRIPTION OF RESIDUAL RISK Pronar Sp. z o. o. in Narew has made every effort to eliminate the risk of accidents. There is, however, a certain residual risk, which could lead to an accident, and this is connected mainly with the actions described below: •...

  • Page 36: Information And Warning Decals

    In the event of their destruction, they must be replaced with new ones. Safety decals are available from your PRONAR dealer or directly from PRONAR customer service. New assemblies, changed during repair, must be labelled once again with the appropriate safety signs. While cleaning the mixer feeder, do not use solvents which may damage the coating of information labels and do not subject them to strong water jets.
  • Page 37 SECTION 2 Pronar VMP-5S VMP-6S TABLE 2.1 Information and warning decals ITEM SAFETY SYMBOL DESCRIPTION Before servicing activities or repairs, turn off engine and remove key from ignition Caution! Before starting work, carefully read the Operator's Manual Danger of crushing hands or fingers.
  • Page 38 Pronar VMP-5S VMP-6S SECTION 2 ITEM SAFETY SYMBOL DESCRIPTION Rotation direction and maximum speed of PTO shaft. Machine type Air pressure in the tyres Grease the machine according to the lubrication schedule included in the OPERATOR'S MANUAL Regularly check if the nuts and bolts fixing the wheels and other components are properly tightened.
  • Page 39 SECTION 2 Pronar VMP-5S VMP-6S FIGURE 2.2 Locations of information and warning decals 2.15...
  • Page 40 Pronar VMP-5S VMP-6S SECTION 2 FIGURE 2.3 Locations of information and warning decals 2.16...

  • Page 41: Design And Operation

    SECTION DESIGN AND OPERATION...
  • Page 42 Pronar VMP-5S VMP-6S SECTION 3 3.1 TECHNICAL SPECIFICATION TABLE 3.1 Basic technical specification CONTENTS UNIT VMP-5S VMP-6S Dimensions Total length 3 880 3 880 Total width 2 190 2 190 Total height 2 130 2 380 Tank dimensions: Length 2 990...

  • Page 43: Design Of Mixer Feeder

    SECTION 3 Pronar VMP-5S VMP-6S CONTENTS UNIT VMP-5S VMP-6S Transmission Type of connection shaft 8106056CER07001 PTO RPM Maximum torque 1 700 Auger mixer rotation speed 3.2 DESIGN OF MIXER FEEDER 3.2.1 CHASSIS FIGURE 3.1 Chassis (1) lower frame, (2) drawbar hitching eye, (3) platform, (4) scales load cell, (5) support, (6)

  • Page 44: Tank

    Pronar VMP-5S VMP-6S SECTION 3 The mixer feeder chassis consists of the subassemblies indicated in figure (3.1). Lower frame (1) is a structure welded from steel sections. The main load-bearing elements are two longitudinal members. The sockets for mounting the scales load cells (4) and the tank are welded in the central part of the frame.
  • Page 45 SECTION 3 Pronar VMP-5S VMP-6S FIGURE 3.2 Mixer feeder tank (1) tank, (2) auger mixer, (3) transmission lubrication tank, (4) wedges, (5) guard, (6) bleed conduit, (7) disintegrating blade, (8) pin...

  • Page 46: Drive Transmission

    Pronar VMP-5S VMP-6S SECTION 3 FIGURE 3.3 Dispensing window in the tank (1) chute – lower shield, (2) upper shield, (3) front shield, (4) slide gate, (5) hydraulic cylinder 3.2.3 DRIVE TRANSMISSION The standard drive system is equipped with a single planetary gear (1) – figure (3.10). The...

  • Page 47: Hydraulic System Of The Slide Gate

    SECTION 3 Pronar VMP-5S VMP-6S FIGURE 3.4 Drive transmission system – standard version (1) planetary gear, (2) intermediate drive shaft, (3) auger mixer, (4) shaft terminal cover, (5) shaft connector 3.2.4 HYDRAULIC SYSTEM OF THE SLIDE GATE The mixer feeder is equipped with one slide gate (2) – figure (3.5) for feed batching. The slide gate is located on the right side of the tank and is activated by hydraulic cylinder (1).

  • Page 48: Transmission Lubrication System

    Pronar VMP-5S VMP-6S SECTION 3 FIGURE 3.5 Diagram and design of the slide gate's hydraulic system (1) hydraulic cylinder, (2) slide gate, (3) chute, (4) rigid hydraulic conduits, (5) flexible hydraulic conduits, (6) hydraulic connections 3.2.5 TRANSMISSION LUBRICATION SYSTEM The transmission lubrication system is shown in figure (3.6). The gear oil tank (1) is installed in the front part of the mixer feeder tank, which is located above the highest point of the gear.
  • Page 49 SECTION 3 Pronar VMP-5S VMP-6S The transmission lubrication system holds 12.5 litres of oil. FIGURE 3.6 Transmission lubrication system (1) oil tank, (2) plug, (3) supply conduit, (4) bleed conduit, (5) planetary gear...

  • Page 50: Weighing System

    Pronar VMP-5S VMP-6S SECTION 3 3.2.6 WEIGHING SYSTEM The mixer feeder's weighing system is designed for 24 V DC power supply. Connection of the system with the tractor should be made using appropriate connection lead (7). The electrical system of agricultural tractor must be equipped with a proper power supply socket, which is delivered with the machine and must be installed by the user.
  • Page 51 SECTION 3 Pronar VMP-5S VMP-6S ATTENTION Electric welding of the mixer feeder components may damage the load cells. Therefore, remove these elements before commencing this type of work. 3.11...
  • Page 52 Pronar VMP-5S VMP-6S SECTION 3 3.12...

  • Page 53: Correct Use

    SECTION CORRECT USE...

  • Page 54: Preparing The Mixer Feeder For Normal Use

    Pronar VMP-5S VMP-6S SECTION 4 4.1 PREPARING THE MIXER FEEDER FOR NORMAL USE 4.1.1 PRELIMINARY INFORMATION The mixer feeder is supplied to the user completely assembled and does not require additional assembling of the machine sub-assemblies. The manufacturer guarantees that the machine is fully operational and has been checked according to quality control procedures and is ready for use.

  • Page 55: Preparing The Mixer Feeder For The First Use, Test

    SECTION 4 Pronar VMP-5S VMP-6S Ensure that the attached PTO shaft may be connected to the tractor, check rotation direction of tractor PTO. If non-conformities are found, do not attach and start the mixer feeder. Discovered defects should be notified directly to the seller in order to remove them.

  • Page 56: Preparing The Mixer Feeder For Normal Use

    Pronar VMP-5S VMP-6S SECTION 4 Test start Make sure there are no objects or living animals in the mixer feeder tank. Turn the auger clockwise to confirm that it works smoothly, without jamming and there is no doubt as to its proper operation in future.

  • Page 57: Hitching And Unhitching The Mixer Feeder

    SECTION 4 Pronar VMP-5S VMP-6S The above-mentioned activities should be performed before each start of the mixer feeder. Detailed information on other activities, inspection intervals and related procedures are included in section 5 MAINTENANCE. DANGER Careless and incorrect use and operation of the mixer feeder and non-compliance with the recommendations given in this Operator's Manual is dangerous to your health.
  • Page 58 Pronar VMP-5S VMP-6S SECTION 4 FIGURE 4.1 Support operation (1) support, (A) lowering the support foot, (B) rising the support foot Turn off tractor engine. Ensure that unauthorised persons do not have access to the tractor cab. Connect the conduits of the hydraulic control system of the slide gate to the tractor.
  • Page 59 SECTION 4 Pronar VMP-5S VMP-6S Immediately before moving, remove the chocks from under the mixer feeder's wheels and place them in the appropriate holders on the rear wall of the tank. ATTENTION Do NOT use out of order mixer feeder.

  • Page 60: Filling The Tank And Feed Preparation

    Pronar VMP-5S VMP-6S SECTION 4 Disconnect the slide gate hydraulic system conduits from tractor.  Place quick couplers in special sockets in the rear section of the platform and protect conduit ends with caps. Disconnect the scales' electric lead. Unlock tractor hitch, disconnect the mixer feeder's drawbar eye from tractor hitch.
  • Page 61 SECTION 4 Pronar VMP-5S VMP-6S turn on the power supply of the tractor's 3-pole socket and start the mixer feeder's scales. Make certain that the dispensing slide gate is closed. DANGER During loading, nobody may be on the platform or near the tank. Operator may enter the platform when the feed charge is preliminarily disintegrated and mixed.
  • Page 62 Pronar VMP-5S VMP-6S SECTION 4 the first batch is properly mixed and disintegrated. The use of disintegrating blades considerably shortens the time of preparation of dry feed charge. Next, add heavier feed ingredients such as haylage, potatoes, sugar beet pulp, fodder beet and other ingredients.

  • Page 63: Analysis Of Feed Mixture

    SECTION 4 Pronar VMP-5S VMP-6S 4.4 ANALYSIS OF FEED MIXTURE Proper degree of mixing and disintegrating should be checked each time before adding a next ingredient. The mixer feeder operator should take several feed samples and visually inspect the feed mixture consistency. If individual samples are similar, the fed ingredients are properly cut and mixed.
  • Page 64 Pronar VMP-5S VMP-6S SECTION 4 The parameters of the auger drive system are so selected that the power demand at the PTO speed of 540 rpm is the minimum to ensure proper mixing of feed ingredients. These parameters make it also possible to thoroughly empty the tank at the final stage of the feeding process.

  • Page 65: Adjustment Of Disintegrating Blades

    SECTION 4 Pronar VMP-5S VMP-6S 4.6 ADJUSTMENT OF DISINTEGRATING BLADES Disintegrating blades (1) must be slid into the tank in order to disintegrate light and dry materials - figure (4.4). Otherwise, the feed charge will rotate with the same speed as the auger.

  • Page 66: Cleaning

    Pronar VMP-5S VMP-6S SECTION 4 ATTENTION The counter blades may be adjusted only when the auger mixer is not rotating. 4.7 CLEANING Remove the remains of feed from the mixer feeder after finished feed dispensing. It is recommended to do this using a pressure washer. In order to do this: open the dispensing slide gate, turn off the tractor engine and remove key from ignition.
  • Page 67 SECTION 4 Pronar VMP-5S VMP-6S repeated individually if a mixer feeder wheel has been removed from the wheel axle. • Regularly check and maintain correct pressure in tyres. • Protect valves using suitable caps to avoid soiling. • Do not exceed the maximum design speed of the mixer feeder.
  • Page 68 Pronar VMP-5S VMP-6S SECTION 4 4.16...

  • Page 69: Maintenance

    SECTION MAINTENANCE...

  • Page 70: Preliminary Information

    Pronar VMP-5S VMP-6S SECTION 5 PRELIMINARY INFORMATION When using the mixer feeder, regular inspections of its technical condition and the performance of maintenance procedures are essential, which keep the machine in good technical condition. In connection with this the user of the mixer feeder is obliged to perform all the maintenance and adjustment procedures defined by the Manufacturer.

  • Page 71: Checking Wheel Axle Bearings For Slackness

    SECTION 5 Pronar VMP-5S VMP-6S 5.2.2 CHECKING WHEEL AXLE BEARINGS FOR SLACKNESS FIGURE 5.1 Lifting jack support point (1) wheel axle, (2) axle fastening plate Preparation procedures Hitch the mixer feeder to tractor, immobilize tractor with parking brake. Park tractor and mixer feeder on hard level ground.

  • Page 72: Adjustment Of Axle Bearing Slackness

    Pronar VMP-5S VMP-6S SECTION 5 Holding the wheel above and below, try to feel any slackness.  You may use a lever placed under the wheel supporting the other end of the lever on the floor. Lower the lifting jack, relocate the chocks to the other wheel and repeat the inspection procedure for the other wheel.
  • Page 73 SECTION 5 Pronar VMP-5S VMP-6S Preparation procedures Prepare tractor and mixer feeder for adjustment procedures according to description provided in section 5.2.2. Adjustment of slackness of wheel axle bearing FIGURE 5.2 Adjusting half axle bearings (1) hub cover, (2) castellated nut, (3) cotter pin Take off hub cover (1) –...

  • Page 74: Mounting And Dismounting Wheel, Inspection Of

    Pronar VMP-5S VMP-6S SECTION 5 Delicately tap the hub cap with rubber or wooden mallet. The wheel should turn smoothly without jamming and detectable resistance. Adjustment of bearing slackness may only be conducted when the mixer feeder is hitched to tractor and its tank is empty.
  • Page 75 SECTION 5 Pronar VMP-5S VMP-6S an ordinary spanner. The arm of the spanner (L), figure (5.3), should be selected according to the weight of the person (F) tightening the nut. Remember that this method of tightening is not as accurate as the use of a torque spanner.

  • Page 76: Checking Air Pressure In Tyres, Evaluating

    Pronar VMP-5S VMP-6S SECTION 5 TABLE 5.1 Spanner arm WHEEL TIGHTENING TORQUE BODY WEIGHT (F) ARM LENGTH (L) [Nm] [kg] 0.30 0.35 0.40 0.45 NOTE Wheel nuts must not be tightened with impact wrench because of danger of exceeding permissible tightening torque, the consequence of which may be breaking the connection thread or breaking off the hub pin.

  • Page 77: Hydraulic System Maintenance

    SECTION 5 Pronar VMP-5S VMP-6S While checking pressure pay attention to technical condition of wheels and tyres. Look carefully at tyre sides and check the condition of tread. In case of mechanical damage consult the nearest tyre service and check whether the tyre defect requires tyre replacement.

  • Page 78: Checking Hydraulic System Tightness

    Pronar VMP-5S VMP-6S SECTION 5 5.3.2 CHECKING HYDRAULIC SYSTEM TIGHTNESS Required maintenance actions Hitch the mixer feeder to tractor. Connect all hydraulic system conduits according to maintenance instructions. Clean connectors and hydraulic cylinders. Open and close the tank's slide gate several times.

  • Page 79: Replacement Of Hydraulic Conduits

    SECTION 5 Pronar VMP-5S VMP-6S 5.3.4 REPLACEMENT OF HYDRAULIC CONDUITS Rubber hydraulic conduits must be replaced every 4 years regardless of their technical condition. This should be done in specialised workshops. Replacement of hydraulic conduits: • every 4 years. 5.4 LUBRICATION OF MIXER FEEDER Lubrication of mixer feeder should be performed with the aid of a manually or foot operated grease gun, filled with recommended grease.
  • Page 80 Pronar VMP-5S VMP-6S SECTION 5 ITEM LUBRICATION POINT Hub bearing Drawbar eye Multi-splined transmission shaft Multi-splined shaft of PTO connector Chute guides Eyes of slide gate opening hydraulic cylinders Rotating drawbar eye Support screw lubrication periods – M month, D – days, H – hour...
  • Page 81 SECTION 5 Pronar VMP-5S VMP-6S FIGURE 5.4 Mixer feeder's lubrication points 5.13...

  • Page 82: Consumables

    Pronar VMP-5S VMP-6S SECTION 5 TABLE 5.3 Recommended lubricants MARKING ACCORDING DESCRIPTION TO TAB. (5.3) machine general-purpose grease (lithium, calcium grease), permanent grease for heavily loaded elements with addition of MOS graphite biodegradable oil When using the mixer feeder, lubricate also the PTO shafts according to the instructions of their manufacturers.

  • Page 83: Lubricants

    SECTION 5 Pronar VMP-5S VMP-6S different oil types may cause damage to mixer feeder or tractor. In a new machine, the hydraulic system is filled with L HL32 Lotos hydraulic oil. If it is necessary to change hydraulic oil for another oil, check the recommendations of the oil Manufacturer very carefully.

  • Page 84: Transmission Maintenance

    Pronar VMP-5S VMP-6S SECTION 5 TRANSMISSION MAINTENANCE Maintenance of the reduction gear is conducted during general inspection, change or topping up gear oil. In the event of damage to the reducer, contact authorised service point in order perform repairs. First oil change must be made after the first 100 hours worked. The next oil change should be made after 2,000 hours of the mixer feeder work or once a year.
  • Page 85 SECTION 5 Pronar VMP-5S VMP-6S FIGURE 5.5 Oil change (1) bleed plug, (2) expansion tank nut, (3) transmission drain plug, (4) bleed conduit, (5) supply conduit, (6) expansion tank, (A) oil level in expansion tank Add oil to the transmission until oil appears in the bleed conduit.

  • Page 86: Disassembly And Installation Of Cutting Blades

    Pronar VMP-5S VMP-6S SECTION 5 TABLE 5.5 Requirements for transmission lube oil VISCOSITY CLASSES ACC. TO KINEMATIC VISCOSITY VISCOSITY CLASSES AGMA AT 40 ISO 3448 R&O 5 EP 198 – 242 VG 220 Check the oil level in the system each time before starting the machine. If oil level is insufficient, add oil.
  • Page 87 SECTION 5 Pronar VMP-5S VMP-6S Disassembly of blades FIGURE 5.6 Disassembling the cutting blades (1) cutting blade I, (2) cutting blade II, (3) blade base, (4), (7), (10) cone headed screw, (5), (8), (11) self locking nut, (6), (9), (12) flat washer Prepare the mixer feeder before entering the tank.

  • Page 88: Sharpening The Cutting Blades

    Pronar VMP-5S VMP-6S SECTION 5 DANGER Since the cutting blades are very sharp, exercise due caution when mounting and dismounting them. Do NOT disassemble the blades through the open feed dispensing window – danger of crushing the whole body. The blades can be disassembled without unscrewing the blade base (3) – figure (5.13).

  • Page 89: Entering The Tank

    SECTION 5 Pronar VMP-5S VMP-6S FIGURE 5.7 Blade sharpening principle (1) cutting blade I, (2) cutting blade II, (A) upper blade surface When sharpening the blades, pay special attention to the sharp edge of the cutting element. During this activity, use sufficiently thick gloves and safety goggles.
  • Page 90 Pronar VMP-5S VMP-6S SECTION 5 immobilise tractor with parking brake, place chocks under the mixer feeder wheel, place securing chocks under the mixer feeder wheel, open the dispensing slide gate, turn off the tractor engine and remove the key from the ignition,...

  • Page 91: Cleaning The Mixer Feeder

    SECTION 5 Pronar VMP-5S VMP-6S 5.10 CLEANING THE MIXER FEEDER The mixer feeder tank together with the auger mixer and chute shields must be cleaned after each use and longer (several days) standstill of the mixer feeder. Other components should be cleaned as needed.

  • Page 92: Storage

    Pronar VMP-5S VMP-6S SECTION 5 • Detergents should be kept in original containers, optionally in replacement containers, but very clearly marked. Preparations may not be stored in food and drink containers. DANGER Carefully read the instructions for application of detergents and maintenance preparations.

  • Page 93: Tightening Torque For Nut And Bolt

    SECTION 5 Pronar VMP-5S VMP-6S • Wheel rims and tyres should be carefully washed and dried. During a longer storage of unused mixer feeder, it is recommended that every 2 to 3 weeks the machine should be moved a bit so that the place of contact of tyres with ground is changed.

  • Page 94: Troubleshooting

    Pronar VMP-5S VMP-6S SECTION 5 FIGURE 5.8 Bolt with metric thread (1) resistance class, (d) thread diameter Hydraulic conduits should be tightened using torque of 50 – 70 Nm. 5.13 TROUBLESHOOTING TABLE 5.7 Troubleshooting FAULT CAUSE REMEDY Excessive bearing Check slackness and adjust if...
  • Page 95 SECTION 5 Pronar VMP-5S VMP-6S FAULT CAUSE REMEDY Insufficient tractor hydraulic pump output, damaged Check tractor hydraulic pump. tractor hydraulic pump. Check cylinder piston rod (bending, corrosion), check Damaged or contaminated cylinder for tightness (cylinder cylinder piston rod seal), if necessary, repair or replace the cylinder.
  • Page 96 Pronar VMP-5S VMP-6S SECTION 5 FAULT CAUSE REMEDY Damaged planetary gear or Repair the gear. two-speed reduction gear Wrong setting of the two- Check the position of the speed reduction gear speed transmission speed change lever 5.28...
  • Page 97 NOTES …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 98 …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 99 ANNEX A Wheels of wheel axles TYRES WHEEL DISC 10.0/75-15.3 10PR 9.00x15.3’’...
