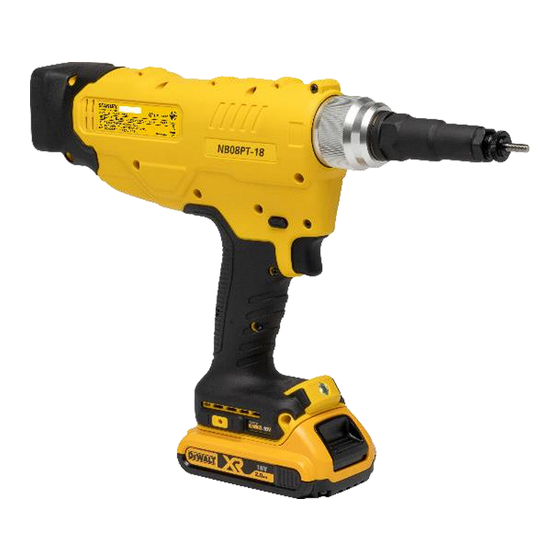

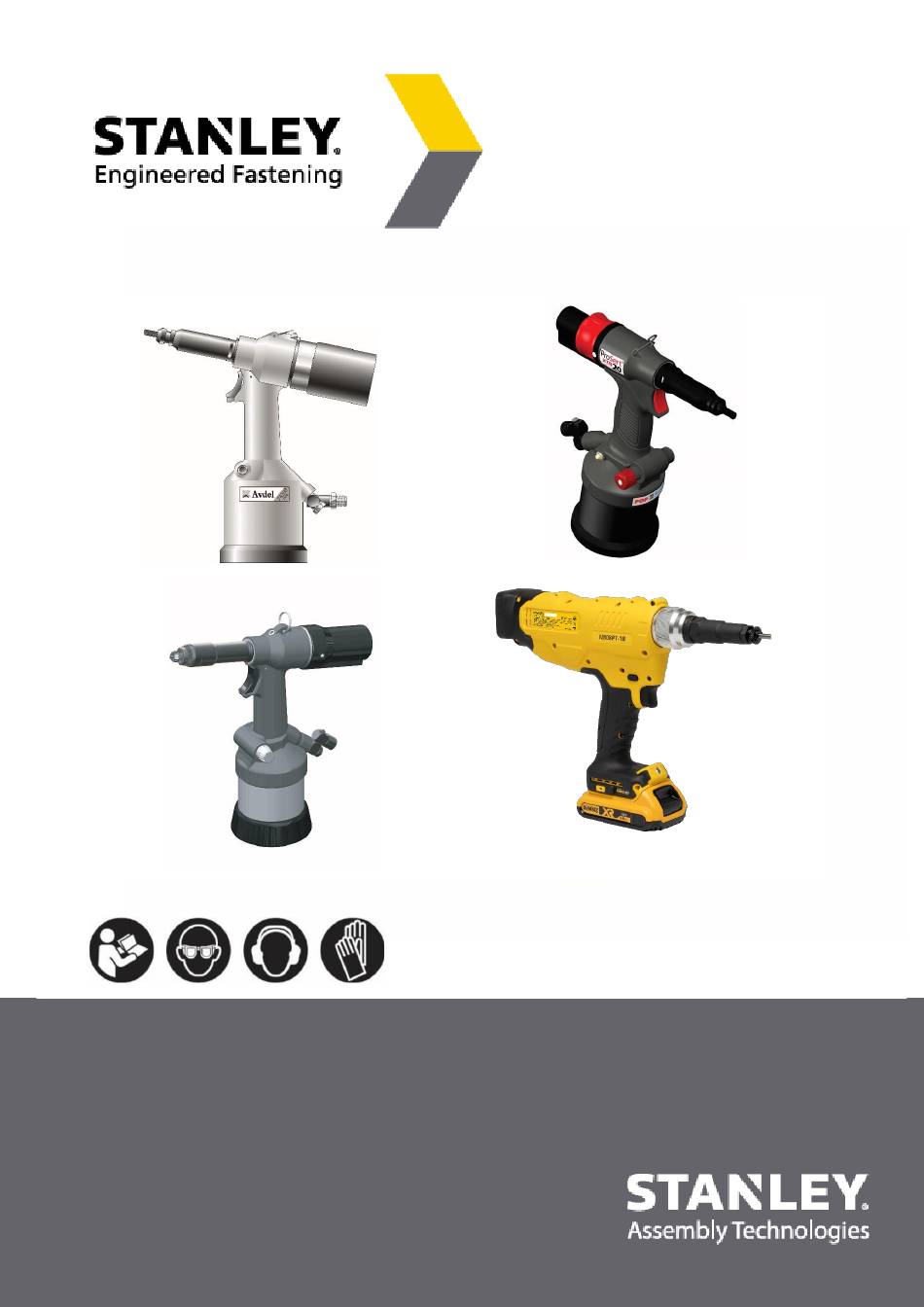

- Page 1 Accessories Manual ORIGINAL INSTRUCTION Speed Battery Tool Instruction Manual Original Instruction 74200, 74202, 74290, NB08PT-18 Insert Tools Accessories...
- Page 2 (electronically or mechanically) without prior explicit and written permission from STANLEY Engineered Fastening. The information provided is based on the data known at the moment of the introduction of this product. STANLEY Engineered Fastening pursues a policy of continuous product improvement and therefore the products may be subject to change.
-
Page 3: Table Of Contents
SAFETY DEFINITIONS ............................3 INTRODUCTION ..............................4 ..................................4 OOLS 74200 NOSE ASSEMBLIES ............................. 5 FITTING INSTRUCTIONS ............................5 SERVICE INSTRUCTIONS ............................5 74200 NOSE ASSEMBLY COMPONENTS ....................... 6 ............................. 7 ELECTING A SSEMBLY 74202 NOSE ASSEMBLIES ............................. 7 ............................ 8 SSEMBLY REAKDOWN .............................. -
Page 4: Safety
ORIGINAL INSTRUCTION SAFETY This instruction manual must be read by any person installing or operating this tool with particular attention to the following safety warnings and instructions. SAFETY DEFINITIONS The definitions below describe the severity for each signal word. Please read the manual and pay attention to these symbols. -
Page 5: Introduction
This manual shows the available accessories, and equipment required to place speed rivets. Before choosing equipment, ensure the accessory is compatible with your speed tool. This is shown under the title of each section. For example: Applicable tools 74200 74202 74290 NB08PT-18 The above example shows the related section information in the section is available only with these tools. -
Page 6: 74200 Nose Assemblies
ORIGINAL INSTRUCTION 74200 NOSE ASSEMBLIES Applicable tool 74200 It is essential that the correct nose assembly is fitted prior to operating the tool. By knowing the details of the fastener to be placed, you will be able to order a new complete nose assembly using the selection tables see “Instruction Manual”... -
Page 7: 74200 Nose Assembly Components
• Assemble according to fitting instructions. Refers to items included in the 74200 service kit. For complete list see “Instruction Manual” on page 13: 74200 NOSE ASSEMBLY COMPONENTS Nose tips vary in shape according to the insert type. Each nose assembly represents a unique assembly of components which can be ordered individually. -
Page 8: Selecting Aose Nose Aosessembly
Places all inserts listed in this section except M5 large flange Thin Sheet Nutsert®. Places M5 large flange Thin Sheet Nutsert® 09698-00516 ONLY. These nose assemblies include an adaptor nut part number 74200-12119 to replace the one on the tool. SELECTING A NOSE ASSEMBLY... -
Page 9: Nose Assembly Breakdown
ORIGINAL INSTRUCTION NOSE ASSEMBLY BREAKDOWN Fig. 2 Main Components List Re-order Re-order Nr. in Instruction Thread Thread Spare part Description Spare part Manual metric Imperial numbers. number Metric Imperial 07555-09004 8 UNC 07555-09058 07555-09005 10 UNF 07555-09070 Mandrel 07555-09006 1/4“ UNC 07555-09048 07555-09008 5/16“... - Page 10 ORIGINAL INSTRUCTION • Screw the Chuck Nut 5 onto the Mandrel Adaptor 8 whilst pulling back the spring loaded Nose Rod 9. Tighten the Chuck Nut 5 clockwise. • Screw on the Nose Casing 4 and Nose Tip 2 with the nose tip Lock Nut 3. •...
-
Page 11: Blind Stud Nose Equipment
(7900-09300) for full details of the tool placing capability for the different Blind Rivet Nut types and sizes. ***For DK/DL series M8 large flange nose tip (2) is required 74209-12631. BLIND STUD NOSE EQUIPMENT Fig. 3 ASSEMBLY 07559-03044 07559-03047 07559-03050 07555-01012 74200-12119* 07559-03045 07559-03048 07559-03051 07555-01012 74200-12119* 07559-03046 07559-03049 07559-03052... -
Page 12: Adaptor Kits For Japanese Market
ORIGINAL INSTRUCTION • Fit Drive Nut 3 onto Drive Shaft 6 and insert into Reducing Sleeve 7. • Screw Reducing Sleeve 7 onto Mandrel Adaptor 8. • Screw on the Nose Casing 4 and Nose Tip 1 with the Nose Tip Lock Nut 2. •... -
Page 13: Mm Nose Extension Kit
ORIGINAL INSTRUCTION Now for assembly please see Fig. 4 Page 11. Item numbers in bold refer to components in this drawing. • Retain items nr. 17, 18 and 19 from the base tool. • Using a 2mm Hexagonal Wrench undo the grub screw in the T Joint 17, remove the Nose Rod and insert into the locking ring 15. -
Page 14: 74290 Nose Assemblies
ORIGINAL INSTRUCTION • Slide the Outer Extension 21 over and screw this on to the tool. • Attach desired size of Nose Equipment before screwing on the Nose Casing 4 and tighten. • The reverse operation is carried out for equipment removal. 74290 NOSE ASSEMBLIES Applicable tool 74290... -
Page 15: Service Instructions
ORIGINAL INSTRUCTION SERVICE INSTRUCTIONS Nose assemblies should be serviced at weekly intervals. • Remove the complete nose assembly using the reverse procedure to the ‘Fitting Instructions’. • Any worn or damaged part should be replaced by a new part. • Particularly check wear on Punch. - Page 16 ORIGINAL INSTRUCTION...
-
Page 17: Balancing
ORIGINAL INSTRUCTION BALANCING 78301-03-0041 XTN20 POP AVDEL RivetNut Vertical suspension kit for XTN20 Setting Tool RivetNut setting tool 78330-02-0090 XTN20 POP AVDEL RivetNut 78330-02-0176 Setting Tool Balancer VERTICAL SUSPENSION KIT FOR XTN20 RIVETNUT SETTING TOOL BALANCER MOUNTED Dimensions Item Part Number 78301-03-0041... -
Page 18: Balancer
ORIGINAL INSTRUCTION BALANCER FEATURES & BENEFITS • Ergonomics adapted for Workplaces • Avoid Musculoskeletal Disorders • Setting tool suspension through original suspension hook • Vertical orientated riveting axis • Cost Efficient • No heavy modifications for integration on existing workbench Associated Accessories •... -
Page 19: Protections
ORIGINAL INSTRUCTION PROTECTIONS Applicable tools XTN20 78330-03-0135 POP AVDEL XTN20 InsertNut Pressure Setting Locking Cap Setting Tool 78330-03-0134 Stroke Setting Sliding Cover POP AVDEL XTN20 InsertNut Locking Clip Setting Tool (Fuse) 10.1 PRESSURE SETTING LOCKING CAP Applicable tool XTN20 Dimensions Item Part Number 78330-03-0135 10.2 STROKE SETTING SLIDING COVER LOCKING CLIP (FUSE) -
Page 20: Tool Holster
ORIGINAL INSTRUCTION TOOL HOLSTER Dimensions Item Part Number 78301-02-0214 REMOTE TRIGGER Applicable tools XTN20, 74200... - Page 21 ORIGINAL INSTRUCTION...
- Page 22 Stanley Black & Decker, Inc. and its affiliates. The names and logos of other companies mentioned herein may be trademarks of their respective owners. Data shown is subject to change without prior notice as a result of continuous product development and improvement policy.
