ISA2-TFI56GB-C
9 Method of Additiona Manifold Stations (continued)

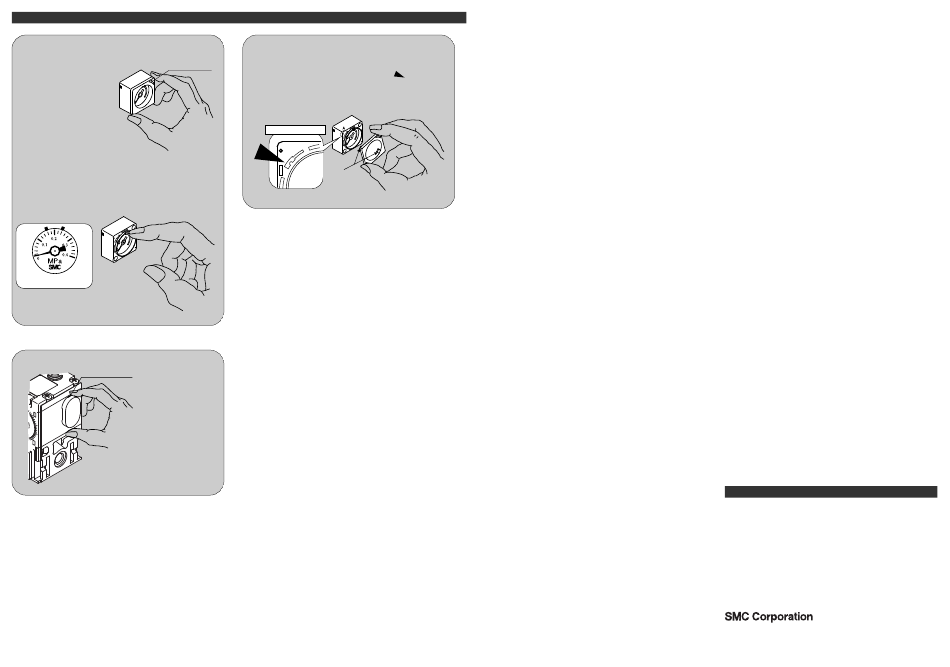

Handling and setting of limit gauge indicator
OPEN Arrow
1. Cover removal
Hold the edge of the front
cover and turn the cover in
the OPEN arrow direction till
it stops (15°).
Pull the cover in front
direction to remove it.
2. Setting reference needles
Move the reference needles by the fingertip.
Adjust high and low limits of pressure by two green reference
needles.
Example
High Limit : 0.24MPa
Low Limit : 0.16MPa
How to remove the end plate
Slot for removal
The end plate can be removed
by hooking fingers in the top
and bottom slot, and pulling
horizontally.
3. Cover mounting
After setting the reference needles, mount the cover back to
its original position with the OPEN arrow upper right. Insert
the cover pin into the hole in the case (mark in enlarged
view of Part A) and turn it clockwise till it stops. (Direction
opposite the OPEN arrow direction)
Confirm that the cover is held securely.
Enlarged view of Part A
Pin
10 Contacts
AUSTRIA
(43) 2262 62280-0
LATVIA
(371) 781 77 00
BELGIUM
(32) 3 355 1464
LITHUANIA
(370) 5 264 8126
BULGARIA
(359) 2 974 4492
NETHERLANDS
(31) 20 531 8888
CZECH REP.
(420) 541 424 611
NORWAY
(47) 67 12 90 20
DENMARK
(45) 7025 2900
POLAND
(48) 22 211 9600
ESTONIA
(372) 651 0370
PORTUGAL
(351) 21 471 1880
FINLAND
(358) 207 513513
ROMANIA
(40) 21 320 5111
FRANCE
(33) 1 6476 1000
SLOVAKIA
(421) 2 444 56725
GERMANY
(49) 6103 4020
SLOVENIA
(386) 73 885 412
GREECE
(30) 210 271 7265
SPAIN
(34) 945 184 100
HUNGARY
(36) 23 511 390
SWEDEN
(46) 8 603 1200
IRELAND
(353) 1 403 9000
SWITZERLAND
(41) 52 396 3131
ITALY
(39) 02 92711
UNITED KINGDOM
(44) 1908 563888
URL http://www.smcworld.com (Global) http://www.smceu.com (Europe)
Specifications are subject to change without prior notice from the manufacturer.
© 2008-2015 SMC Corporation All Rights Reserved
