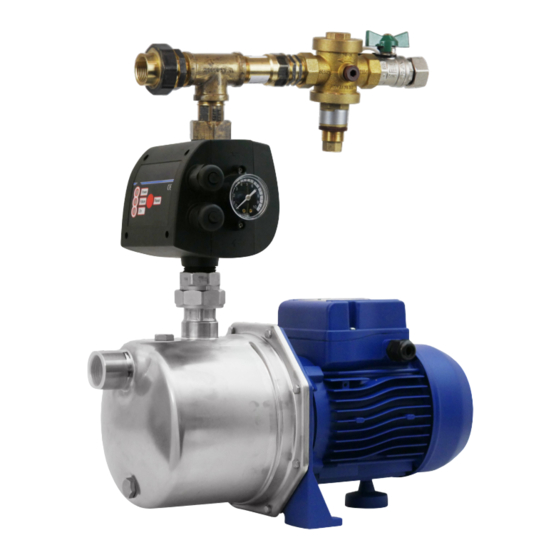

- Page 1 B E T T E R • F A S T E R • E A S I E R B E T T E R • F A S T E R • E A S I E R EXTERNAL RAIN MAINS SYSTEM EXPLODED VIEW & INSTRUCTION MANUAL MODEL: RM4000-3 PUMP: PRJE SERIES www.reefe.com.au...
- Page 2 Impeller Techno Polymer Mechanical Seal Carbon - Ceramics Pump Body Stainless Steel AISI 304 Diffuser, Nozzle & Venturi Techno Polymer Mains Isolation Valve Brass Pressure Reduction Valve Brass Pump Connector (Union) with CV Brass Dual check valve (DCV) Brass www.reefe.com.au...
- Page 3 A Y-strainer or Pre-filter must be installed in the suction pipe between the rainwater tank and the pump - warranty is void if this is not fitted. IMPORTANT: IF INSTALLING CLOSE TO A WALL OR OTHER FIXTURE, USE BARREL UNION CONNECTIONS TO ALLOW REMOVAL IF EVER REQUIRED Read and follow the instructions in the pages following www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
-
Page 4: Correct Installation
(3) BALL VALVE OR GATE VALVE RAIN MAX MAINS PRESSURE 500KPA IMPORTANT! GRAVITY FED WATER SUPPLY ONLY INCORRECT INSTALLATIONS RAIN RAIN RAIN OVER 500KPA MAINS WATER AS PER AS3500.1 MAINS MUST NOT BE OVER 500KPA www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©... - Page 5 WITH A QUALIFIED PUMP TECHNICIAN FOR THIS TYPE OF INSTALLATION. INCORRECT THE PUMP WILL NOT HOUSE MAINS AUTOMATICALLY RE-START. IT www.reefe.com.au CANNOT SUCK THE AIR OUT P: 1800 807 604 Ascento Group Australia AI.062020 © OF THE PIPE WORK. IT WILL...
- Page 6 EMPTY OF LOW IN WATER EMPTY OF LOW IN WATER IF YOUR PUMP STOPS, CHECK YOUR IF YOUR PUMP STOPS, CHECK YOUR TANK, IT MAY BE EMPTY TANK, IT MAY BE EMPTY www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©...
-
Page 7: Incorrect Installation
OUTLET OF THE TANK, ALWAYS SUCTION LIFT, UNLESS A PUMP USE A FOOT VALVE IN THE SHUT-OFF CONTROLLER IS TANK, OR A SWING-CEHCK ADDED VALVE IF VIABLE INCORRECT NO FOOT VALVE www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©... - Page 8 SERVICING OR REPAIRING. DANGER ENSURE THE PUMP IS CONNECTED TO A POWER OUTLET THAT IS PROTECTED BY A SAFETY SWITCH (RCD.) IT IS THE BST PRACTICE TO HAVE A DEDICATED CIRCUIT www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©...
- Page 9 CROOKED WILL LEAD OVER HEAT MOTOR AND/OR TO FAILURE OF THE CAUSE PREMATURE FAILURE. PUMP THAT IS NOT THIS IS NOT A WARRANTY COVERED BY FAULT IF THIS OCCURS. WARRANTY. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020 ©...
-
Page 10: Installation Instructions And Checklist
The Owner has been shown how to re-prime and re-set the pump (re-fill the pump with water if it runs dry) (if owner/resident not in attendance this is not … applicable, ensure this instruction manual is left for the owner.) www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 11: Troubleshooting Guide
Has the Circuit-breaker or Safety Switch tripped off? If so, in a safe manner (SAFETY FIRST: do not touch the pump or water) check that it is the pump (not something else) and if you are certain it is the pump that is causing the problem, log a ticket if it is in warranty period, at www.reefe.com.au/ warranty/If out of warranty search the internet for “pump repairs in my area”... -
Page 12: Operating & Maintenance
If you prove that it is the pump, do not plug it back in, have it replaced immediately. If it is in warranty log a warranty claim here: www.reefe.com.au/warranty/ or mail us at PO BOX 650 MORNINGSIDE QLD 4170 or send an email to csv@ascento.com.au with copy of your purchase receipt, description of the problem, and your name and address and phone number... - Page 13 If you prove that it is the pump, do not breaker trips when plug it back in, have it replaced immediately. If it is in warranty log a warranty claim here: www.reefe.com.au/war- pump starts.
- Page 14 In the case of a fault, refer to the Trouble Shooting Guide first. If these steps do not rectify the problem, then return the faulty appliance to the original place of purchase with proof of purchase for replacement or refund. Alternatively you can log a warranty claim here: www.reefe.com.au/warranty/ or mail us at PO BOX 650 MORNINGSIDE QLD 4170 or send an email to customerservice@ascento.com.au with a copy of your purchase receipt, a...
