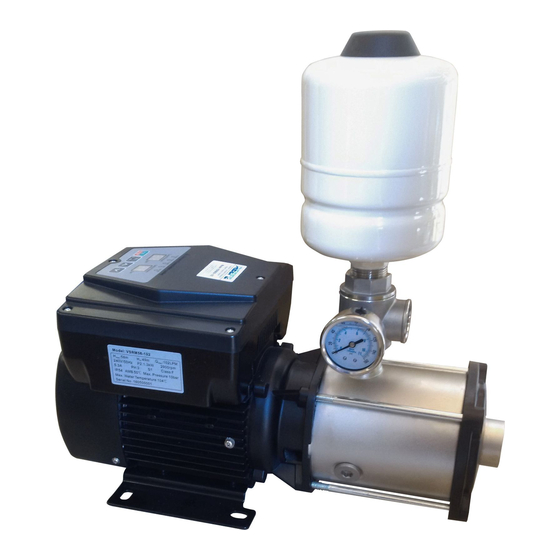

REEFE VSRM Inverter Constant Pressure System
Variable Speed REEFE Multi-Stage Pump
USER MANUAL
Read this manual carefully before installation, and also refer to
the diagrammatic installation guide provided separately. If you
don't have this guide, please email sales@ascento.com.au and
request a copy.
REEFE® VSRM Series Pumps use the latest VVVF (Variable Voltage
and Variable Frequency) AC frequency speed regulation
technology. Combined with pressure sensing technology through
measuring of real-time system pressure, this allows the controller
to automatically adjust the motor speed and maintain a constant outlet pressure. They are very efficient, easy to
install and have user friendly interface controls for quick setup. No programming is required, simply set your desired
operating pressure and press RUN...let the controller save you money on your operating costs.
CONTENTS
1. Features & Application
2. Safety Notice
3. Installation and Operating Instructions
4. Maintenance
5. Trouble Shooting
6. Dimensions and Technical Data
7. Warranty
1. Features & Application
1.1 Product Features
VSRM series inverter constant pressure water supply system uses the latest VVVF (Variable Voltage and Variable
Frequency) AC Frequency speed regulation technology, combined with pressure sensing technology, through
measuring of real-time system pressure, to automatically adjust the motor speed, to keep the outlet pressure
constant.
1.2 Applications
1.2.1 Clean water supply for commercial and domestic use, with flooded suction. Not to be used for liquids other
than clean fresh water. Not suitable for saltwater. Not suitable for suction lift (drawing up from an underground
Page | 1
Ascento 37 Export St Lytton QLD PH: 1800 807 604 | VSRM Inverter Contant Pressure Pumps | V2016.12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Reefe VSRM Series
Summary of Contents for Reefe VSRM Series
- Page 1 1. Features & Application 1.1 Product Features VSRM series inverter constant pressure water supply system uses the latest VVVF (Variable Voltage and Variable Frequency) AC Frequency speed regulation technology, combined with pressure sensing technology, through measuring of real-time system pressure, to automatically adjust the motor speed, to keep the outlet pressure constant.
-
Page 2: Safety Notices
tank or a tank that is below the level of the pump) the VSRM pump must have “gravity fed water supply” – otherwise known as flooded suction. 1.2.2. MAINS PRESSURE BOOSTING: This is a specialized type of application, and must be completed by a Qualified Plumber or Pump Technician who is competent to perform this type of installation. - Page 3 WARNING: If the VSD is damaged do not attempt to use the device, it may damage the pump and you may be at risk of harm. 2.4 Additional safety warnings; 1. Please be sure to use the correct power supply - refer to the nameplate. 2.
-
Page 4: Before Installation
3. Installation and Operation instruction BEFORE IMPORTANT NOTICES: READ INSTALLATION 3.1 IMPORTANT MANDATORY INSTALLATION REQUIREMENTS: 1. IMPORTANT: a Check-Valve must be installed in the inlet pipe 2. IMPORTANT: Install using Barrel-Union connections for easy removal for repair or servicing. Install a Y-Strainer or Pre-Filter and also a Ball-Valve on the inlet piping. - Page 5 OFF, BEFORE the tank and pipes are dry. We recommend the RainPro Rain-Mains Valveset with a REEFE Pump Shut-Off Controller with Float Switch. Or use a “Piggy-Back” Float Switch, but ensure the installation is checked and approved by a licenced electrician.
- Page 6 6. IMPORTANT: Install using Barrel-Union connections for easy removal for repair or servicing. Install a Y-Strainer or Pre-Filter and also a Check Valve and Ball-Valve on the inlet piping. REFER to the Diagrammatic Instructions for more information. No warranty applies if these are not fitted according to the instructions. 7.
- Page 7 3.9 Operating Instructions 3.9.1 Check before Operation 1. Check the electrical and plumbing installation comply with these instructions, and also complies with applicable electrical and plumbing regulations; it is the installer’s responsibility to check compliance as we have no control over the installation. 2.
-
Page 8: Maintenance
MUST install an additional larger PRESSURE TANK between the pump and the first point of discharge, to avoid the continuous running. We suggest a REEFE Pressure Tank PT35H or larger. Warranty is voided by continuous running of the pump. - Page 9 This code displays if the pipe pressure reaches 99% of the maximum allowable pressure for the Transducer. Once the Over pressure pressure reduces to less than 96% of the max pressure, the VSD will revert to normal operation. When the input is three phase power, this code indicates that the Dropped Phase power supply has dropped from 3 Phase to 2 or 1 phase.
- Page 10 * Leakage of inlet (suction) pipe - Check the inlet pipe is not taking in air, check all joints. * Inlet Pipe has rise and fall (Dips). Fix suction pipe so it is both perfectly straight and level, OR slightly falls all the way to the pump.
-
Page 11: Dimensions And Technical Data
6. Dimensions and Technical Data 6.1 Product Specifications 6.1.1 Pump Dimensions Dimensions(mm) Model VSRM38-72 G3/8 VSRM48-72 G3/8 VSRM39-102 G1¼ G3/8 VSRM58-102 G1¼ G3/8 VSRM50-270 G1½ G1½ G3/8 6.1.2 Technical Data - AC 240V/50Hz Input Factory Operating Rated Rated Rated Pressure filled pressure pressure Pressure... -
Page 12: Exploded View
6.2 Exploded View Name Quantity of Impellers; Dust cap Priming/Bleed Plug VSRM38-72: O-ring - Priming/Bleed Plug Casing bolts VSRM48-72: Front Wet-End Clamp Plate VSRM39-102: 4 Pump Wet-End Casing O-ring – Wet-End Casing VSRM58-102: 6 Hex Nut – Impeller Shaft Spring washer – Impeller Shaft VSRM50-270: 4 Impeller Shaft Bush - Front Volute - Front... - Page 13 INSTALLATION CHECKLIST: MUST BE FILLED IN FOR WARRANTY TO APPLY Installer Name ____________________________ Qualification:________________Phone Number:_________________ Wiring of Power Outlet if applicable completed by Electrician _________________________Licence No: _________________ Installation Address: ________________________________________________________________________________ Tick the boxes as the item is completed/correct, put n/a if not applicable; ] I have checked that the VSRM is the correct size/power for its intended use, and is being used for appropriate purpose for which it is intended, according to these instructions.
- Page 14 Thank you for purchasing our product. We trust it gives you years of trouble-free pumping! ASCENTO GROUP AUSTRALIA | REEFE PUMPS | 37 Export St Lytton Brisbane QLD 4178 P: 1800 807 604 • F: 1800 807 609 • E: sales@ascento.com.au • W: www.ascento.com.au Page | 14 Ascento 37 Export St Lytton QLD PH: 1800 807 604 | VSRM Inverter Contant Pressure Pumps | V2016.12...
