Summary of Contents for Reefe RPS036

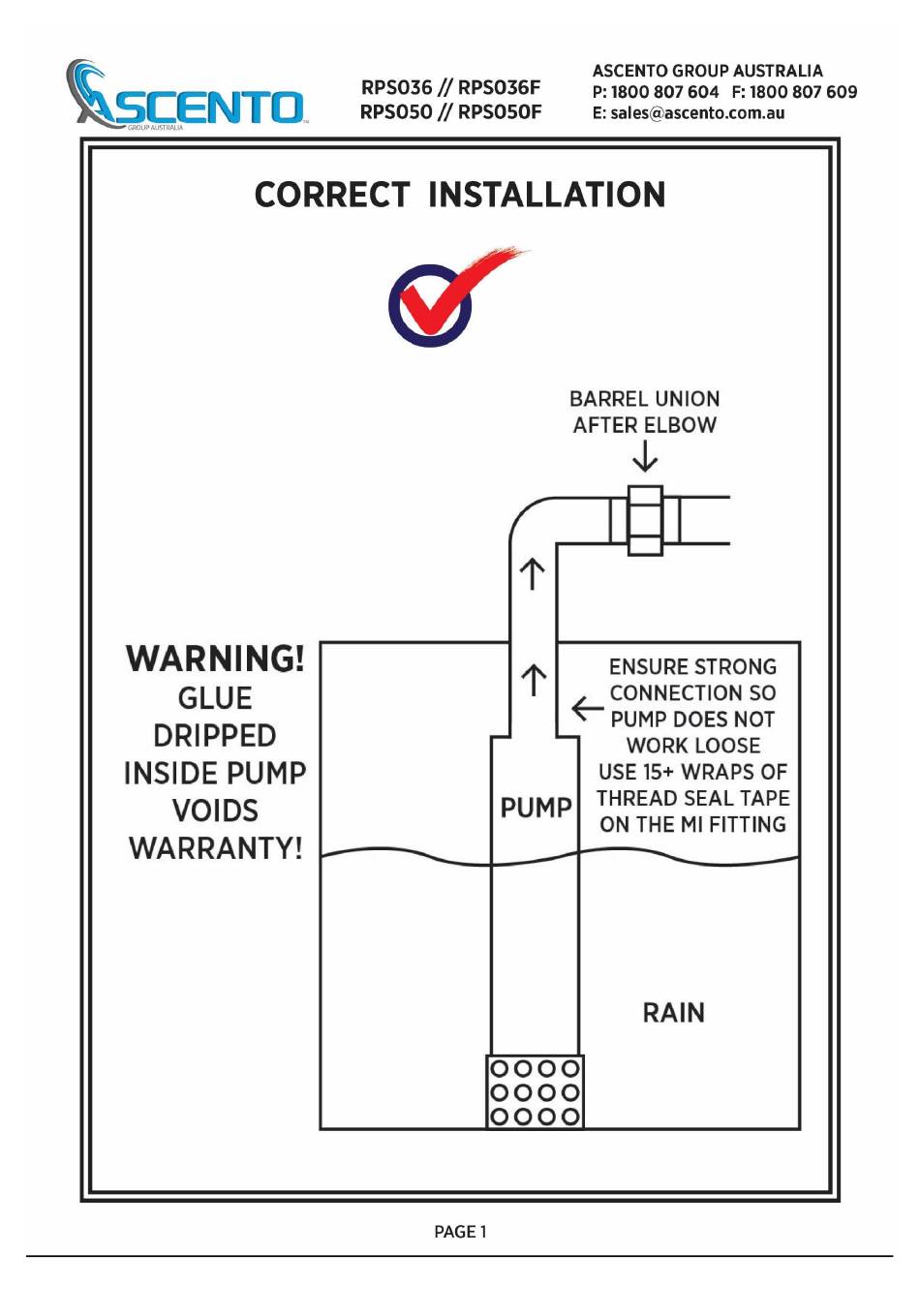

- Page 1 Page Ascento Group Australia P: 1800 807 604 E: csv@ascento.com.au...
- Page 2 Page Ascento Group Australia P: 1800 807 604 E: csv@ascento.com.au...
- Page 3 Page Ascento Group Australia P: 1800 807 604 E: csv@ascento.com.au...
- Page 4 Page Ascento Group Australia P: 1800 807 604 E: csv@ascento.com.au...
-
Page 5: Performance Data

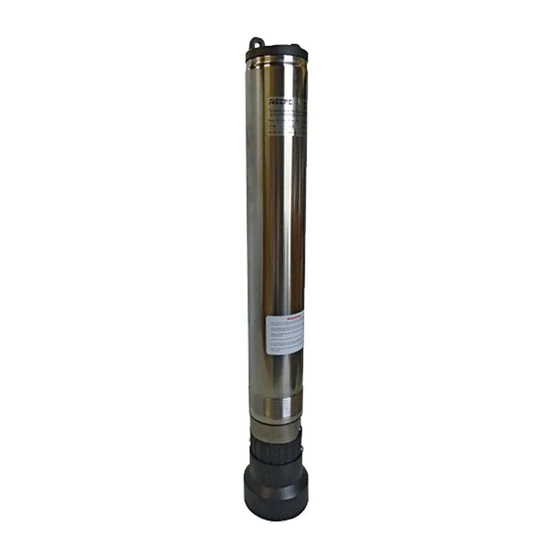

INSTRUCTION MANUAL & WARRANTY – REEFE RPS036 & RPS050 Multistage Submersible Pump ** Please leave this guide in a safe place for the owner ** PERFORMANCE DATA POWER RATED MAXIMUM FLOAT CABLE OUTLET SIZE L x W x H CODE MODEL... - Page 6 4) DO NOT install it in such a manner that it would require a person to get inside the tank to remove/repair it. 5) You MUST use 25mm or larger POLY or PVC pipe connected to the discharge of the pump. DO NOT CONNECT COPPER or GALV PIPE or less than 25mm ID POLY/PVC PIPE to this pump.
- Page 7 22) IRRIGATION USE TANK PRESSURE SETTING: Air pressure must be set at 70% of maximum pump pressure – set the tank air pressure: RPS036 set air pressure to 250kPa, RPS050 set air pressure to 350kPa. The Pressure Tank is simply fitted to the discharge pipework with a “tee”, anywhere between the pump and the first point of discharge.
- Page 8 28) The pump will operate fully automatically, it will start on demand when pressure drops below approx 200kPa, and will stop when demand ceases, after pumping for some minutes to regain full pressure. It may turn on & off a few times, refer point 16 29) ELECTRICAL SUPPLY: (a) Plugging into existing outlets that have other appliances connected may cause low voltage supply to the motor, causing the circuit-breaker to trip, tripping of motor overload, or burnt out motor, which will not be covered by the Warranty.
- Page 9 DANGER!!! Keep the pump equipment protected from interference by children, infirm persons, incompetent persons, pets and wildlife. WARNING!!! This pump is designed for clean fresh water only, in non-hazardous locations. It must NOT be used as a continuous duty fountain pump, or to pump dirty water, or to pump liquids other than clean water.
- Page 10 5. Pump has an air-lock >Start and stop several times by turning the power off, wait 30 seconds, and turn on again, repeat if necessary. 6. If all of the above are OK, the pump might have overheated and triggered the thermal overload switch > Turn it off and wait 30 minutes for it to cool down and turn it on again >...
- Page 11 WARNING!! ELECTRICAL PRECAUTIONS Before servicing a pump, always shut off the power supply and then make sure you are not standing in water and that there is no risk of electrical shock. If the pump is direct-wired to the electrical circuit, contact a qualified licensed electrician to disconnect it before attempting any repairs or servicing.
-
Page 12: Warranty Conditions
Do not send the product to us unless we ask you to do so WARRANTY PERIODS DOMESTIC USE; REEFE EXTERNAL CONSTANT PRESSURE PUMPS: 3 Years Rain&Town EXTERNAL CONSTANT PRESSURE PUMPS:...
