Summary of Contents for Reefe RVE160

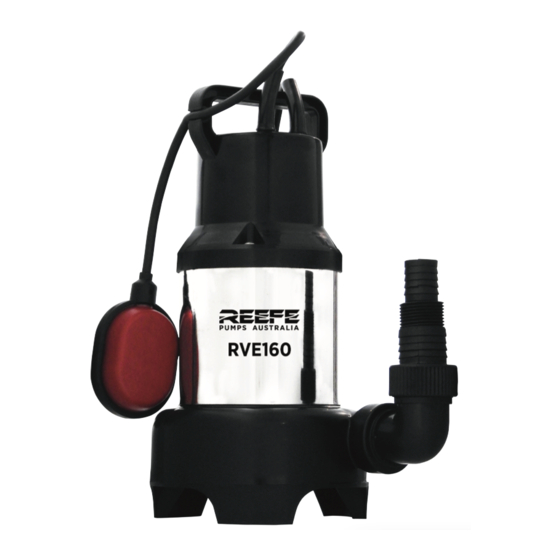

- Page 1 T E R • • E A E A S I S I E E R R P U M P S A U S T R A L I A VORTEX SUBMERSIBLE PUMP EXPLODED VIEW & INSTRUCTION MANUAL MODEL: RVE160 CODE: 20685 www.reefe.com.au...
- Page 2 A U S T R A L I A COMPONENTS & MATERIALS POSITION COMPONENT MATERIAL Pump Shaft Stainless Steel Pump Motor Casing Stainless Steel Pump Base NORYL PPO Polymer (Corrosion-proof) Pump Head NORYL PPO Polymer (Corrosion-proof) Impeller NORYL PPO Polymer (Corrosion-proof) www.reefe.com.au...
-
Page 3: Parts List
8 Pump Head 21 Impeller 9 Cable Gland 22 Shaft Nut 10 Power Cable 23 Sealing O-Ring 11 Float Switch 24 Pump Base 12 Cable Gland Screw (1) 25 Base Screw 13 Cable Gland Bracket 26 Discharge Connection Elbow www.reefe.com.au... - Page 4 This pump is suitable to pump fresh water, stormwater and greywater, with soft particles of a size as designated on the data sheet for that model. Refer to the nameplate of the pump then search our website www.reefe.com.au for the current tech data sheet. These pumps are not intended for pumping potable water, and have not been tested for pumping potable water.
-
Page 5: Troubleshooting Checklist
– the pump must have a defective float switch > Call our warranty dept on 1800 807 604 for a replacement, if it is within the warranty period. (Note, the float on the VF (Vertical Float) series may be different to the image on the right hand side of page 1) www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 6: Warranty Conditions
If you require a refund, return the item to the original place of purchase. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... - Page 7 If the pump is direct-wired to the electrical circuit, contact your qualified licensed electrician to disconnect if required. DO NOT ATTEMPT ELECTRICAL REPAIRS OF ANY SORT UNLESS YOU ARE A LICENSED ELECTRICIAN Brand Model/Series which includes Vertical Float Versions Warranty Period REEFE DRS160 12 Months REEFE RHS125 12 Months...
