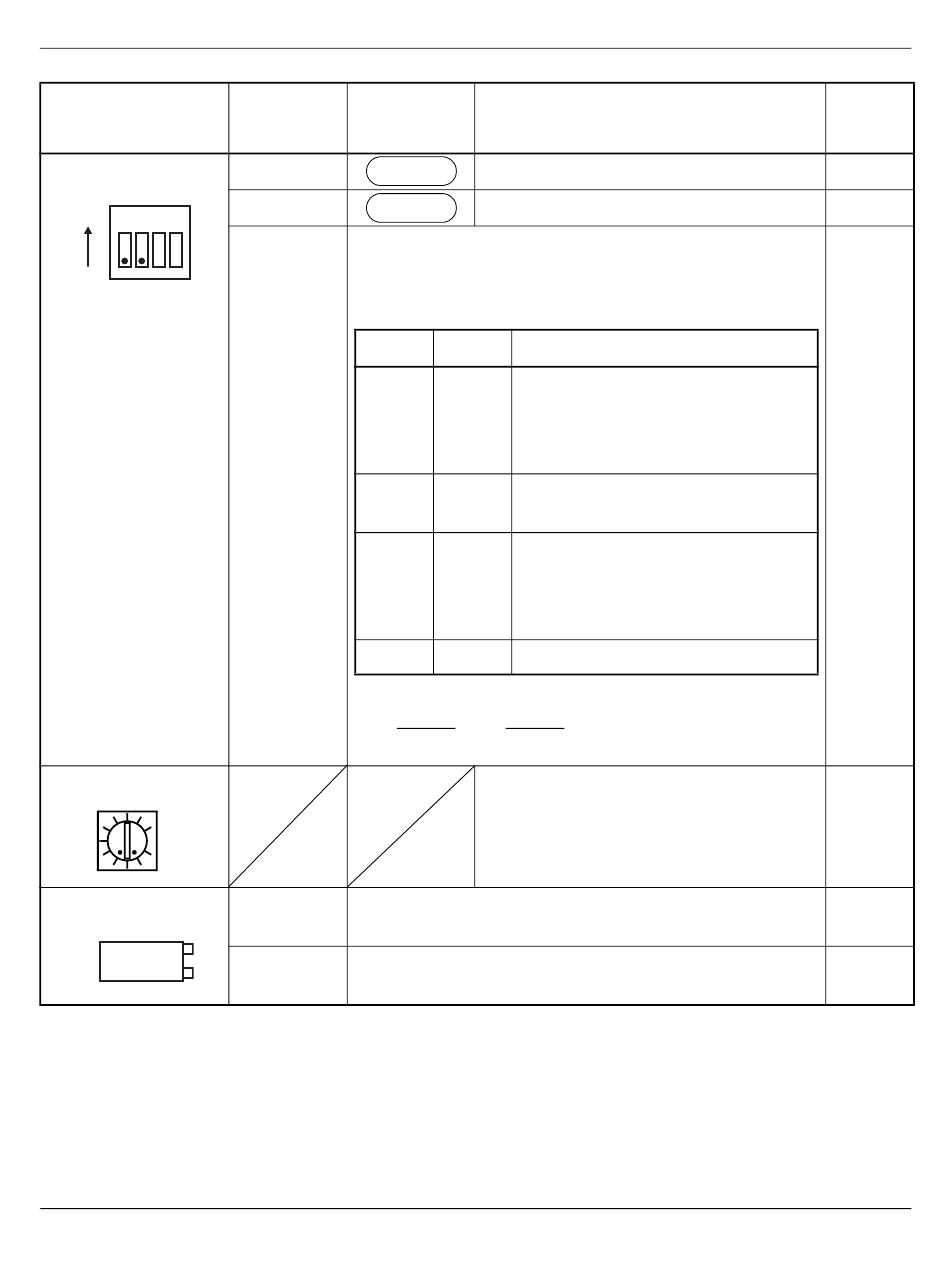

NEC UNIVERGE NEAX IPS Hardware Installation Manual page 178

SWITCH NAME
SW4 (Dip SW)
ON
1 2 3 4
VR (Rotary SW)
20
0
DK (Connector)
02
01
SWITCH SETTING
NUMBER POSITION
1 OFF
2 OFF
Selection of PLO1 input
(Phase Locked Oscillator)
• For clock receiver office:
SW4-3
OFF
ON
3, 4
OFF
ON
• For clock source office:
SW4-3
OFF
02 Ground detection
01 Ground sending
PN-CP24-A/PN-CP24-B/PN-CP24-C/PN-CP24-D (MP)
FUNCTION
Not used
Not used
SW4-4 FUNCTION
OFF 1.5 MHz clock
[For PN-24DTA/PN-24CCT/
PN-24PRT/PN-CP24-D/PN-DTA/
PZ-M649]
OFF 192 kHz clock
[For PN-BRTA]
ON 2 MHz clock
[For PN-30DTC/PN-2BRT/
PN-4BRT/PN-30CCT/PN-30PRT/
PN-DTA/PN-CP24-D/PZ-M650]
ON Not used
SW4-4
OFF
Variable Resistor for External Hold
Tone Source
(0-20 kΩ: Clockwise)
– 168 –
