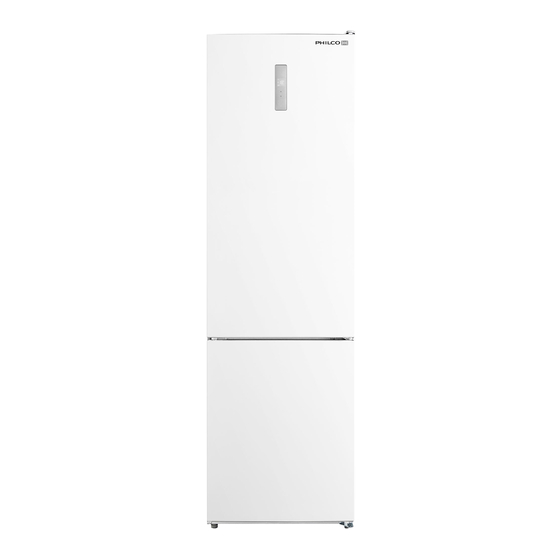

REFRIGERATOR-FREEZER
USER'S MANUAL
PCN 330 EW
PCN 330 EX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCN 330 EW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Philco PCN 330 EW

  • Page 1 REFRIGERATOR-FREEZER USER’S MANUAL PCN 330 EW PCN 330 EX...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user‘s manual. Copyright © 2020, Fast ČR, a. s. Revision 09/2023...
  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY INFORMATION........................2 1.1 Meanings of safety warning symbols ..........................12 1.2 Electricity related warnings ..............................12 1.3 Warnings for using ..................................13 1.4 Warnings for placement................................14 PART 2: PROPER USE OF THE REFRIGERATOR.....................15 2.1 Placement ....................................15 2.2 Leveling of appliance ................................16 2.3 Door Right-Left Change ................................17 2.4 Changing the light ..................................21 2.5 Starting ......................................21...
  • Page 4: Part 1: Safety Information

    PART 1: SAFETY INFORMATION FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES.
  • Page 5 ● IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE SUPPLY CABLE IS DAMAGED. ● WARNING: THE VENTILATION OPENINGS IN THE APPLIANCE HOUSING OR IN ITS CONSTRUCTION MUST BE KEPT FREE.
  • Page 6 THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS: – KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; – APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; – APPLIANCES USED IN BED-AND-BREAKFAST FACILITIES; –...
  • Page 7 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS CONTAINS COOLING GAS ISOBUTANE R600a REFRIGERANT THE REFRIGERANT ISOBUTENE (R600a) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE,A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY,WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE,ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED.
  • Page 8 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED: - AVOID OPENING FLAMES AND SOURCES OF IGNITION. - THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE IS SITUATED. IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY THIS PRODUCT IN ANY WAY.
  • Page 9 IF THE COOLING APPLIANCE IS LEFT EMPTY FOR A LONGER PERIOD OF TIME, IT SHOULD BE SWITCHED OFF, DEFROSTED, CLEANED AND DRIED AND THE DOOR SHOULD BE LEFT OPEN TO PREVENT MOULD FROM FORMING INSIDE THE APPLIANCE. ELECTRICAL SAFETY 1. THE POWER CORD MUST NOT BE LENGTHENED. 2.
  • Page 10 THE FRIDGE MUST EMPLOY A SPECIAL POWER SOCKET INSTEAD OF COMMON ONE WITH OTHER ELECTRIC APPLIANCES. ITS PLUG MUST MATCH THE SOCKET WITH GROUND WIRE. DAILY USE ● DO NOT STORE FLAMMABLE GAS OR LIQUIDS IN THE APPLIANCE, THERE IS A RISK OF AN EXPLOSION. ●...
  • Page 11 ● THE APPLIANCE IS INTENDED FOR KEEPING FOOD STUFF AND/ OR BEVERAGES IN NORMAL HOUSEHOLD AS EXPLAINED IN THIS INSTRUCTION BOOKLET. YOU SHOULD TAKE CARE WHEN MOVE IT AS THE APPLIANCE IS HEAVY. ● DO NOT REMOVE OR TOUCH ITEMS FROM THE FREEZER COMPARTMENT IF YOUR HANDS ARE DAMP/WET, AS THIS COULD CAUSE SKIN ABRASIONS OR FROST/FREEZER BURNS.
  • Page 12 INSTALLATION IMPORTANT! ● FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT. ● DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT.
  • Page 13 ● BEFORE CONNECTING THE REFRIGERATOR I FREEZER, MAKE SURE THAT THE MAINS VOLTAGE CORRESPONDS TO THE REQUIREMENTS FOR CONNECTING THE REFRIGERATOR / FREEZER. IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. ● THE APPLIANCE MUST BE CONNECTED TO A SOCKET WITH THE APPROPRIATE VOLTAGE AND A CORRECTLY INSTALLED FUSE SOCKET.
  • Page 14: Meanings Of Safety Warning Symbols

    1.1 Meanings of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;...
  • Page 15: Warnings For Using

    • Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer. 1.3 Warnings for using • Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist • Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. • The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
  • Page 16: Warnings For Placement

    • Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused. • Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused. 1.4 Warnings for placement • Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents. • Do not place flammable items near the refrigerator to avoid fires. • The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc. • Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator;...
  • Page 17: Part 2: Proper Use Of The Refrigerator

    PART 2: PROPER USE OF THE REFRIGERATOR 2.1 Placement • Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. • Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. • Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator. • The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable). • This refrigerator needs to be installed independently and cannot be used as a built-in. Otherwise, it will cause problems such as failure to install into the cabinet, the performance and life of the product are reduced.
  • Page 18: Leveling Of Appliance

    • Spare enough space for convenient opening of the doors and drawers. The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor. Climate class and meaning: Description Class Ambient temperature °C Expanded +10 to +32 Temperate +16 to +32 Subtropical +16 to +38 Tropical...
  • Page 19: Door Right-Left Change

    ( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator; b. Turn the feet counterclockwise to lower the refrigerator; c. Adjust the right and left feet based on the procedures above to a horizontal level. 2.3 Door Right-Left Change The side at which the door opens can be changed, from the right side (as supplied) to the left side if required.
  • Page 20 1) Please power off this appliance before conduct this operation Remove all food from door shelves. Fix the door by tapes. 2) Dismantle the upper hinge cover, screws and upper hinge, and remove the hole cover from the other side, unplug the wiring connector on the right side of refrigerator top (1, 3 wiring connector). hinge cover hole cover upper hinge 3) Take off refrigerating chamber door as well as screws crew cover, sticker and middle hinge, hole cap . middle hinge screw hole cap sticker cover screw EN - 18...
  • Page 21 4) Take off freezing chamber door .dismantle bottom hinge, hole caps. Install shaft of bottom hinge on the other side and install the bottom hinge on the other side of bottom beam. shaft shaft hole cap bottom hinge 5 a) Remove the upper cover of refrigerating chamber door,install the upper hinge sleeve,door signal line to the other side and install the door upper cover, Dismantle the stopper and sleeve pipe from the right bottom of freezing chamber door, take out another spare stopper(for reversible door), and assemble the sleeve pipe and spare stopper on left bottom of...
  • Page 22 6) Put freezing door on bottom hinge install middle hinge hole caps crew cover and sticker. hole cap screw middle hinge cover cover screw 7) Take out the left top hinge , left top hinge cover from accessories package. Put refrigerating door on middle hinge .install top hinge connect signal line terminal ® itkv signal line terminal 1, connect signal line terminal 2 Itkv signal line terminal 3;...
  • Page 23: Changing The Light

    2.4 Changing the light • Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer,its service agent or similar qualified person. Light source in this product is replaceable only by qualified engineers. 1. Please take out the plug 2. Remove the lampshade with a before removal. screwdriver. 3. Take down the lamp panel. 4.
  • Page 24: Part 3: Structure And Functions

    PART 3: STRUCTURE AND FUNCTIONS 3.1 Key components LED lighting Door tray Door tray Shelf Fruits and Door tray vegetables box Chill drawer Drawer (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor! EN - 22 Copyright © 2020, Fast ČR, a. s. Revision 09/2023...
  • Page 25: Functions

    Refrigerating chamber • The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term,suggested storage time 3days to 5days. • Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature. • Foods are recommended to be sealed up before putting into the refrigerator. • The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use. Freezing chamber • The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice. • The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in shortterm. • Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access.. Please be noted food shall be consumed within the shelf time. Chill drawer • Suitable for short term (1-3 days) to eat fresh fish, fresh meat, fresh food, etc.
  • Page 26 1. Display: a) When power on the refridgerator for the 1 st time, the whole dispaly panel will shine for 3 seconds. Then the dispaly panel enters the normal display. Open door display light on; When the door closes, the display light goes out.The first time for using the refridgerator, the default set temperatures of refridgerating chamber is 5°C.
  • Page 27 Opening warning and alarm control When open the refrigerator door, the door open music will play. If the door is not closed in two minutes, the buzzer will keep ringing until the door is closed. Press any one button to stop the buzzer alarm. Fault indication The following warningsappearing on the display indicate corresponding faults of the refrigerator.
  • Page 28: Part 4: Maintenance And Care Of The Refrigerator

    PART 4: MAINTENANCE AND CARE OF THE REFRIGERATOR 4.1 Overall cleaning • Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. • The interior of the refrigerator should be cleaned regularly to avoid odor. • Please turn off the power before cleaning interior, remove all foods, drinks .shelves, drawers, etc. • Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
  • Page 29: Cleaning The Glass Shelf

    4.2 Cleaning the glass shelf • Remove the drawer on the glass shelf; • Lift up the front of glass shelf (about 60°), and then pull out; • Remove the glass shelf and clean as needed; • The reverse operation is for installation of glass shelf. 4.3 Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. 4.4 Out of operation • Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours;...
  • Page 30: Part 5: Troubleshooting

    PART 5: TROUBLESHOOTING You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Failed operation • Check whether the appliance is connected to power or whether the plug is in well contact • Check whether the voltage is too low • Check whether there is a power failure or partial circuits have tripped Odor • Odorous foods shall be tightly wrapped • Check whether there is any rotten food • Clean the inside of the refrigerator Long-time operation of the • Long operation of the refrigerator is normal in summer when the ambient compressor...
  • Page 31: Part 6: Product Information Sheet

    PART 6: PRODUCT INFORMATION SHEET Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances Supplier's name or trademark: PHILCO Supplier's address: PHILCO, U Sanitasu 1621, 25101 Říčany, CZ Model identifier: PCN330EW / PCN330EX Type of refrigerating appliance: Low-noise appliance: Design type: freestanding Wine storage appliance:...
  • Page 32 Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz EN - 30 Copyright © 2020, Fast ČR, a. s.
  • Page 33 When contacting our authorized service, have the model designation, serial number and defect description available. To download documents, visit www.philco.cz. To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis. Subject to change without notice. EN - 31 Copyright © 2020, Fast ČR, a. s.
  • Page 34 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 35 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
  • Page 36 Výrobce/Manufacturer: Fast ČR, a.s. U Sanitasu 1621 Říčany 251 01, CZECH REPUBLIC Distributor: FAST PLUS, a.s., Vlčie hrdlo 324/90 821 07 Bratislava, SLOVAKIA Distributor: FAST POLAND Sp. z o. o. Kwietniowa 36 05-090 Wypędy, POLAND Distributor: FAST HUNGARY Kft. H-2310 Szigetszentmiklós Kántor utca 10, HUNGARY is pending or registered trademark of Electrolux Home Products, Inc.
