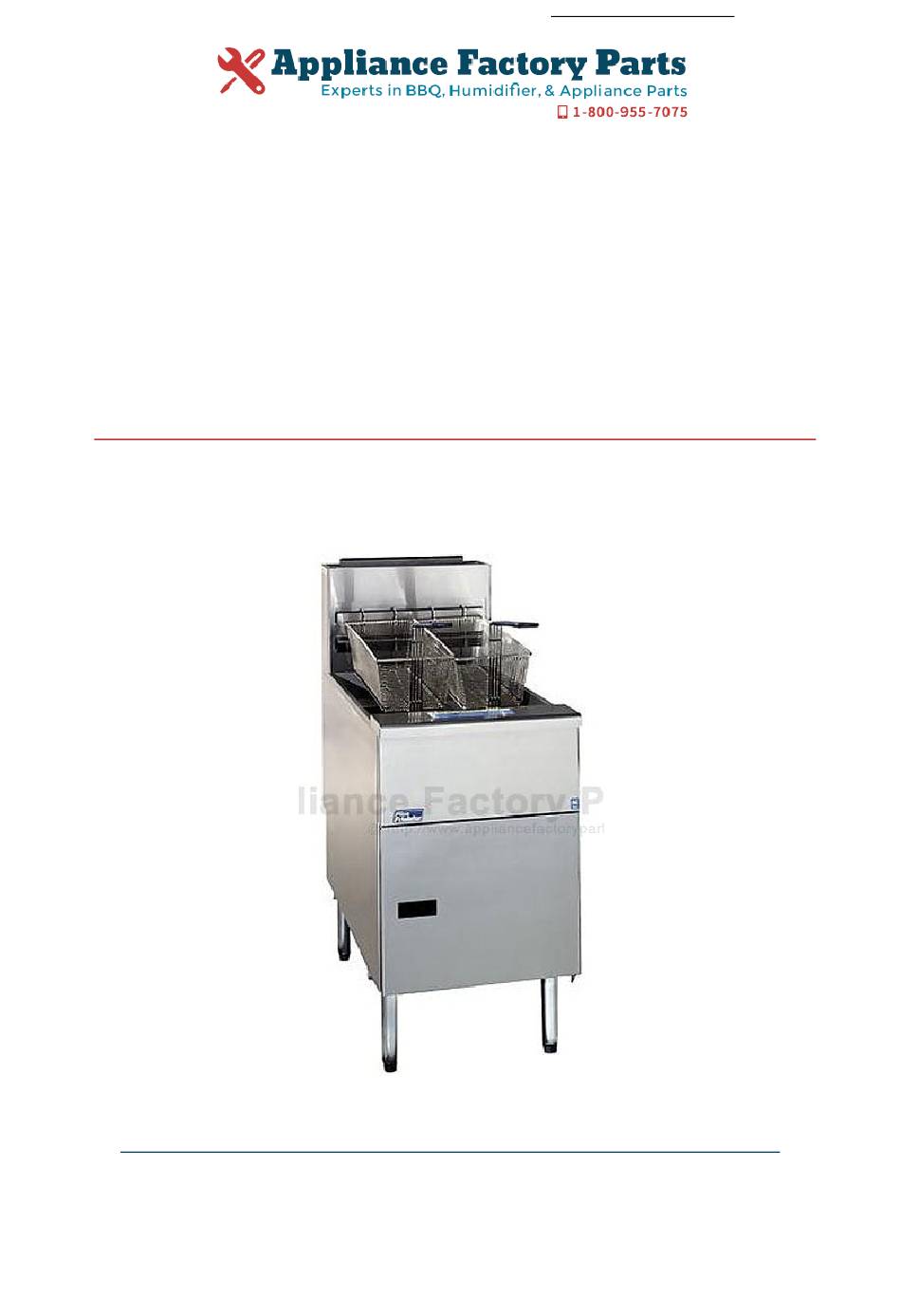

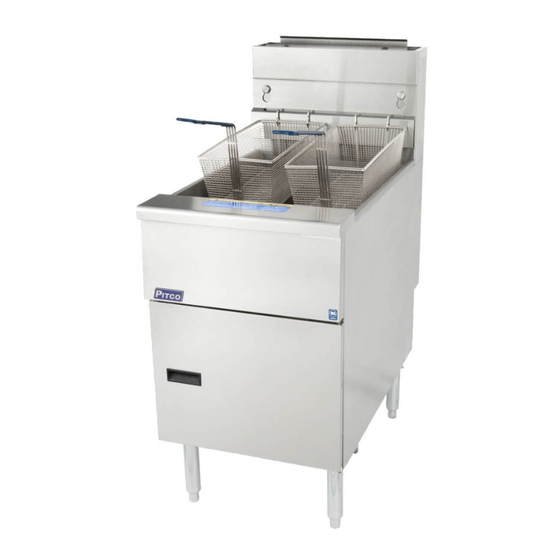

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. PITCO SE18S Owner's Manual Shop genuine replacement parts for PITCO SE18S Find Your PITCO Deep Fryer Parts - Select From 19 Models -------- Manual continues below --------...
  • Page 2 For Electric Fryers Covering Models SE, SEH Series Pitco Frialator, Inc., P.O. Box 501, Jct I-89 & I-93 Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304 (800) 258-3708 • (603) 225-6684 • FAX (603) 225-8497 L20-246 Rev 01(11/09)
  • Page 3 WARNING! FIRE HAZARD THE OIL LEVEL SHOULD NOT FALL BELOW THE MINIMUM INDICATED LEVEL AT ANY TIME. THE USE OF OLD OIL CAN BE DANGEROUS AS IT WILL HAVE A REDUCED FLASH- POINT AND BE MORE PRONE TO SURGE BOILING. WARNING INSTALLATION AND ALL CONNECTIONS MUST BE MADE ACCORDING TO NATIONAL AND LOCAL REGULATIONS AND CODES IN FORCE.
  • Page 4 WARRANTY STATEMENT FOR YOUR SAFETY: DO NOT STORE OR USE GASOLINE OR Pitco Frialator, Inc. makes the following limited war- OTHER FLAMMABLE VAPORS AND ranties to the original purchaser only for this equip- LIQUIDS IN THE VICINITY OF THIS OR ment and replacement parts: ANY OTHER APPLIANCE.

  • Page 5: Installation Instructions

    All installations must conform to all local and national codes. Do not block the area around the casters and under the fryers. Contact the Authorized Pitco Frialator representative for any service related problems. Routine maintenance may be performed by qualified personnel.

  • Page 6: Equipment Set Up And Shut Down Procedures

    Pitco fryer. Place the basket support rack on top of the shorten- ing before turning the unit ON.

  • Page 7: Draining A Tank

    FILTER PROCEDURES FOR return valve to the tank you are filtering. This will start the pump and return the oil to FLAT PAPER FILTER SYSTEMS the bottom of the fry tank. NOTE When bubbles are seen coming out of the oil When working with hot oil ALWAYS wear oil return spout, close the red handled valve to proof, insulated gloves.
  • Page 8 · Place the Paper Support Screen in the bottom of the pan. · Place filter Paper or Pad over screen making sure that there is an equal amount of excess paper on each side. · Place the Retaining Frame on the paper or pad making sure that all edges are being pressed down evenly.

  • Page 9: Filter Media Replacement

    FILTER PROCEDURES FOR WARNING ENVELOPE PAPER FILTER SYSTEMS This filter pan is only large enough to hold the contents of one (1) tank at once, during the NOTE filter process. When working with hot oil ALWAYS wear oil-proof, insulated gloves. When the tank is empty, close the green handled drain valve.
  • Page 10 WARNING Fold the open end of the bag in two folds. At operating temperature, the shortening in The first fold should be approximately 1 the fryer may be hotter than 375°F (190°C). inch from the end and the second should be This hot, melted shortening will cause severe over the edge of the rack assembly.
  • Page 11 MULTIPLE LEVEL COMPUTER PROGRAMMING INSTRUCTIONS POWER ON/OFF KEY PROGRAM KEY POWER ON/OFF KEY TEMPERATURE KEY TIME KEY PRODUCT KEYS TO CHECK ACTUAL TEMP. After 5 secs. machine will return to run mode. TO CHECK SET TEMP. After 5 secs. machine will return to run mode. TO CHECK COOK, SHAKE, AND HOLD TIMES THEN THE PRODUCT KEY DESIRED NOTE: THE TIMES WILL BE DISPLAYED IN SEQUENCE PAUSING MOMEN-...
  • Page 12 L20-246 Rev 1 (11/09)
  • Page 13 L20-246 Rev 1 (11/09)
  • Page 14 L20-246 Rev 1 (11/09)

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Computer does not come on A. Main circuit breaker is A. Locate the correct building circuit breaker nothing shows in either display turned off and turn OFF and back ON again. B. Fryer fuse is blown B.
  • Page 16 L20-246 Rev 1 (11/09)
  • Page 17 Pitco Frialator fac- your equipment, please contact the Pitco Frialator tory at: Authorized Service and Parts representative (ASAP) covering you area, or contact Pitco at the (800)258-3708 US and Canada only or numbers listed to the left. (603)225-6684 World Wide...

This manual is also suitable for:

Seh seriesSe series
