CommandCenter Secure Gateway E1 Models
Quick Setup Guide
Raritan's management software platform engineered to consolidate secure access and control of IT devices.

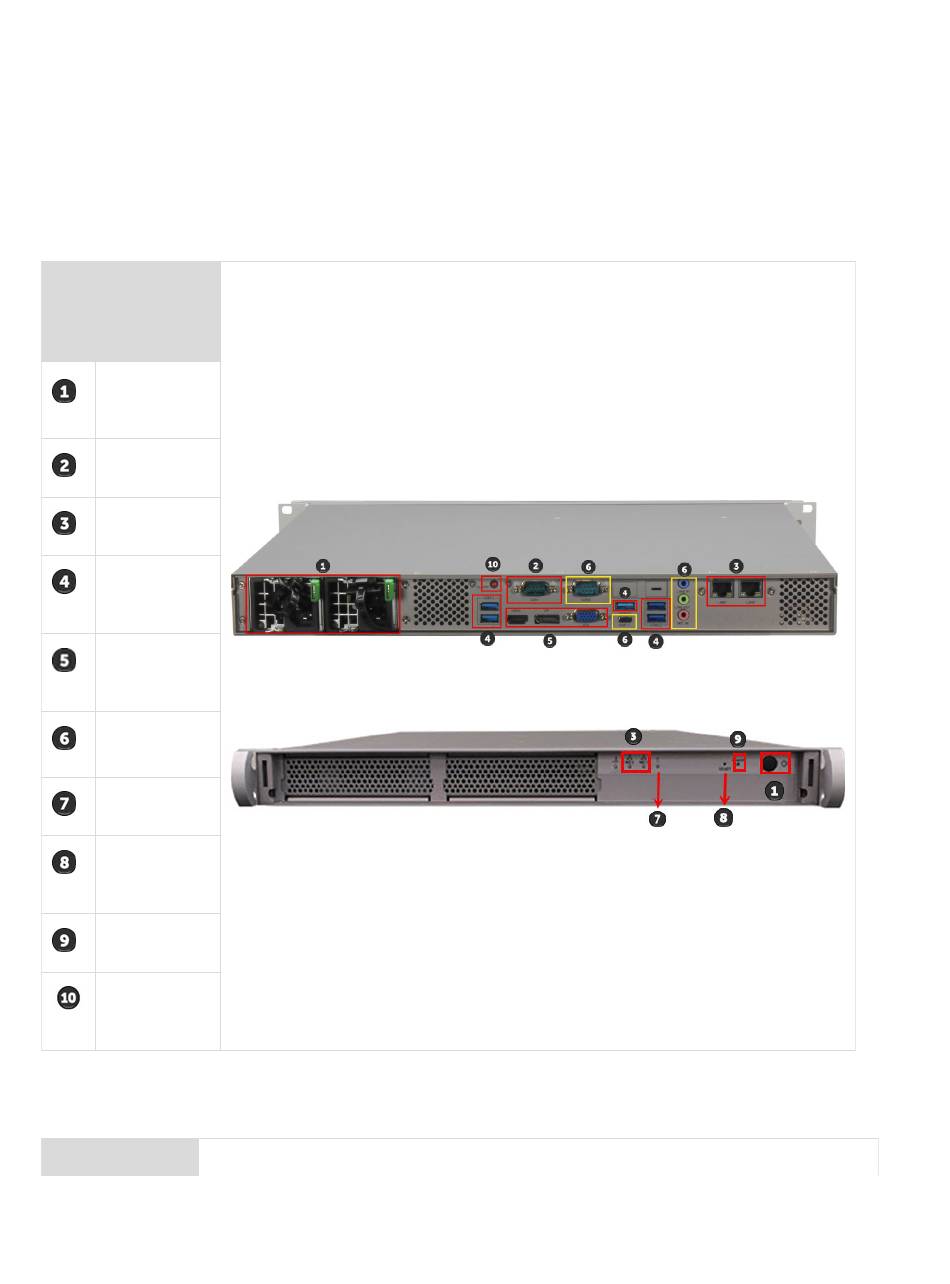

CC-SG E1-5 Hardware Models
Diagram Key
Power
Serial Port
LAN Ports
USB Ports (3
light blue, 2 dark
blue}
Visual Ports (1
HDMI, 1 DP, 1
VGA)
Extra Ports
Do not use
Disk LED
Reset Port
(restarts the CC-
SG)
Power LED
Power Alarm
push button and
LED
E1-3 and E1-4 Models (EOL hardware versions)
CC-SG E1-3 and E1-4 Hardware Models
Diagram Key
CC-SG-E1-3
Back View
Front View
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Raritan CommandCenter CC-SG E1-5
Summary of Contents for LEGRAND Raritan CommandCenter CC-SG E1-5
- Page 1 CommandCenter Secure Gateway E1 Models Quick Setup Guide Raritan's management software platform engineered to consolidate secure access and control of IT devices. CC-SG E1-5 Hardware Models Diagram Key Power Serial Port Back View LAN Ports USB Ports (3 light blue, 2 dark blue} Visual Ports (1 HDMI, 1 DP, 1...
- Page 2 Power KVM Ports LAN Ports CC-SG-E1-4 Extra ports Do not use.
-
Page 3: Determine Rack Location
I. Unpack CC-SG With your shipment, you should receive: • • 1-CommandCenter Secure Gateway E1 unit • • 1-CommandCenter Secure Gateway E1 front bezel • • 1-Rack mount kit • • 2-Power supply cord • • 1-Printed Quick Setup Guide Determine Rack Location Decide on a location in the rack for CC-SG, in a clean, dust-free, well-ventilated area. - Page 4 ▶ Install Outer Rails onto Rack 1. The outer rails attach to the rack. The outer rails will fit racks that are 28-32 inches deep. 2. Attach the short front brackets to each outer rail with short screws. Note the up/Front indication on the brackets when attaching them.
-
Page 5: Default Cc-Sg Settings
6. Choose Operation > Network Interfaces > Network Interface Config. The Administrator Console appears. 7. In the Configuration field, select DHCP or Static. If you select Static, type a static IP address. If needed, specify DNS servers, netmask, and gateway address. 8. -
Page 6: Find Your Host Id
1. Launch a supported browser and type the URL of the CC-SG: https://<IP address>/admin. For example, https://192.168.0.192/admin. Note: The default setting for browser connections is HTTPS/SSL encrypted. 2. When the security alert window appears, accept the connection. 3. You will be warned if you are using an unsupported Java Runtime Environment version. Follow the prompts to either download the correct version, or continue.
