LEGRAND Arteor 5 742 09 Quick Start Manual

Arteor
TM
Connected starter pack

1. USE

This pack enables you to create a connected installation in your home.
It can be used to control lighting, roller shutters and electrical equipment plugged into connected products
- using your smartphone and the Home + Control app
- using voice assistants
- from the general control at the entrance to your home

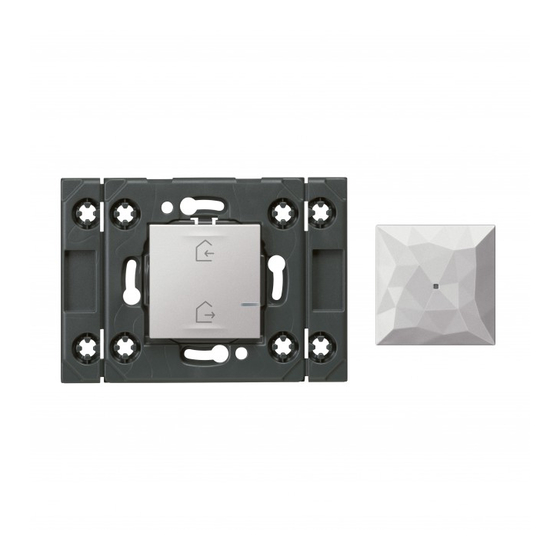

Comprises:
• A gateway (Zigbee relay/WiFi)
Installation in 1-gang box 35 mm deep (minimum), instead of a standard product.
Claw and/or screw fixing.
• A wireless general control, used to control leaving home/coming home scenes involving lights, roller shutters and connected sockets.
- Fixes directly on the wall or screws onto a flush-mounting box.
- Fits on a piece of furniture (movable).

2. RANGE

Gateway:
To be equipped with support frame and plate
Additional wireless general control:
Supplied with secable support frame, rocker plate and a battery.
Equipped with an LED indicator (configuration) and a RESET button (hidden) used
to return to factory settings.
Repositionable self-adhesive fixings (x 4 supplied).

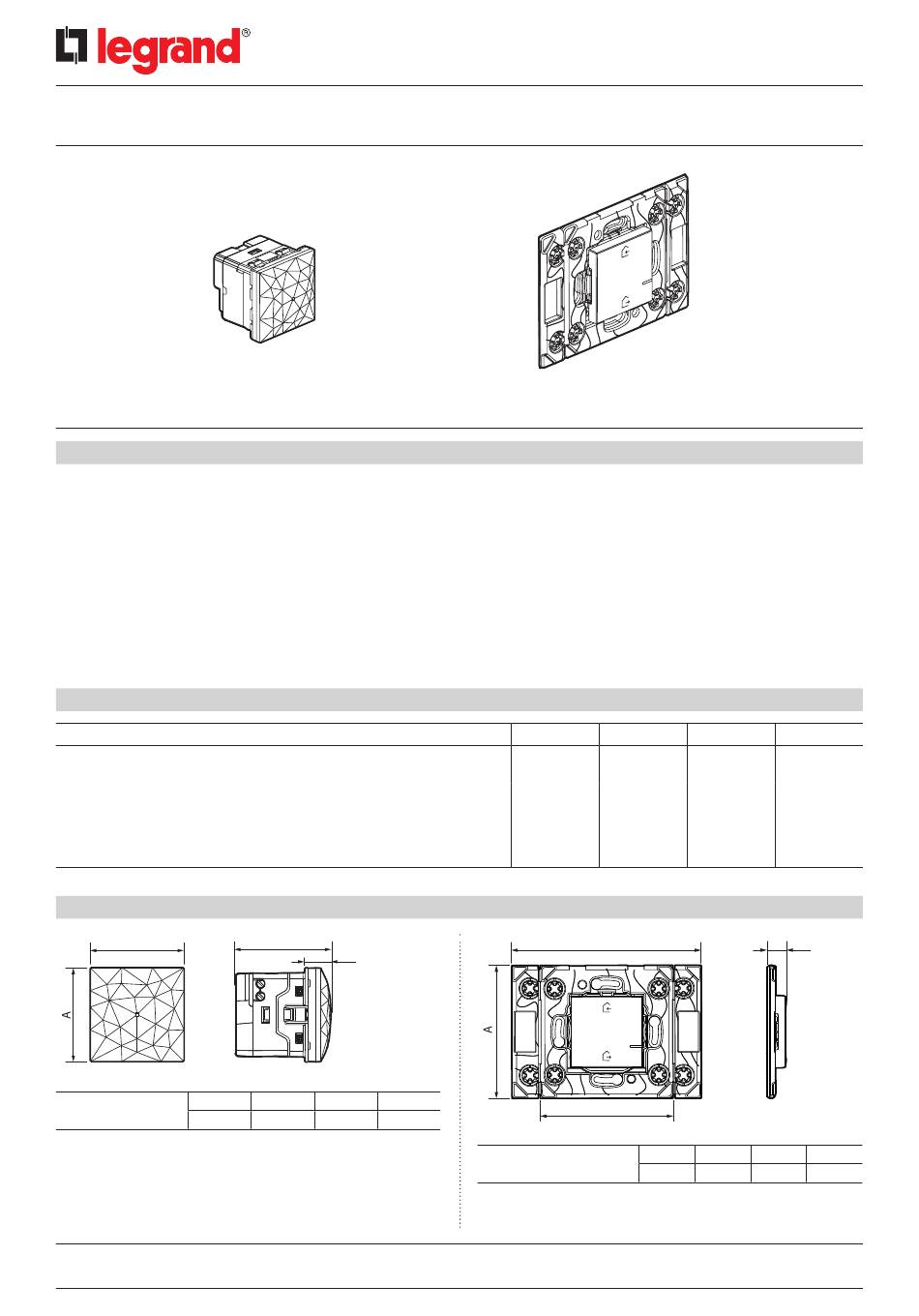

3. DIMENSIONS (mm)

B
A
Gateway
45
Technical data sheet: F02616EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
Gateway
Description
C
D
B C D
45 46 12.5
General control
White Champagne
5 742 09
B
B'
Wireless General Control
Updated:
Cat. Nos: 5 742 09/18/27/36
Magnesium
5 742 36 5 742 27
A B B'
82 116.5 82
Created: 09/04/2018
Soft Alu
5 742 18
C
C
12
1/2
