Quick Start Guide
802.11ax Dual-Band Enterprise Access Point
EAP101 (P)
1
1.

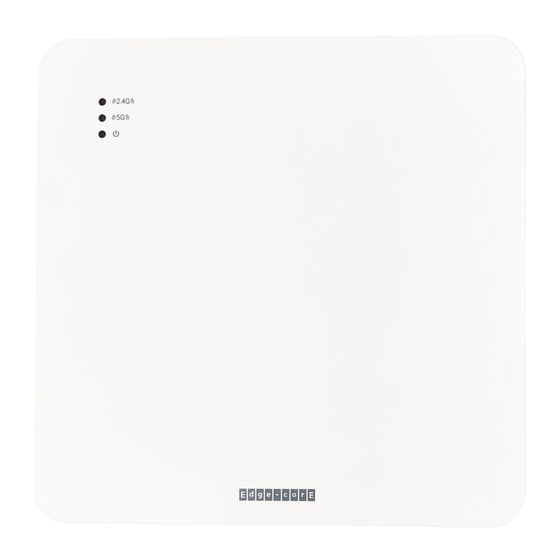

EAP101 (P) access point
2.
AC power adapter with international socket converters
3.
Mounting bracket accessory
1
2
3
7
Warning:
For indoor use only. The access point, AC power
adapter, and all connected cables are not for outdoor use.
1
Mount the AP
a. Mounting on a Wall
1
1.
At the installation location on the wall, use the mounting bracket to
mark four holes for the wall plugs and screws (included in the screw
kit).
Drill four holes for the wall plugs, and then insert the plugs and tap
them flush with the wall surface.
Note:
Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
Use the four screws to secure the bracket to the wall.
www.edge-core.com

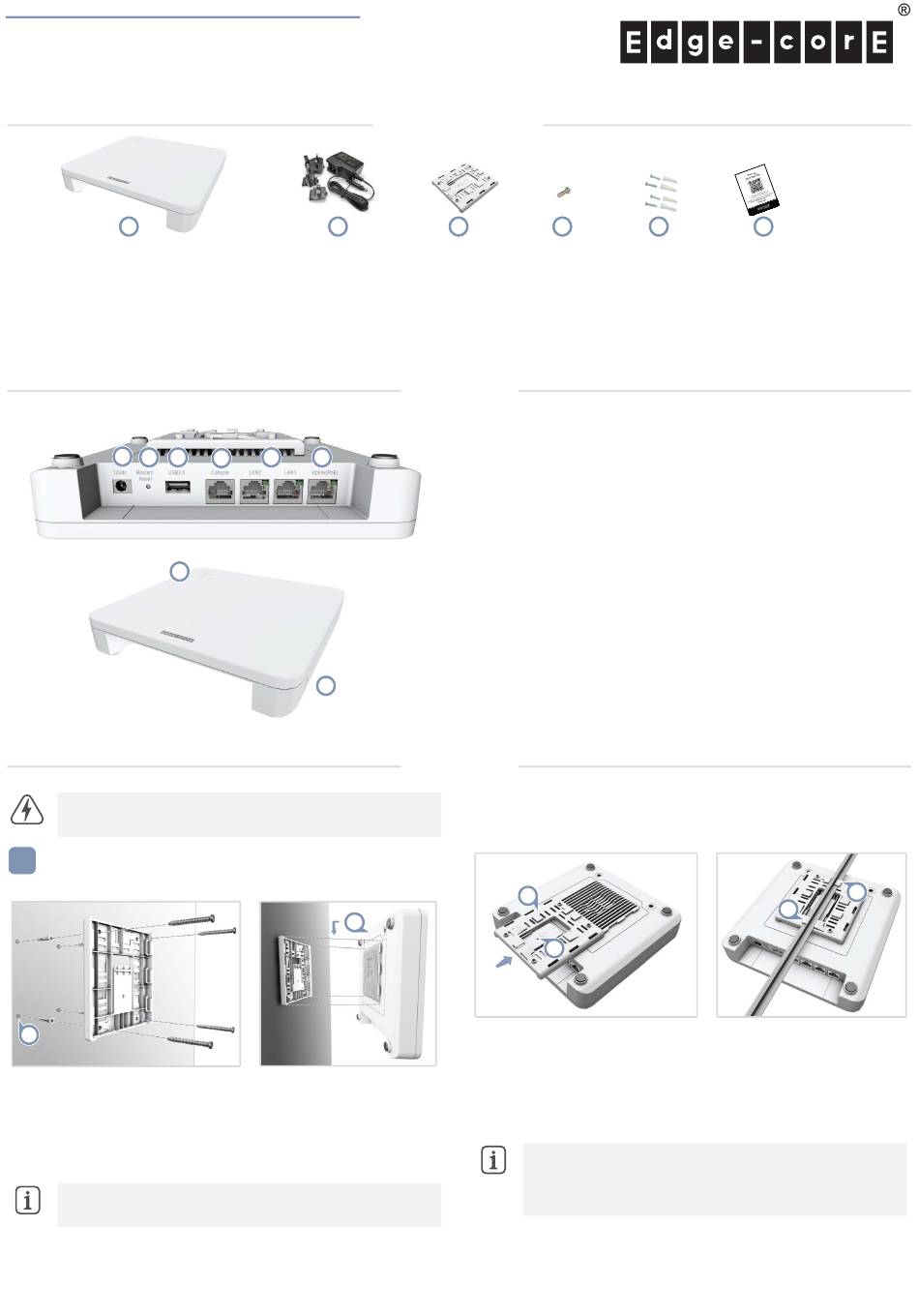

Package Contents
2
5
6
4
8
2
3
4
4.
Mounting bracket security screw
5.
Screw kit—4 screws and 4 plugs
6.
QR code card
Overview
1.
12 VDC power input
2.
Restart/Reset button:
A quick press restarts the system.
Press and hold for 5 seconds resets to factory defaults.
3.
USB 2.0 port (reserved for future use)
4.
Console port (not functional)
5.
LAN1/LAN2 Ports: 1Gbps connection to LAN devices.
Port LED: On (link), Blinking (traffic)
6.
Uplink(PoE) Port: 2.5Gbps connection to 802.3at PoE.
Port LED: On (link), Blinking (traffic)
7.
System LED Indicators:
2.4G: On (radio on), Blinking (traffic)
5G: On (radio on), Blinking (traffic)
Power/Status: On (power OK), Blinking (boot up)
8.
Kensington lock slot
Installation
2.
With its ports facing down, place the AP over the bracket flanges
and then slide it down until it snaps into its secured position.
b. Mounting on a Suspended Ceiling T-Bar
1
2
1.
Slide the bracket accessory onto the base of the AP until it clicks into
its locked position.
2.
Use the included security screw to secure the bracket to the AP.
3.
Position the ceiling-mount clip holders on either side of the T-bar,
and then turn the AP until the two clips lock it to the T-bar.
Note:
The AP mounting supports two different sizes of
suspended ceiling T-bars. The position illustrated above is for
24.5 mm bars. Use the position at a 90 degrees angle for
15 mm bars.
– 1 –
5
6
3
E032023-CS-R01
3
