Edge-Core EAP102 Quick Start Manual
Edge-Core EAP102 Quick Start Manual

Edge-Core EAP102 Quick Start Manual

Dual-band wi-fi 6 indoor access point
Hide thumbs Also See for EAP102:

Advertisement

Quick Links

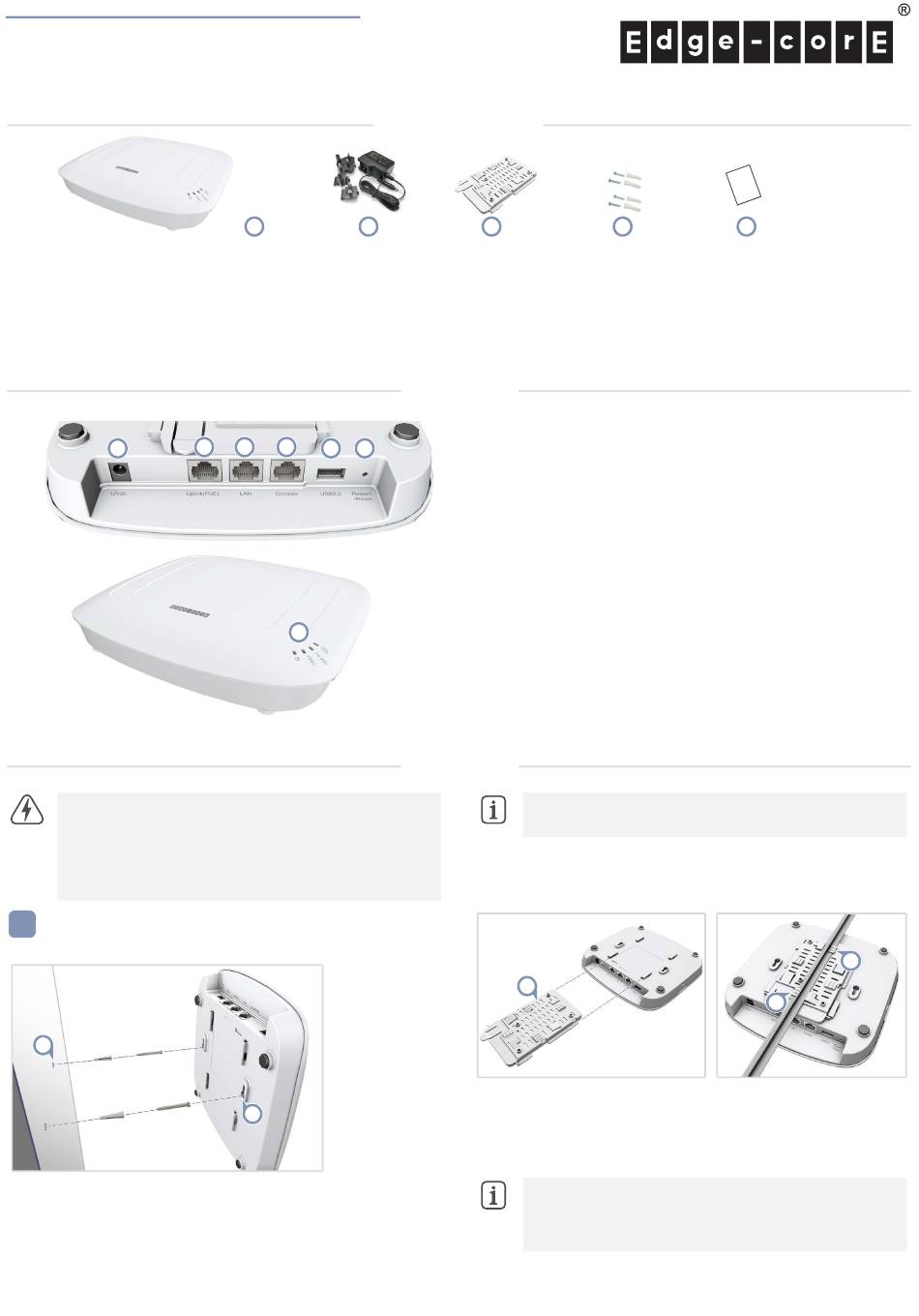

Quick Start Guide
Dual-Band Wi-Fi 6 Indoor Access Point
EAP102 (P)
1.
EAP102 (P) access point
2.
AC power adapter with international socket converters
3.
Mounting bracket accessory
1
Warning:
For indoor use only. The access point, AC power
adapter, and all connected cables are not for outdoor use.
Avertissement:
Pour une utilisation en intérieur
uniquement. Le point d'accès, l'adaptateur secteur et tous les
câbles connectés ne sont pas destinés à une utilisation en
extérieur.
1
Mount the AP
a. Mounting on a Wall
1
1.
At the installation location on the wall, set two screws in the wall
128 mm (5.0 in.) apart. Use the wall plugs and screws included in the
screw kit.
www.edge-core.com
1
2
4
2
3
5
6
7
2
Package Contents
3
4.
Screw kit—4 screws and 4 plugs
5.
QR code card
Overview
1.
12 VDC power input
2.
Uplink(PoE) Port: 2.5Gbps connection to 802.3at PoE LAN device.
3.
LAN Port: 2.5Gbps connection to LAN devices.
4.
Console port (not functional)
5.
USB 2.0 port (reserved for future use)
6.
Restart/Reset button:
A quick press restarts the system.
A 5 second press resets to factory defaults.
7.
System LED Indicators:
Uplink(PoE): On (link), Blinking (traffic)
2.4G: On (radio on), Blinking (traffic)
5G: On (radio on), Blinking (traffic)
Status: On (power OK), Blinking (boot up)
Installation
Note:
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
2.
Slide the AP's wall mounting slots down onto the screws so that the
unit is secure.
b. Mounting on a Suspended Ceiling T-Bar
1
1.
Slide the bracket accessory onto the base of the AP until it clicks into
its locked position.
2.
Position the ceiling-mount clip holders on either side of the T-bar,
and then turn the AP until the two clips lock it to the T-bar.
Note:
suspended ceiling T-bars. The position illustrated above is for
24.5 mm bars. Use the position at a 90 degrees angle for
15 mm bars.
– 1 –
4
5
Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
The AP mounting supports two different sizes of
2
2
E072023-CS-R01
