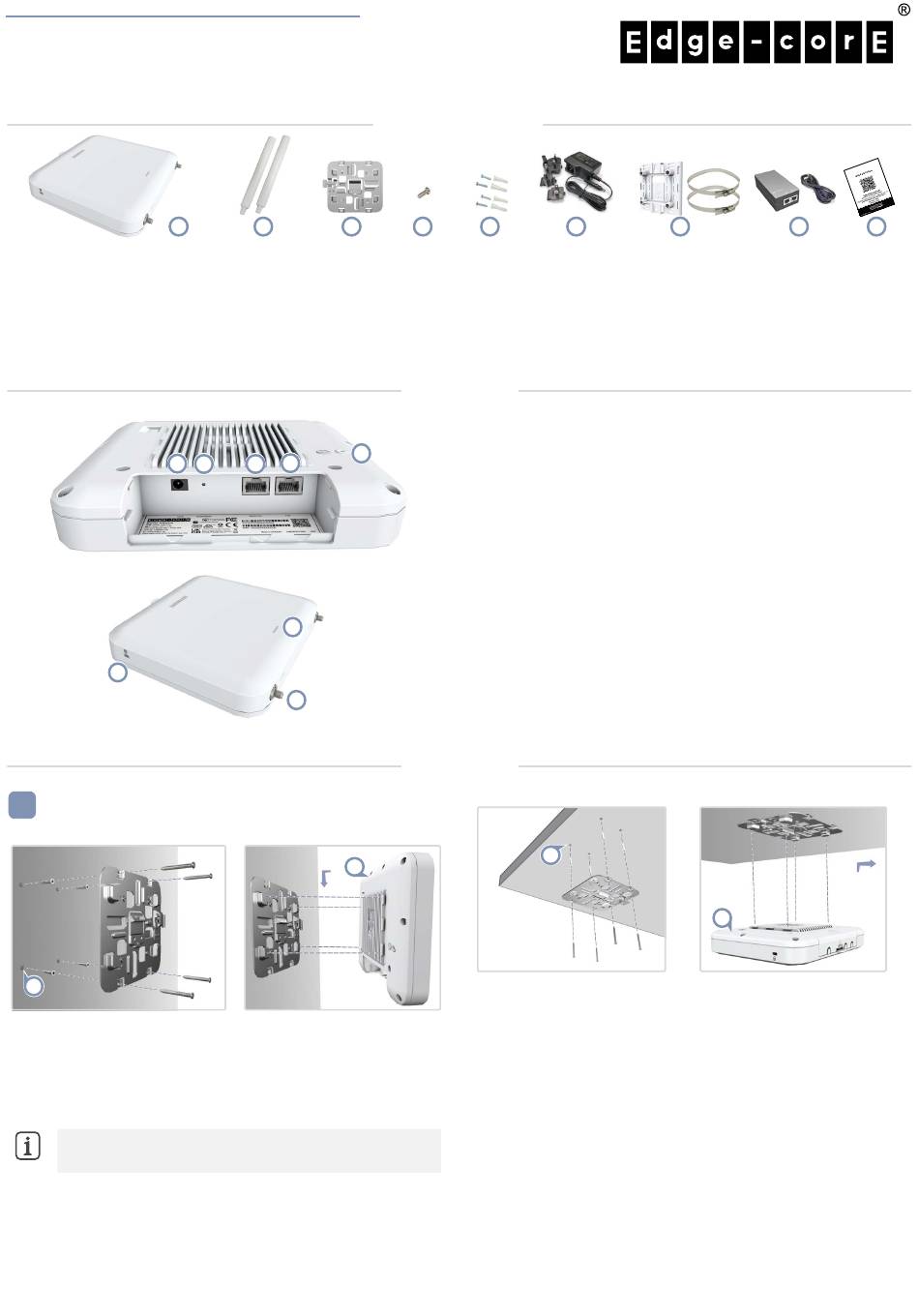

Quick Start Guide
Wi-Fi 6 Access Point
EAP111e
1
1.
EAP111e access point
2.
2 external antennas
3.
Mounting bracket accessory
4.
Mounting bracket security screw
5.
Screw kit—4 screws and 4 plugs
1
7
1
Mount the AP
a. Mounting on a Wall
1
1.
At the installation location on the wall, use the mounting bracket to
mark four holes for the wall plugs and screws (included in the screw
kit).
Drill four holes for the wall plugs, and then insert the plugs and tap
them flush with the wall surface.
Note:
Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
Use the four screws to secure the bracket to the wall.
2.
With its ports facing down, place the AP over the bracket flanges
and then slide it down until it snaps into its secured position.
www.edge-core.com
2
3
5
4
2
3
6
8
2
Package Contents
4
5
6.
(Option) AC power adapter with international socket converters
7.
(Option) Pole-mount kit—bracket and 2 steel-band hose clamps
8.
(Option) PoE injector and power cord
9.
QR code card
Overview
1.
12 VDC power input
2.
Restart/Reset button:
A quick press restarts the system.
Press and hold for 5 seconds resets to factory defaults.
3.
Uplink (PoE) Port: 10/100/1000BASE-T, 802.3at PoE
4.
LAN Port: 10/100/1000BASE-T
5.
Ground screw
6.
System LED Indicator:
Green: On (power OK), Blinking (boot up)
Blue: On (cloud managed)
Purple: Blinking (uplink activity in cloud-managed mode)
Orange: Blinking (uplink activity in stand-alone mode)
7.
Kensington lock slot
8.
External antenna connectors
Installation
b. Mounting on a Ceiling Without T-Bars
1
1.
At the installation location on the ceiling, use the mounting bracket to
mark four holes for the plugs and screws (included in the screw kit).
Drill four holes for the plugs, and then insert the plugs and tap them
flush with the ceiling surface.
Use the four screws to secure the bracket to the ceiling (screw torque
must be less than 6 kgf.cm).
2.
Place the AP over the bracket flanges and then slide it onto the
bracket until it snaps into its secured position.
– 1 –
6
7
2
8
9
E062024-CS-R01
