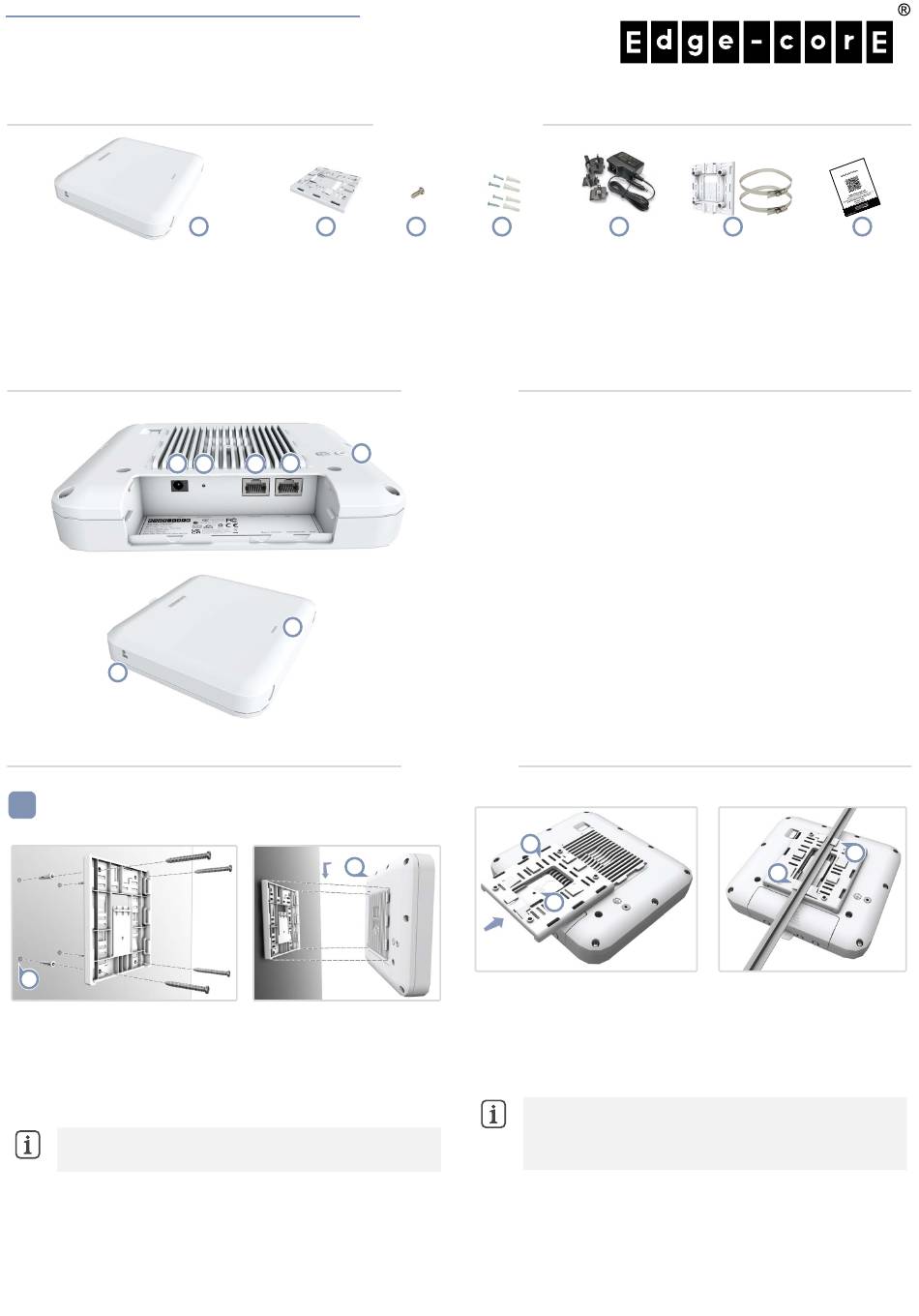

Quick Start Guide
Wi-Fi 6 Access Point
EAP111
1.

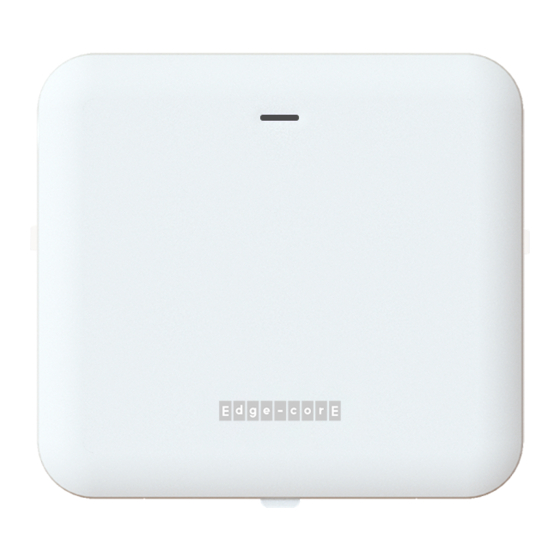

EAP111 access point
2.
Mounting bracket accessory
3.
Mounting bracket security screw
4.
Screw kit—4 screws and 4 plugs
1
7
1
Mount the AP
a. Mounting on a Wall
1
1.
At the installation location on the wall, use the mounting bracket to
mark four holes for the wall plugs and screws (included in the screw
kit).
Drill four holes for the wall plugs, and then insert the plugs and tap
them flush with the wall surface.
Note:
Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
Use the four screws to secure the bracket to the wall.
2.
With its ports facing down, place the AP over the bracket flanges
and then slide it down until it snaps into its secured position.
www.edge-core.com
1
2
5
4
2
3
6
2
Package Contents
3
4
5.
(Option) AC power adapter with international socket converters
6.
(Option) Pole-mount kit—bracket and 2 steel-band hose clamps
7.
QR code card
Overview
1.
12 VDC power input
2.
Restart/Reset button:
A quick press restarts the system.
Press and hold for 5 seconds resets to factory defaults.
3.
Uplink (PoE) Port: 10/100/1000BASE-T, 802.3at PoE
4.
LAN Port: 10/100/1000BASE-T
5.
Ground screw
6.
System LED Indicator:
Green: On (power OK), Blinking (boot up)
Blue: On (cloud managed)
Purple: Blinking (uplink activity in cloud-managed mode)
Orange: Blinking (uplink activity in stand-alone mode)
7.
Kensington lock slot
Installation
b. Mounting on a Suspended Ceiling T-Bar
1
2
1.
Slide the bracket accessory onto the base of the AP until it clicks into
its locked position.
2.
Use the included security screw to secure the bracket to the AP.
3.
Position the ceiling-mount clip holders on either side of the T-bar,
and then turn the AP until the two clips lock it to the T-bar.
Note:
suspended ceiling T-bars. The position illustrated above is for
24.5 mm bars. Use the position at a 90 degrees angle for
15 mm bars.
– 1 –
5
6
The AP mounting supports two different sizes of
7
3
3
E122023-CS-R01
