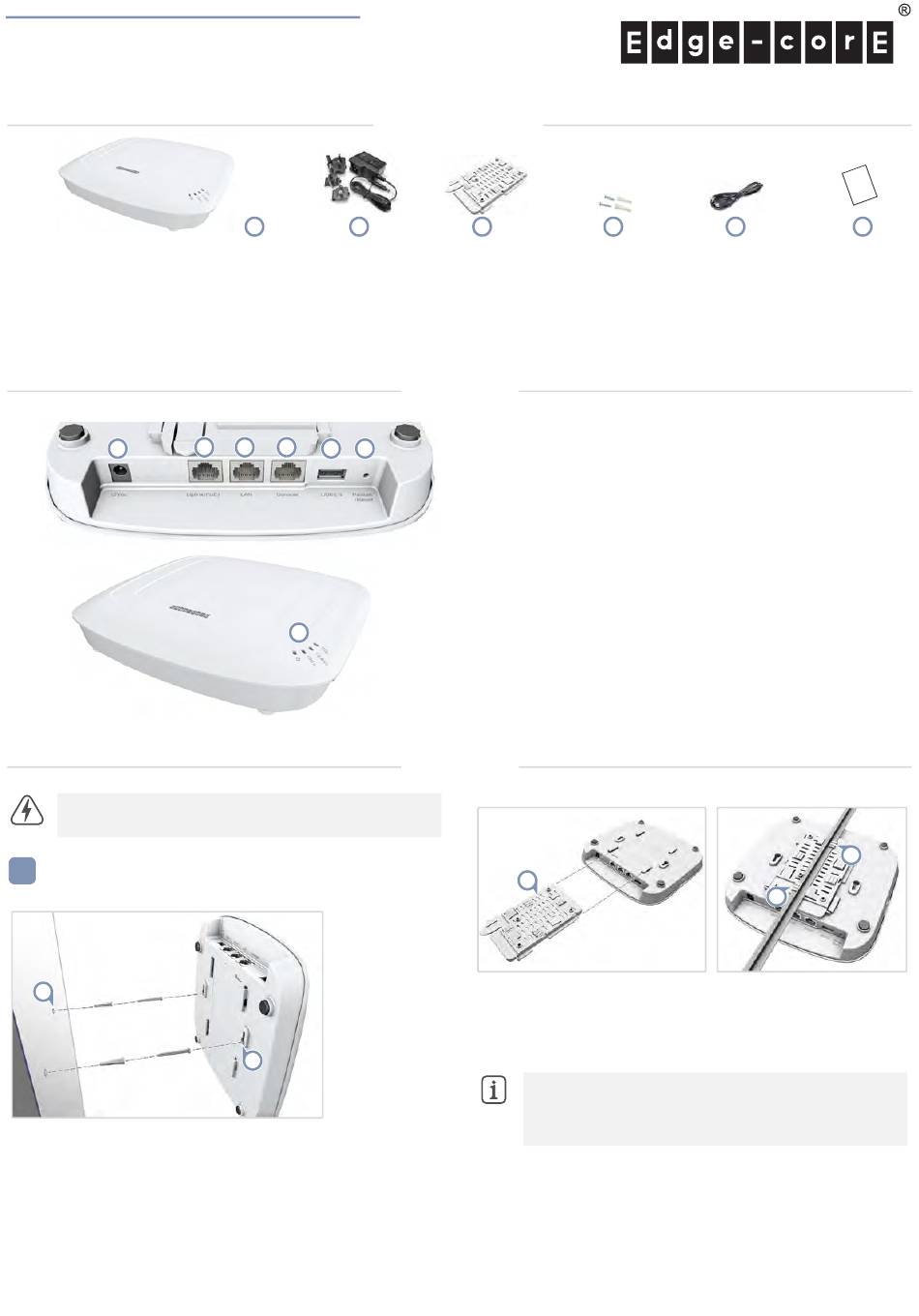

Quick Start Guide

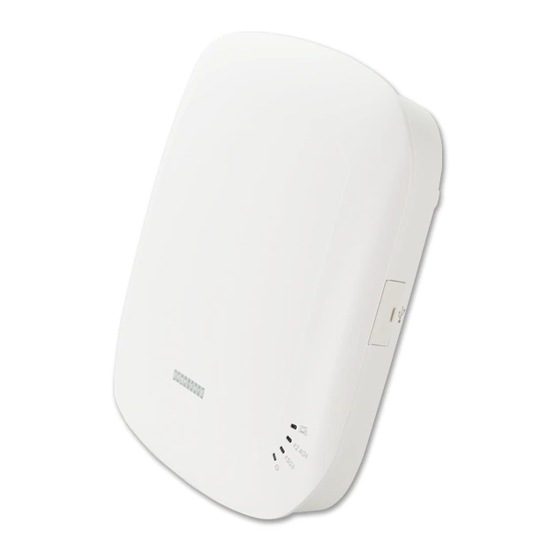

Dual-Band Wi-Fi 6 Indoor Access Point
EAP102
1.
EAP102 access point
2.
AC power adapter with international socket converters
3.
Mounting bracket accessory
1
Warning:
For indoor use only. The access point, AC power
adapter, and all connected cables are not for outdoor use.
1
Mount the AP
a. Mounting on a Wall
1
1.
At the installation location on the wall, set two screws in the wall
128 mm (5.0 in.) apart. Use the wall plugs and screws included in the
screw kit.
2.
Slide the AP's wall mounting slots down onto the screws so that the
unit is secure.
www.edge-core.com
1
2
2
3
4
5
6
7
2
Package Contents
3
4.
Screw kit—2 screws and 2 plugs
5.
(Optional) Console cable—RJ-45 to DB-9
6.
QR code card
Overview
1.
12 VDC power input
2.
Uplink(PoE) Port: 2.5Gbps connection to 802.3at PoE LAN device.
3.
LAN Port: 2.5Gbps connection to LAN devices.
4.
Console port
5.
USB 2.0 port (reserved for future use)
6.
Restart/Reset button:
A quick press restarts the system.
A 5 second press resets to factory defaults.
7.
System LED Indicators:
Uplink(PoE): On (link), Blinking (traffic)
2.4G: On (radio on), Blinking (traffic)
5G: On (radio on), Blinking (traffic)
Status: On (power OK), Blinking (boot up)
Installation
b. Mounting on a T-Bar
1
1.
Slide the bracket accessory onto the base of the AP until it clicks into
its locked position.
2.
Position the ceiling-mount clip holders on either side of the T-bar,
and then turn the AP until the two clips lock it to the T-bar.
Note:
suspended ceiling T-bars. The position illustrated above is for
24.5 mm bars. Use the position at a 90 degrees angle for
15 mm bars.
– 1 –
4
5
The AP mounting supports two different sizes of
6
2
2
E122020-CS-R01
