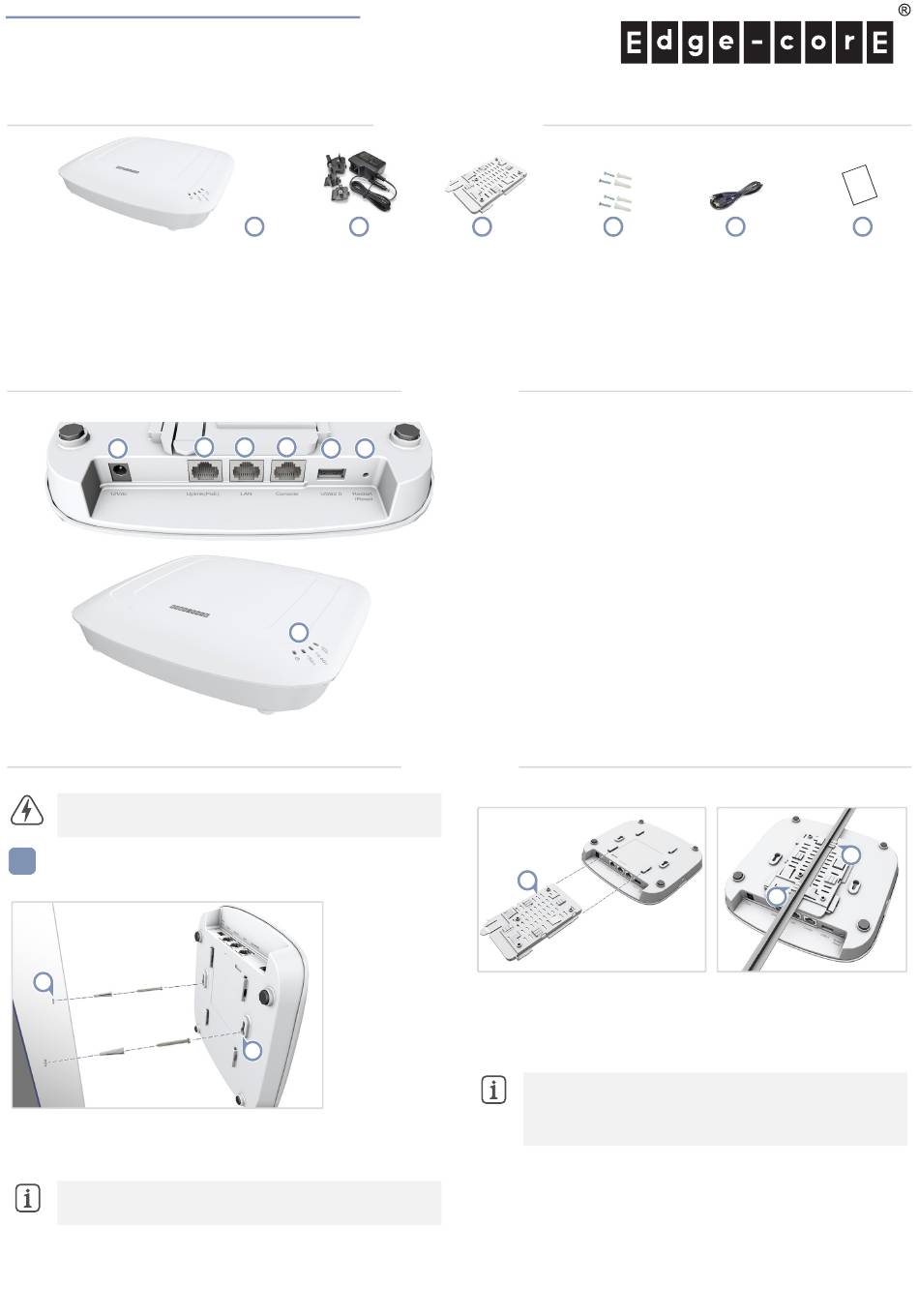

Edge-Core EAP102 Quick Start Manual

Quick Start Guide
Dual-Band Wi-Fi 6 Indoor Access Point
EAP102

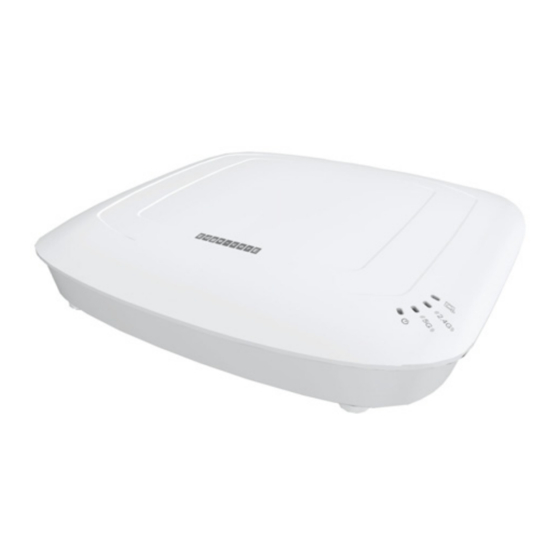

1. EAP102 access point
2.
AC power adapter with international socket converters
3.
Mounting bracket accessory
1
Warning: For indoor use only. The access point, AC power
adapter, and all connected cables are not for outdoor use.
1

Mount the AP

a. Mounting on a Wall

1
1. At the installation location on the wall, set two screws in the wall
128 mm (5.0 in.) apart. Use the wall plugs and screws included in the
screw kit.
Note: Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
2. Slide the AP's wall mounting slots down onto the screws so that the
unit is secure.
www.edge-core.com
1 2
2 3 4
5 6
7
2

Package Contents

3
4. Screw kit—4 screws and 4 plugs
5.
Console cable—RJ-45 to DB-9 (TIP SKU only)
6.
QR code card
Overview
1.
12 VDC power input
2.
Uplink(PoE) Port: 2.5Gbps connection to 802.3at PoE LAN device.
3.
LAN Port: 2.5Gbps connection to LAN devices.
4. Console port (reserved for future use)
5.
USB 2.0 port (reserved for future use)
6. Restart/Reset button:
■
A quick press restarts the system.
■
A 5 second press resets to factory defaults.
7. System LED Indicators:
■ Uplink(PoE): On (link), Blinking (traffic)
■
2.4G: On (radio on), Blinking (traffic)
■
5G: On (radio on), Blinking (traffic)
■
Status: On (power OK), Blinking (boot up)
Installation

b. Mounting on a Suspended Ceiling T-Bar

1
1. Slide the bracket accessory onto the base of the AP until it clicks into
its locked position.
2. Position the ceiling-mount clip holders on either side of the T-bar,
and then turn the AP until the two clips lock it to the T-bar.
Note:
suspended ceiling T-bars. The position illustrated above is for
24.5 mm bars. Use the position at a 90 degrees angle for
15 mm bars.
– 1 –
4 5
The AP mounting supports two different sizes of
6
2
2
E122021-CS-R02
