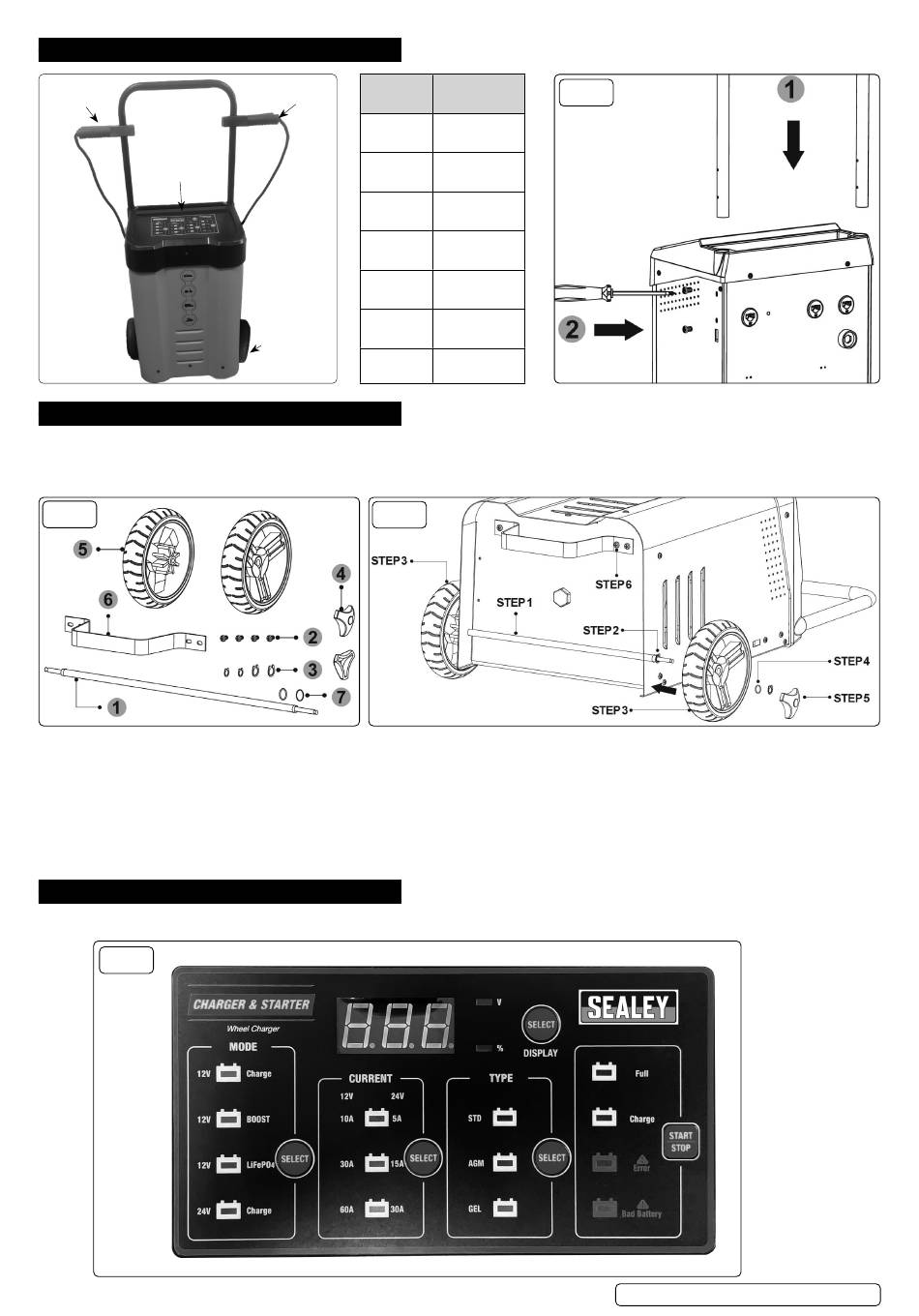

4. FEATURES
Red positive
clamp
Control panel
5. ASSEMBLY
5.1. HANDLE INSTALLATION (fig.1)
5.1.1. Insert the handles into the two holes on both sides of the storage slot.
5.1.2. Find the four holes on two sides of the charger, tighten the screws, and make sure that the screws completely secure the handle.
FIG.2
5.2. WHEEL INSTALLATION (fig.2 and fig.3)
5.2.1. Pass the axle through the housing.
5.2.2. Snap the big circlips onto both sides of the axle near the housing.
NOTE: Make sure the circlips are properly positioned in the grooves.
5.2.3. Slide the wheels onto the axle.
5.2.4. Slide the backup rings onto both ends of the axle. Snap the small circlips onto the end of the axle on both sides.
5.2.5. Push the hubcaps into the center of the wheels.
5.2.6. Secure the foot stand using screws.
6.

OPERATION

6.1.

DISPLAY PANEL

FIG.4
© Jack Sealey Limited
Black negative
PART
clamp
NUMBER
1
2
3
4
5
6
Wheel
7
FIG.3
Original Language Version
NAME
FIG.1
Axle
Screws x 4
Circlip x 4
Hubcap x 2
Wheel x 2
Stand
Washer x 2
SUPERSTART200D Issue 2 24/04/24
