6.2. HOW TO CONNECT
6.2.1. The charger's output leads have color-coded battery clips (RED-POSITIVE and BLACK- NEGATIVE). Determine which post of battery
is grounded (connected) to the chassis.
6.2.2. The battery terminal not connected to the chassis has to be connected first. The other connection is to be made to the chassis, remote
from the battery and fuel line. The battery charger is then to be connected to the supply mains.
6.2.3. After charging, disconnect the battery charger from the mains supply. Then remove the chassis connection and then the battery
connection.

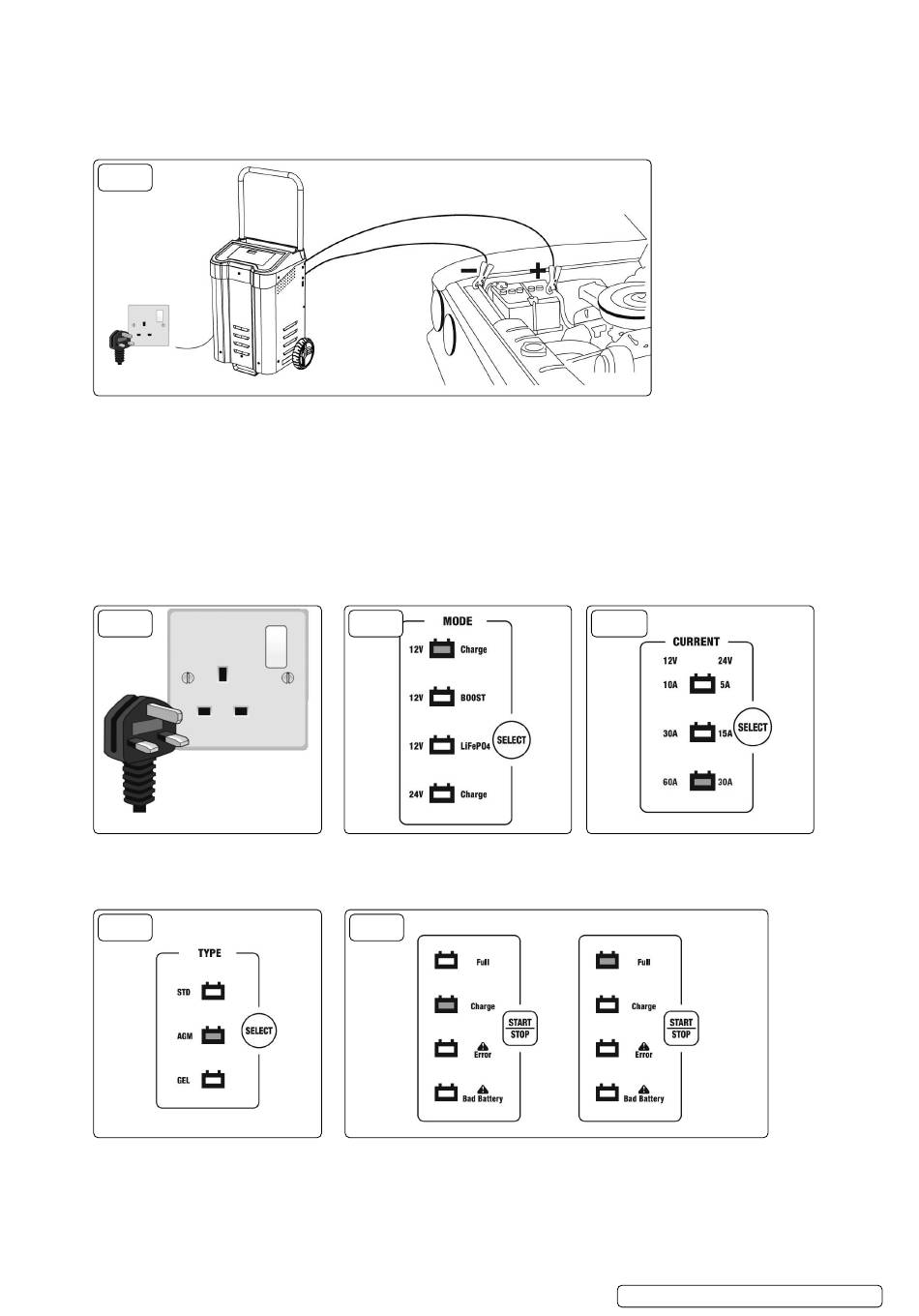

FIG.5
6.3. IF NEGATIVE POST IS GROUNDED TO CHASSIS
6.3.1. Connect the red clamp to the battery's positive pole.
6.3.2. Connect the black clamp to the vehicle chassis remote from the fuel pipe and the battery.
6.3.3. Connect the charger to the wall socket.
6.4. IF POSITIVE POST IS GROUNDED TO THE CHASSIS
6.4.1. Connect the black clamp to the battery's negative pole.
6.4.2. Connect the red clamp to the vehicle chassis remote from the fuel pipe and the battery.
6.4.3. Connect the charger to the wall socket.
When disconnecting charger, disconnect AC cord first, remove clamp from vehicle chassis, and then remove clamp from battery terminal.
9
DO NOT charge the battery while the engine is operating.
8
6.5. HOW TO CHARGE LEAD ACID BATTERIES
FIG.6
Connect the battery and AC power.
The display shows the battery's
voltage.
FIG.9
Press the button to select battery type
(STD / AGM / GEL).
© Jack Sealey Limited
FIG.7
Press the button to select charging
voltage (12V / 24V).
FIG.10
Press "START / STOP" button to start charging and the "Charge" light
will turn orange. When the battery is fully charged, the "Full" light will
turn green.
Original Language Version
FIG.8
Press the button to select charging
current (12V 10A / 30A / 60A, 24V 5A /
15A / 30A).
SUPERSTART200D Issue 2 24/04/24
