Microphone Cord Termination - Lectrosonics UM300B Operating Instructions Manual

1
5
2 3
VIEW FROM SOLDER
SIDE OF PINS
Note: This termination is required on VHF transmitters and will still work fine on UHF transmitters.
10

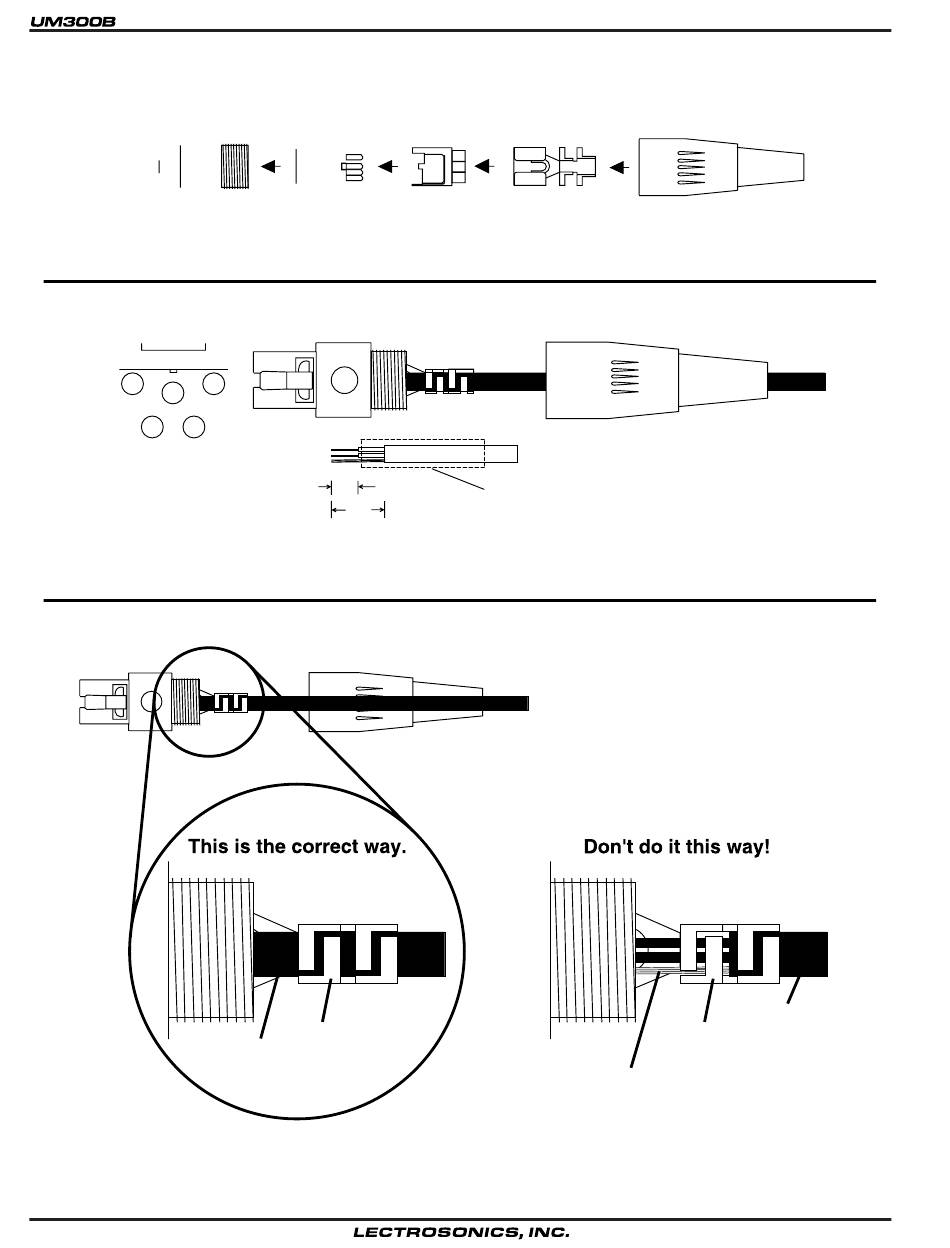

MICROPHONE CORD TERMINATION

TA5F Connector Assembly
4
0.15"
0.3"
Mic Cord Stripping Instructions
Crimp
Rubber Tabs
Insulation
Heatshrink
Tubing
Caution!
Do not allow the shield wire to touch any
metal part of the connector shell.
The shield wire is the antenna on VHF
models and poor operating range will result.
Shield Wire
Rubber
Insulation
Crimp
Tabs
