UM400
When wiring the connector, do not use the connector body for any electrical connections. A common mistake is to use the
connector body as an audio ground. The connector body is already used as an RF ground on VHF models and no other use
1
5
2 3
VIEW FROM SOLDER
SIDE OF PINS
This is the correct way.
This termination is required on VHF transmitters and will still work fine on UHF transmitters.
10

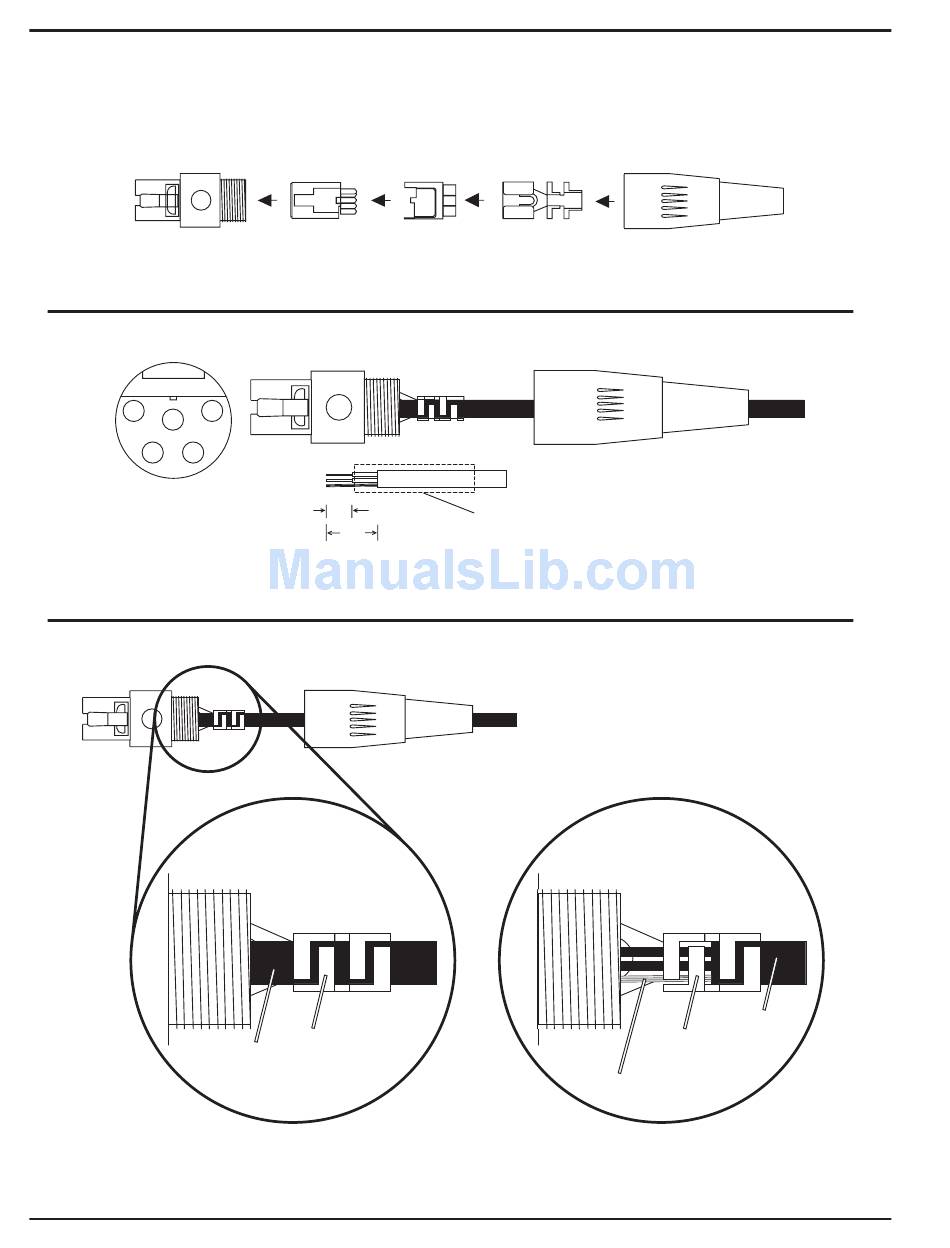

MICROPHONE CORD TERMINATION

TA5F Connector Assembly
4
0.15"
0.3"
Mic Cord Stripping Instructions
Crimp
Rubber Tabs
Insulation
LECTROSONICS
Caution
is permitted.
Heatshrink
Tubing
Caution!
Do not allow the shield wire to touch any
metal part of the connector shell.
The shield wire is the antenna on VHF
models and poor operating range will result.
Don't do it this way!
Shield Wire
Note
®
Rubber
Insulation
Crimp
Tabs
