UM450
Microphone Cord Termination
Caution: When wiring the connector, do not
use the connector body for any electrical
connections. A common mistake is to use the
connector body as an audio ground. The
connector body is already used as an RF
ground on VHF models and no other use is
permitted.

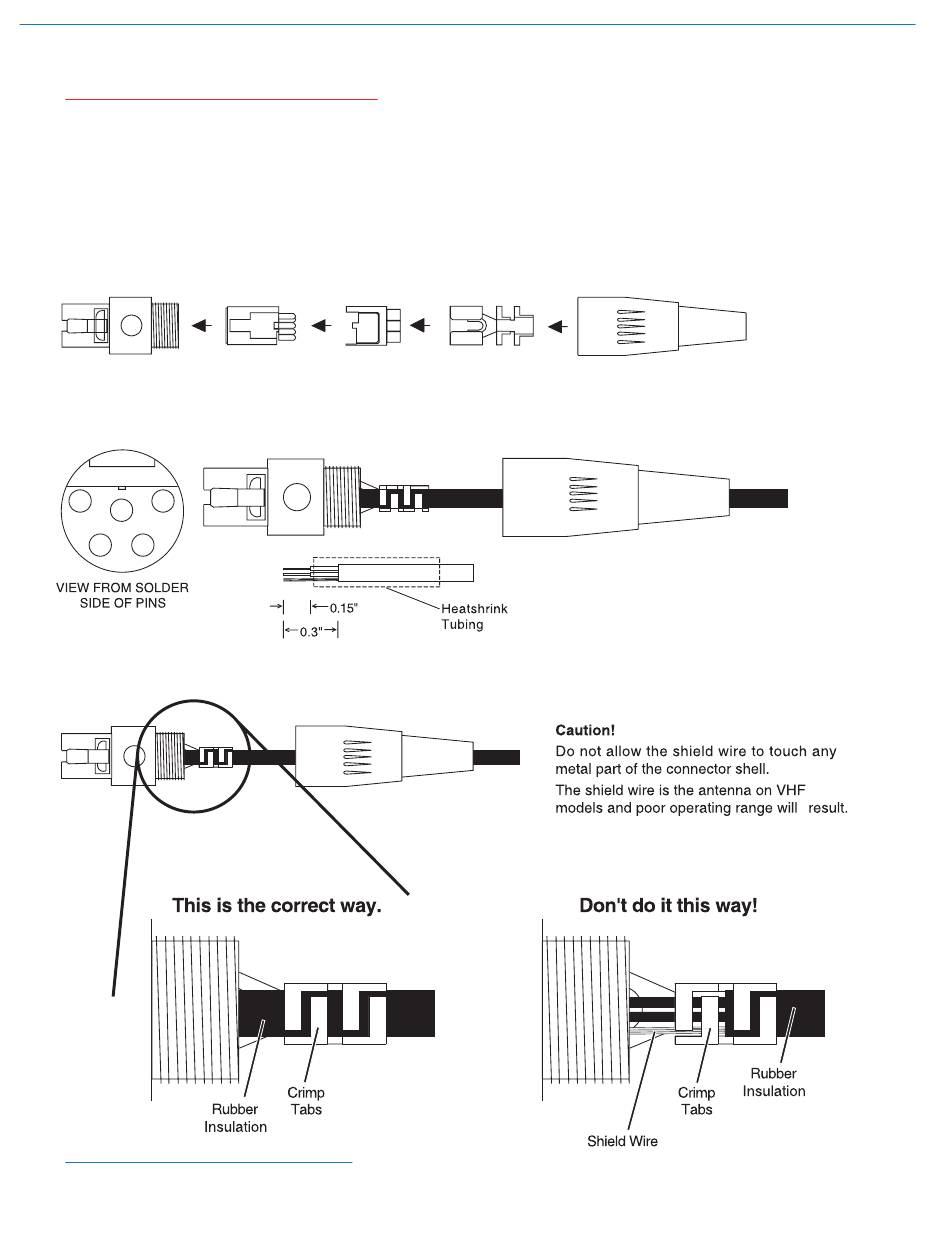

TA5F Connector Assembly
Mic Cord Stripping Instructions
1
4
5
2
3
NOTE: This termination is required on VHF
transmitters and will still work fine on UHF
transmitters.
12
LECTROSONICS, INC.
