Options for Drain Set Up

1

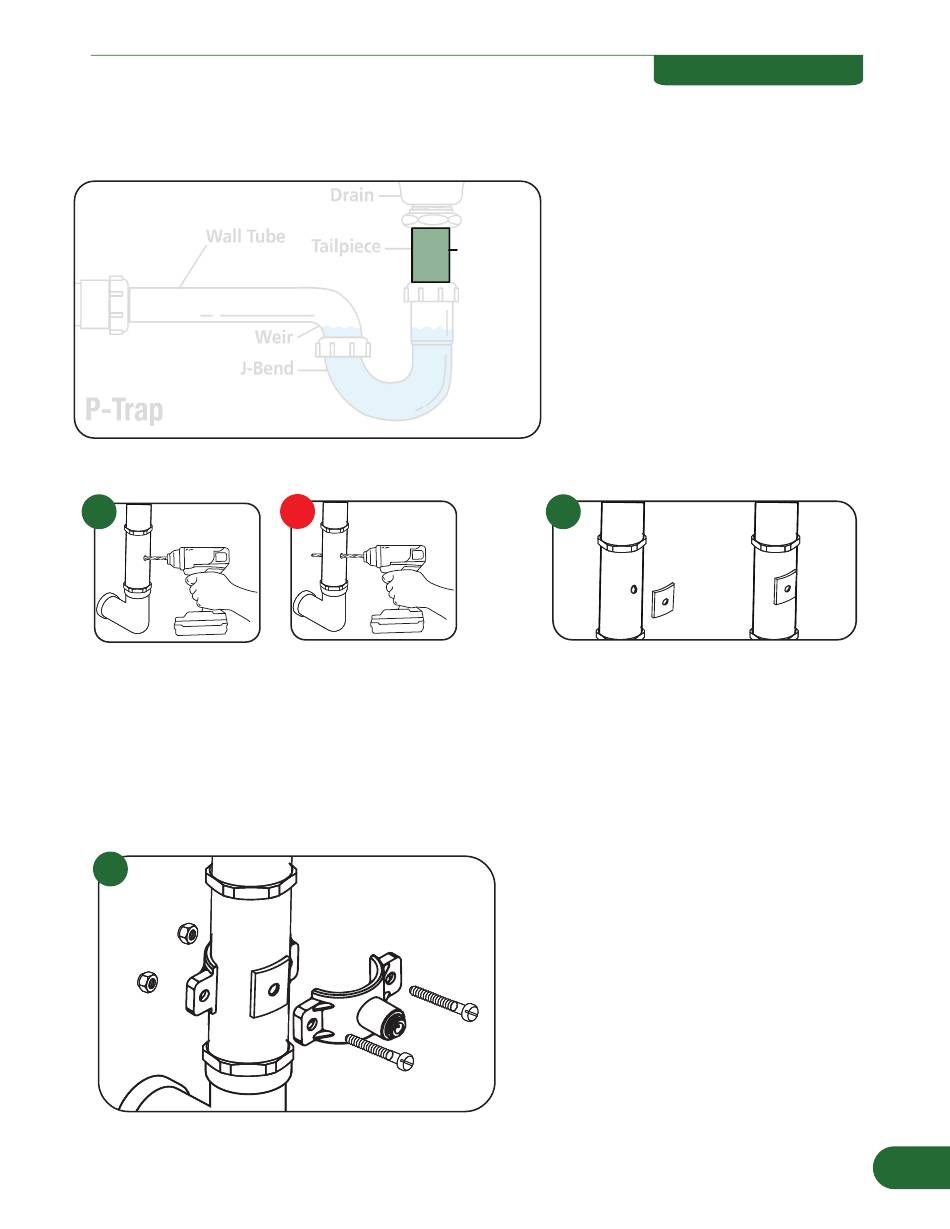

The Drain Clamp will be installed above the
P-Trap. Drill a 1/4-in. hole straight into the side
of the drain pipe.
DO NOT drill through both sides of the drain
pipe. Reference Recommended Drain Clamp
Location image.
3
Recommended
Drilling Location
X
DRAIN SET UP OPTION 1
Option 1
(Recommended)
To remove all contaminates and
waste water from the Water
Machine, you will need to set up
the drain pipe.
2
Remove the paper backing and apply
the sticky side of the seal to the pipe,
lining up the holes.
Next, attach the Drain Clamp to the
drain pipe, using the included Nuts and
Bolts, ensuring that the threaded
opening of the Drain Clamp sits over
the 1/4-in. hole in the drain pipe. Make
sure the Nuts and Bolts on the Drain
Clamp are tight and that the Drain
Clamp cannot move freely.
