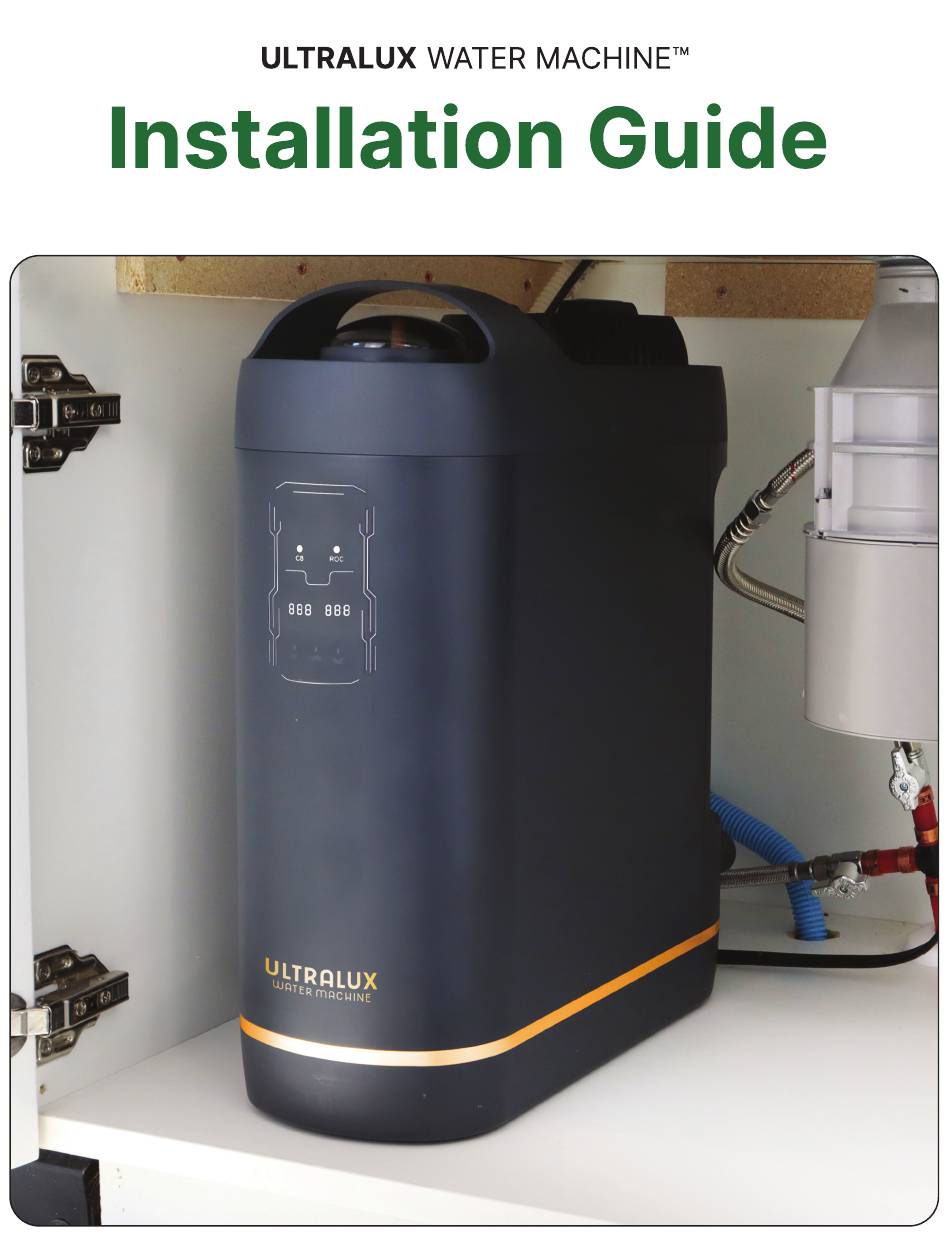

UltraLux Water Machine Installation Manual

Hide thumbs Also See for Water Machine:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Water Machine and is the answer not in the manual?

Questions and answers

Related Manuals for UltraLux Water Machine

Summary of Contents for UltraLux Water Machine

  • Page 2: Table Of Contents

    9 Source Water Set Up ..........pg 10 Options for Drain Set Up .......... pg 13 Installation of the UltraLux Water Machine ....pg 16 Turning on the UltraLux Water Machine pg 19 and Installation Inspection ........pg 21 Enjoy Your UltraLux Water Machine ......

  • Page 3: Welcome

    Congratulations on purchasing the UltraLux Water Machine, the superior multi-filtration system for all homes! This installation guide will be your companion in taking full advantage of the UltraLux Water Machine, and will simplify the process through a step-by-step walkthrough. Video Installation Guide...

  • Page 4: Items You May Need (Not Included)

    TOOLS NEEDED (NOT INCLUDED) Tools Needed (Not Included) 1” drill bit Masking Tape Adjustable crescent wrench Drill ¼” drill bit Slip Joint Plier Towel Phillips screwdriver Bucket/Bowl Drill Slip Joint Plier (to stabalize water valve when loosening/tightening) 1” drill bit (for Faucet hole if there isn't a pre-existing hole to use) Towel ¼...

  • Page 5: Package Contents

    WHAT’S INCLUDED PART 1 UltraLux Water Machine Parts (Included) UltraLux Water Machine Spare/Optional Parts (Included)
  • Page 6 WHAT’S INCLUDED PART 2 UltraLux Water Machine Parts (Included) ¼-in. to ¼-in. Quick Connect UltraLux Water Machine ¼-in. to ¼-in. Quick Connect Check a. ¼-in. Machine Valve Plugs (x2) Valve b. ⅜-in. Machine Valve Plugs (x2) ⅜-in. Diverter Valve Reducers Power Cord a.

  • Page 7: Planning & Preparation

    PLANNING & PREPERATION PART 1 Planning and Preperation Before installing the UltraLux Water Machine, prepare and plan by following these steps: Placement Identify the desired location to house the Water Machine and make sure it will fit. Locate Power Outlet A.
  • Page 8 Faucet Location Ensure you have a plan for where your UltraLux Water Faucet will go. Common places are: A hole for a pre-existing secondary A hole from a pull out sprayer.
  • Page 9 PLANNING & PREPERATION PART 3 WARNING: Do not drill your counter without consulting or hiring a professional. ¼-in. hole drilled for chord 1-in. hole drilled for faucet Top View Final View Locate Main Water Shut Off Locate the Main Water Shut Off Valve in your home. NOTE: This is only as a precautionary measure in the event that your Cold Water Valve gets damaged and you need to turn off your Main Water Valve to stop leaking water.

  • Page 10: Installation Of The Ultralux Water Faucet

    INSTALLATION OF ULTRALUX WATER FAUCET Installation of UltraLux Water Faucet The UltraLux Faucet will be the dispenser for your Filtered Water and UltraLux Water. Follow these steps to ensure proper installation. 1. Attach the UltraLux Faucet Spout to Faucet Base 2.

  • Page 11: Source Water Set Up

    SOURCE WATER SET UP Source Water Set Up The source water is the water that will be filtered and transformed into the UltraLux Water. Follow these steps to ensure proper installation. Disconnect the cold water Prepare a towel and/or a...
  • Page 12 SOURCE WATER SET UP Next, screw the female end of the cold waterline onto the male end of the Diverter Valve, and tighten with a crescent wrench. Unscrew the Small Diverter Valve Nut from the smallest end of the Diverter Valve. Then place the small Diverter Valve Nut over the end of the end of the 3/8-in.
  • Page 13 SOURCE WATER SET UP TURNED TO ON POSITION KITCHEN FAUCET LINE DIVERTER VALVE COLD WATER VALVE Finished view of the cold water line connected to the wall rather than the floor.

  • Page 14: Options For Drain Set Up

    DRAIN SET UP OPTION 1 Options for Drain Set Up Option 1 (Recommended) Recommended Drilling Location To remove all contaminates and waste water from the Water Machine, you will need to set up the drain pipe. Remove the paper backing and apply The Drain Clamp will be installed above the the sticky side of the seal to the pipe, P-Trap.
  • Page 15 DRAIN SET UP OPTION 1 Push the 1/4-in. Red PEX Pipe from the Drain Water Port into the 1/4-in. Quick Connect end of the Drain Clamp. Gently tug on the end of the Red Pipe to ensure it’s properly connected. Drain Machine PEX Pipe...
  • Page 16 ALTERNATIVE DRAIN OPTIONS Alternative Drain Options If Option 1 cannot be done, there are 3 alternative methods to properly run the Red Drain Pipe up into your sink basin by using the 2 Quick Connect Elbows and Pipe Cutter, that are included: Drill a hole next to the main faucet of the Run the Red Pipe through the crack in the sink, and run the Red Pipe out from it to drain...

  • Page 17: Installation Of The Ultralux Water Machine

    UltraLux Water Machine. • Begin by removing all 4 Quick Connect Port Plugs from the back of the UltraLux Water Machine by using Quick Connect Release Tool. Do so by depressing the colored collars, ensuring they are depressed all of the way before gently pulling out the Plugs. It is normal for some water to dribble out in this process.
  • Page 18 Connecting the UltraLux Water Machine When connecting each PEX Pipe, use maximum force to push the tubes into each port in the back of the Water Machine. To begin connecting your Water Machine to your sink, follow steps A-C to save space and prevent leaks.
  • Page 19 INSTALLING THE ULTRALUX WATER MACHINE • Finally, as a suggestion, insert the Quick Connect Clamps into all Quick Connect fittings anywhere you can. IMPORTANT The pipes need to go into the Water Machine straight on. If they come into the Machine at an angle, it will most likely cause leaking.

  • Page 20: Turning On The Ultralux Water Machine And Installation Inspection

    INSTALLATION INSPECTION CHECKLIST Turning on the UltraLux Water Machine and Installation Inspection Turning on the UltraLux Water Machine and Installation Inspection Slowly turn the cold waterline back on. NOTE: If it is not already, turn the Diverter Valve into the ‘On’ position. (See step 11 of the Source Water Set Check for leaks around the Ports, located at the back of the Water Machine.
  • Page 21 Fridge Connection the same way you would use it for an Ice Maker. There are no extra included pipes for connecting the Water Machine to your other appliances, you must use the pre-existing pipes or buy more from a hardware store.

  • Page 22: Enjoy Your Ultralux Water Machine

    Enjoy Your UltraLux Water Machine Congratulations! You have finished installing your UltraLux Water Machine and are ready to experience the benefits of clean, hydrating water! If you have questions about the installation process, please do not hesitate to reach out to our team at: support@ultraluxhealth.com or call (385) 360-9755 or Interna- tionally Toll Free (855) 479-4149.

This manual is also suitable for:

Ulwm-1
