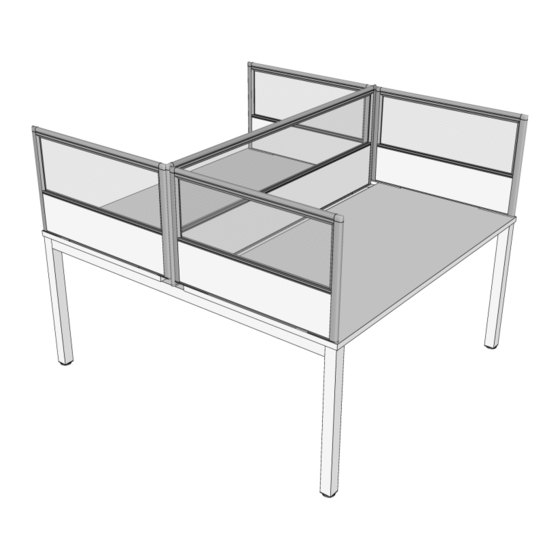

- Page 1 Axis DSD End Return Screen Installation Guide Axis/Anvil Installation Guide www.workspace48.com...
- Page 2 Axis DSD End Return Screen Installation Guide ** #7 Bracket is wider to cover gap between work surface and screen. ** * #7 Bracket is 7.25" short and needs to be used. Step 1: Line up screens on desk to confirm where brackets will Step 2: Slide screens onto brackets.
- Page 3 Axis DSD End Return Screen Installation Guide HWK-101 (Wood screw fastens L- Bracket to laminate part of spine screen) HWK-151 (Metal screw fastens L- Bracket to metal part of return screen) Step 3: Fasten the L-Bracket provided to the Return and Spine screens. The bracket will be fastened to spine screen using HWK-101 provided and to the return screen with HWK-151.
