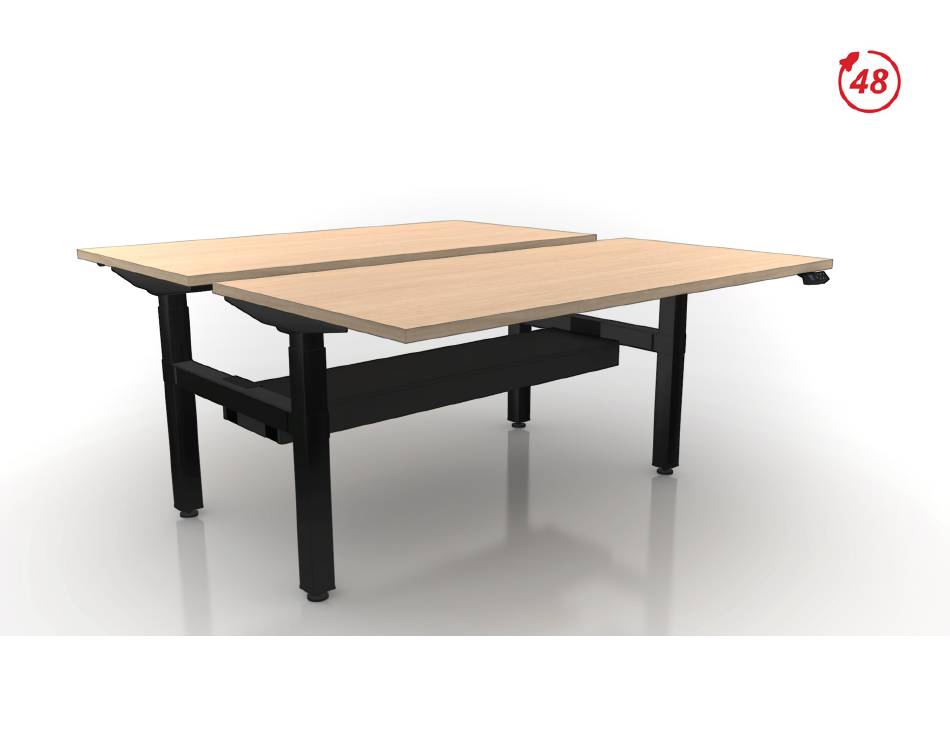

- Page 1 Agile Plus Doublesided Height Adjustable Desk Installation Guide www.workspace48.com Agile Plus Doublesided Installation Guide...
- Page 2 Agile Plus Doublesided Height Adjustable Desk Installation Guide Recommended 2 persons for install WORKSURFACE SUPPORT RAIL FRAME CROSSBAR SPACING BLOCKS www.workspace48.com Agile Plus Doublesided Installation Guide...
- Page 3 Agile Plus Doublesided Height Adjustable Desk Installation Guide First identify each part. The blocks in the crossbars (part 6) are used Slide the cross rails (A) over the preinstalled bolts and slide into place for spacing. as indicated by the arrows above. Tighten the screws firmly. Only lightly tighten the screws on the rail so that the length can be adjusted easily.
- Page 4 Agile Plus Doublesided Height Adjustable Desk Installation Guide Insert an adjustable foot into each leg end and tighten the four bolts. Screw Discard the spacers and stand the frame on its feet. the foot into each leg end. Cable Tray and power option Fasten the support rail (B) to the frame using two M8x16 bolts.
- Page 5 Agile Plus Doublesided Height Adjustable Desk Installation Guide Fasten the power/data plate into position using the bolts and nuts If the electric configuration is for a 4-pod or more, install the Agile provided. Install the Duplex outlets and wiring. Follow the Electrical Plus Cable Tray Bridge and Cover between the desks to support the Installation Guide provided.
- Page 6 Agile Plus Doublesided Height Adjustable Desk Installation Guide When the worksurfaces are in place, fasten them using Ø5x17 mm Screw the rails to the worksurface using the Ø4.5x45 mm screws, screws in the support rail below the worksurface. putting a plastic washer (part 2) between the rail and the worksurface.
- Page 7 Agile Plus Doublesided Height Adjustable Desk Installation Guide Plug the power cable into the control box securing excess cable with a Connect both leg motors to the control box. cable clip and a Ø4.5x16 screw. Do not connect to the power outlet.
- Page 8 Agile Plus Doublesided Height Adjustable Desk Installation Guide Level the table by adjusting the levelling feet as needed Connect the desk to a power outlet. Cable Cobra option If using a Cable Cobra as a conduit to house the wires from the cable tray up to the worksurface, install it now.
