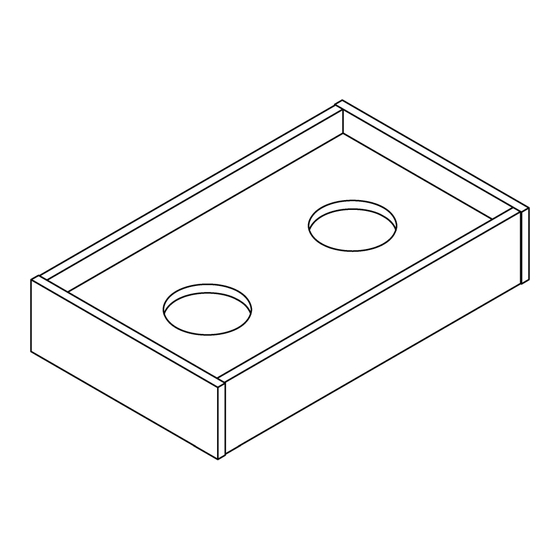

Axis Planter for Tambour

Assembly Instruction

ITEM No. AXPBOX200

PAGE

Need help?

Do you have a question about the Axis Planter for Tambour AXPBOX200 and is the answer not in the manual?

Page 1 Axis Planter for Tambour Assembly Instruction ITEM No. AXPBOX200 PAGE...
Page 2 Axis Planter for Tambour Assembly Instruction Incorrect Correct The arrow direction front The turning direction ° aUachi«, PAGE...
Page 3: Parts List
6*35 Cam Bol t-16 @ 8*30 Dowel Pin-12 @ (%") Cam Cover-16 Axis Planter for Tambour Assembly Instruction PARTS LIST QTY. ITEM DESCRIPTION QTY. ITEM DESCRIPTION Side panel 6*35 Cam Bolt Side panel 8*30 Dowel pin (¾") Cam Cover Bottom panel Pre-installed parts PAGE...
Page 4 Axis Planter for Tambour Assembly Instruction STEP 1 Preparation for Bottom panel G, side panel 0,01 1 � Insert cam bolts@) and dowel pins@ into panels G,O and 01 as illustrated above. PAGE...
Page 5 Axis Planter for Tambour Assembly Instruction STEP 2 Bottom panel G , side panel 0 assembly. 1, Insert cam bolts@ and dowel pins@) on panel O into cams on panel G and tighten in a clockwise direction as illustrated above. STEP 3 Side panel 0,01 assembly.
Page 6 Axis Planter for Tambour Assembly Instruction STEP 4 6 PCS Transparant plastic sticker I PAGE...
Page 7 Axis Planter for Tambour Assembly Instruction Remove all QC and panel labels and wipe clean using a damp cloth and general household cleaner. PAGE...
