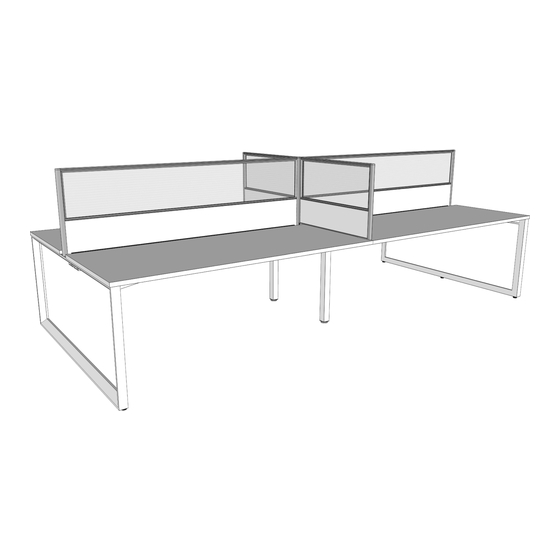

- Page 1 Anvil System Straightline Installation Guide Tools required: Powered Screwdriver, Rubber Mallet www.workspace48.com...
- Page 2 www.workspace48.com...
- Page 3 Anvil System Straightline Installation Guide Assemble frames & rails together, loosely (1 turn from tight). Assemble screen brackets to frame, loosely (1 turn from tight). Desk Top Screw Desk Side Rail Fix desk top with 5mm overhang over metal frame. Where desktops butt together, Screw fix the Comseal cable brushes to the base screen.
- Page 4 Anvil System Straightline Installation Guide Slide centre screen pole over bracket. Carefully remove end seal on centre screens Attach centre screen end seal and top cap with soft non-marking mallet. & fit screen between end brackets & screw self tappers to fix screen tightly.
- Page 5 Anvil System Straightline Installation Guide Remove return screen and fix bracket in place. As an alternative to screws, use 3M Remove return screen end seal, and attach screen to bracket with self tapper double sided tape to fasten return screen bracket to desk top.
- Page 6 Anvil System Straightline Installation Guide If for whatever reason you have to remove the top seal, then to refit, slightly arc in Fit power/data rails with screws into frame rail. the middle, placing the 2 ends into location, & gently tap down.
- Page 7 Anvil System Straightline Installation Guide www.workspace48.com...
