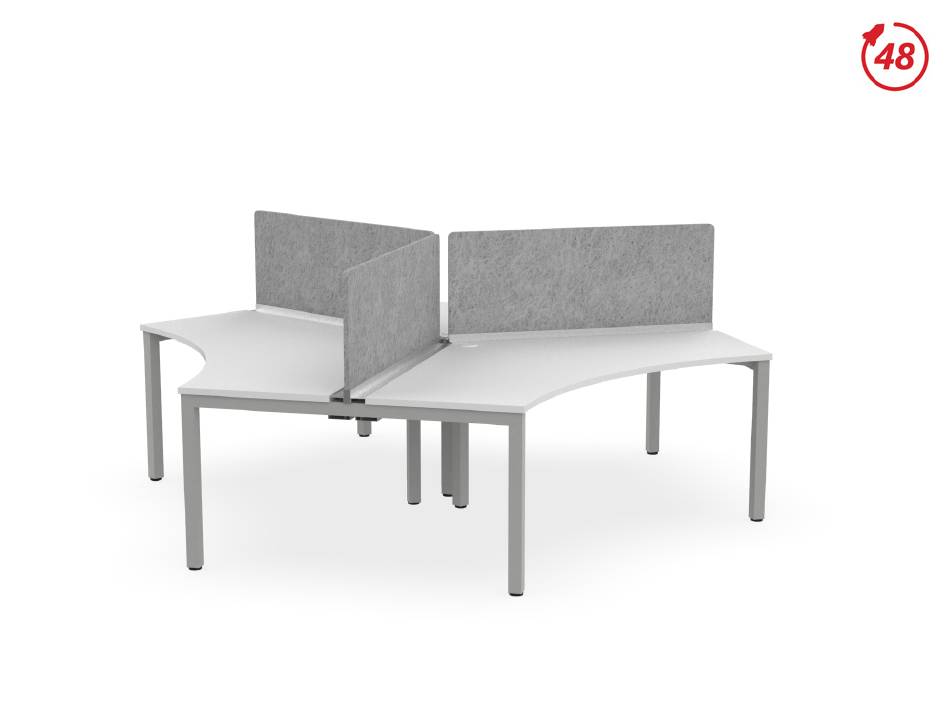

- Page 1 Axis or Anvil Shared Workstation, 120 degree, 3-pod, with Devise Screens Installation Guide www.workspace48.com Axis or Anvil Installation Guide...
- Page 2 Axis or Anvil Shared Workstation, 120 degree, 3-pod, with Devise Screens Installation Guide Recommended 2 persons for install DEVISE SPINE SCREEN SPINE END CAP CHANNEL EXTRUSION WORKSURFACE ECLIPSE TRAY TIDY DATA/POWER PLATE DEVISE END SUPPORT RAIL DEVISE MID SUPPORT SHARED END LEG...
- Page 3 Axis or Anvil Shared Workstation, 120 degree, 3-pod, with Devise Screens Installation Guide Extension Option Assemble the frames and rails together. Leave the bolts of the frame If the configuration is more than 3 pods, an end leg will be replaced by loose, one turn from tight.
- Page 4 Axis or Anvil Shared Workstation, 120 degree, 3-pod, with Devise Screens Installation Guide Devise Screen Option Devise Screen Option If using our Devise spine screens, install the two end brackets and the two Fasten the screen extrusion to the supporting brackets using the bolts middle supporting brackets between each facing pair of desks.
- Page 5 Axis or Anvil Shared Workstation, 120 degree, 3-pod, with Devise Screens with Devise Screens Installation Guide Eclipse Tray Tidy Option Adjust the feet so the desk pods are level and stable. Fully tighten all If using our Eclipse Tray Tidy covers, first place the Tray Tidy along the rails and frame bolts.
- Page 6 Axis or Anvil Shared Workstation, 120 degree, 3-pod, with Devise Screens Installation Guide Cable Trays Devise Return Screen Option Attach the cable trays to the side of the frame using the bolts provided. If using our Devise return screens, install them now. Follow the Devise Return Screen Installation Guide.
