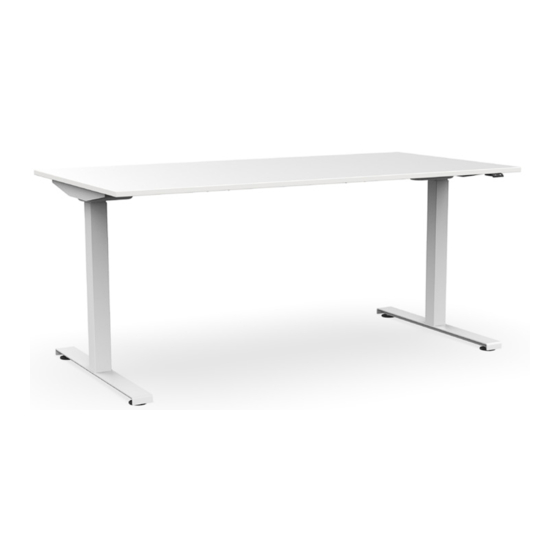

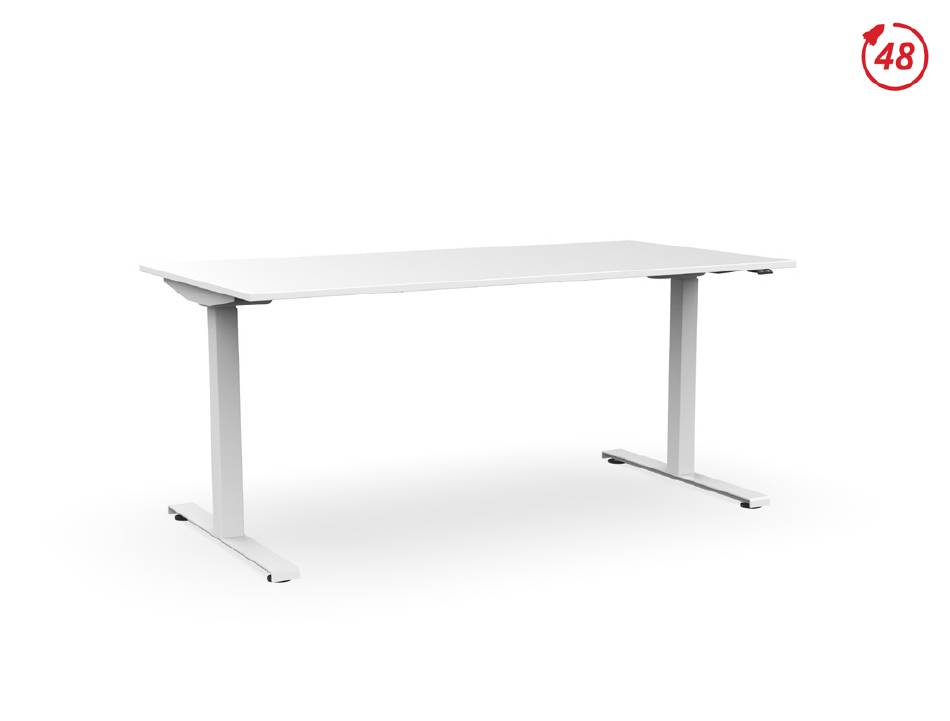

- Page 1 Agile Plus - Single Desk Installation Guide www.workspace48.com Agile Plus Installation Guide...
- Page 2 Agile Plus - Single Desk Installation Overview Recommended 2 persons for install • To prevent possible scratches or damage, assemble the Desk upside down on a soft surface such as a blanket, carpet or packaging. • WARNING: Plugging into your electrical...
- Page 3 Once the width has been adjusted, tighten the screws firmly. Fasten the support rail (B) to the frame using M8x16 bolts (3). Fasten the foot to the leg column using the M6x18 (1) bolts and insert the levelling glides (2). www.workspace48.com Agile Plus Installation Guide...
- Page 4 NOTE: Ensure you use the correct length for each location. (12) Secure the control box to the worksurface using the Ø4.5x16 (9) screws. Plug the power cable into the control box securing excess cable with a cable clip (12) and a Ø4.5x16 (9) screw. www.workspace48.com Agile Plus Installation Guide...
- Page 5 Tie up any loose cables using the cable ties as shown. (11) Connect the handset to the control box. Fasten the handset to the worksurface using Ø4.5x16 (9). Secure the cable using provided clips (8). www.workspace48.com Agile Plus Installation Guide...
- Page 6 Agile Plus Installation Guide Rotate the table onto the feet. Level the table by adjusting the levelling feet as needed. Connect the desk to a power outlet. Installation complete! www.workspace48.com Agile Plus Installation Guide...
